Name: HS71900-C-T-P4S-UL
Brand: HFH
SKU: 10415639
Rating: 5 (14 reviews)

+49 3695 8521 0

This email address is being protected from spambots. You need JavaScript enabled to view it.

Mo. - Fr.: 07:00 - 15:00

HS719
HSS719

HS719

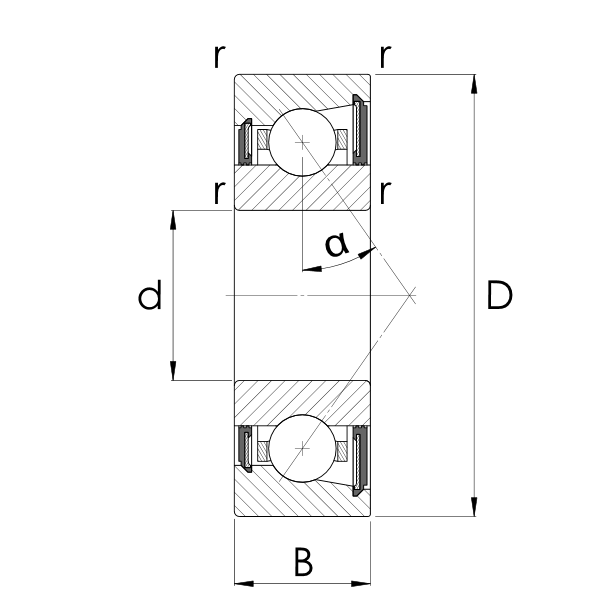

Highspeed spindle bearing HS719 - light serie

Spindl bearing HS719
Spindl bearing HS719
Spindl bearing HS719

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10415640	HS71900-E-T-P4S-UL	10.00	22.00	6.00
10415639	HS71900-C-T-P4S-UL	10.00	22.00	6.00
10415642	HS71901-E-T-P4S-UL	12.00	24.00	6.00
10415641	HS71901-C-T-P4S-UL	12.00	24.00	6.00
10415643	HS71902-C-T-P4S-UL	15.00	28.00	7.00
10415644	HS71902-E-T-P4S-UL	15.00	28.00	7.00
10415645	HS71903-C-T-P4S-UL	17.00	30.00	7.00
10415646	HS71903-E-T-P4S-UL	17.00	30.00	7.00
10415647	HS71904-C-T-P4S-UL	20.00	37.00	9.00
10415648	HS71904-E-T-P4S-UL	20.00	37.00	9.00
10431337	HS71905-C-T-P4S-UL	25.00	42.00	9.00
10431352	HS71905-E-T-P4S-UL	25.00	42.00	9.00
10431382	HS71906-E-T-P4S-UL	30.00	47.00	9.00
10431367	HS71906-C-T-P4S-UL	30.00	47.00	9.00
10431397	HS71907-C-T-P4S-UL	35.00	55.00	10.00
10431412	HS71907-E-T-P4S-UL	35.00	55.00	10.00
10431427	HS71908-C-T-P4S-UL	40.00	62.00	12.00
10431442	HS71908-E-T-P4S-UL	40.00	62.00	12.00
10431457	HS71909-C-T-P4S-UL	45.00	68.00	12.00
10431472	HS71909-E-T-P4S-UL	45.00	68.00	12.00
10431487	HS71910-C-T-P4S-UL	50.00	72.00	12.00
10431502	HS71910-E-T-P4S-UL	50.00	72.00	12.00
10431517	HS71911-C-T-P4S-UL	55.00	80.00	13.00
10431532	HS71911-E-T-P4S-UL	55.00	80.00	13.00
10431562	HS71912-E-T-P4S-UL	60.00	85.00	13.00
10431547	HS71912-C-T-P4S-UL	60.00	85.00	13.00
10431577	HS71913-C-T-P4S-UL	65.00	90.00	13.00
10431592	HS71913-E-T-P4S-UL	65.00	90.00	13.00
10431607	HS71914-C-T-P4S-UL	70.00	100.00	16.00
10431622	HS71914-E-T-P4S-UL	70.00	100.00	16.00
10431637	HS71915-C-T-P4S-UL	75.00	105.00	16.00
10431652	HS71915-E-T-P4S-UL	75.00	105.00	16.00
10431667	HS71916-C-T-P4S-UL	80.00	110.00	16.00
10431682	HS71916-E-T-P4S-UL	80.00	110.00	16.00
10431697	HS71917-C-T-P4S-UL	85.00	120.00	18.00
10431712	HS71917-E-T-P4S-UL	85.00	120.00	18.00
10431742	HS71918-E-T-P4S-UL	90.00	125.00	18.00
10431727	HS71918-C-T-P4S-UL	90.00	125.00	18.00
10431757	HS71919-C-T-P4S-UL	95.00	130.00	18.00
10431772	HS71919-E-T-P4S-UL	95.00	130.00	18.00
10431787	HS71920-C-T-P4S-UL	100.00	140.00	20.00
10431802	HS71920-E-T-P4S-UL	100.00	140.00	20.00
10431817	HS71921-C-T-P4S-UL	105.00	145.00	20.00
10431832	HS71921-E-T-P4S-UL	105.00	145.00	20.00
10431847	HS71922-C-T-P4S-UL	110.00	150.00	20.00
10431862	HS71922-E-T-P4S-UL	110.00	150.00	20.00
10431877	HS71924-C-T-P4S-UL	120.00	165.00	22.00
10431892	HS71924-E-T-P4S-UL	120.00	165.00	22.00
10431907	HS71926-C-T-P4S-UL	130.00	180.00	24.00
10431922	HS71926-E-T-P4S-UL	130.00	180.00	24.00

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

HSS719

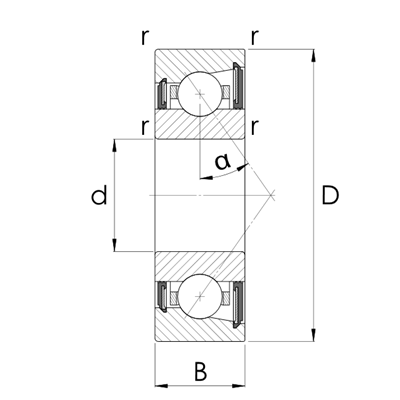

High speed spindle bearing HSS719 - light serie

Spindle bearing HSS719
Spindle bearing HSS719
Spindle bearing HSS719

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10042966	HSS71900-E-T-P4S-UL	10.00	22.00	6.00
10432637	HSS71900-C-T-P4S-UM	10.00	22.00	6.00
10042967	HSS71901-C-T-P4S-UL	12.00	24.00	6.00
10042968	HSS71901-E-T-P4S-UL	12.00	24.00	6.00
10042970	HSS71902-E-T-P4S-UL	15.00	28.00	7.00
10042969	HSS71902-C-T-P4S-UL	15.00	28.00	7.00
10042972	HSS71903-E-T-P4S-UL	17.00	30.00	7.00
10042971	HSS71903-C-T-P4S-UL	17.00	30.00	7.00
10042974	HSS71904-E-T-P4S-UL	20.00	37.00	9.00
10042973	HSS71904-C-T-P4S-UL	20.00	37.00	9.00
10042976	HSS71905-E-T-P4S-UL	25.00	42.00	9.00
10042975	HSS71905-C-T-P4S-UL	25.00	42.00	9.00
10042978	HSS71906-E-T-P4S-UL	30.00	47.00	9.00
10042977	HSS71906-C-T-P4S-UL	30.00	47.00	9.00
10042980	HSS71907-E-T-P4S-UL	35.00	55.00	10.00
10042979	HSS71907-C-T-P4S-UL	35.00	55.00	10.00
10042982	HSS71908-E-T-P4S-UL	40.00	62.00	12.00
10042981	HSS71908-C-T-P4S-UL	40.00	62.00	12.00
10042984	HSS71909-E-T-P4S-UL	45.00	68.00	12.00
10042983	HSS71909-C-T-P4S-UL	45.00	68.00	12.00
10042986	HSS71910-E-T-P4S-UL	50.00	72.00	12.00
10042985	HSS71910-C-T-P4S-UL	50.00	72.00	12.00
10042987	HSS71911-C-T-P4S-UL	55.00	80.00	13.00
10042988	HSS71911-E-T-P4S-UL	55.00	80.00	13.00
10042990	HSS71912-E-T-P4S-UL	60.00	85.00	13.00
10042989	HSS71912-C-T-P4S-UL	60.00	85.00	13.00
10042991	HSS71913-C-T-P4S-UL	65.00	90.00	13.00
10042992	HSS71913-E-T-P4S-UL	65.00	90.00	13.00
10042994	HSS71914-E-T-P4S-UL	70.00	100.00	16.00
10042993	HSS71914-C-T-P4S-UL	70.00	100.00	16.00
10042995	HSS71915-C-T-P4S-UL	75.00	105.00	16.00
10042996	HSS71915-E-T-P4S-UL	75.00	105.00	16.00
10042997	HSS71916-C-T-P4S-UL	80.00	110.00	16.00
10042998	HSS71916-E-T-P4S-UL	80.00	110.00	16.00
10042999	HSS71917-C-T-P4S-UL	85.00	120.00	18.00
10043000	HSS71917-E-T-P4S-UL	85.00	120.00	18.00
10043002	HSS71918-E-T-P4S-UL	90.00	125.00	18.00
10043001	HSS71918-C-T-P4S-UL	90.00	125.00	18.00
10043003	HSS71919-C-T-P4S-UL	95.00	130.00	18.00
10043004	HSS71919-E-T-P4S-UL	95.00	130.00	18.00
10043005	HSS71920-C-T-P4S-UL	100.00	140.00	20.00
10043006	HSS71920-E-T-P4S-UL	100.00	140.00	20.00
10043007	HSS71921-C-T-P4S-UL	105.00	145.00	20.00
10043008	HSS71921-E-T-P4S-UL	105.00	145.00	20.00
10043009	HSS71922-C-T-P4S-UL	110.00	150.00	20.00
10043010	HSS71922-E-T-P4S-UL	110.00	150.00	20.00
10043011	HSS71924-C-T-P4S-UL	120.00	165.00	22.00
10043012	HSS71924-E-T-P4S-UL	120.00	165.00	22.00
10043013	HSS71926-C-T-P4S-UL	130.00	180.00	24.00
10043014	HSS71926-E-T-P4S-UL	130.00	180.00	24.00

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

Please note that the spindle bearings listed above only represent the smallest basic variant of many. Further variants are available in the online data sheet in the "Variants" tab. Please also note our technical information in the
