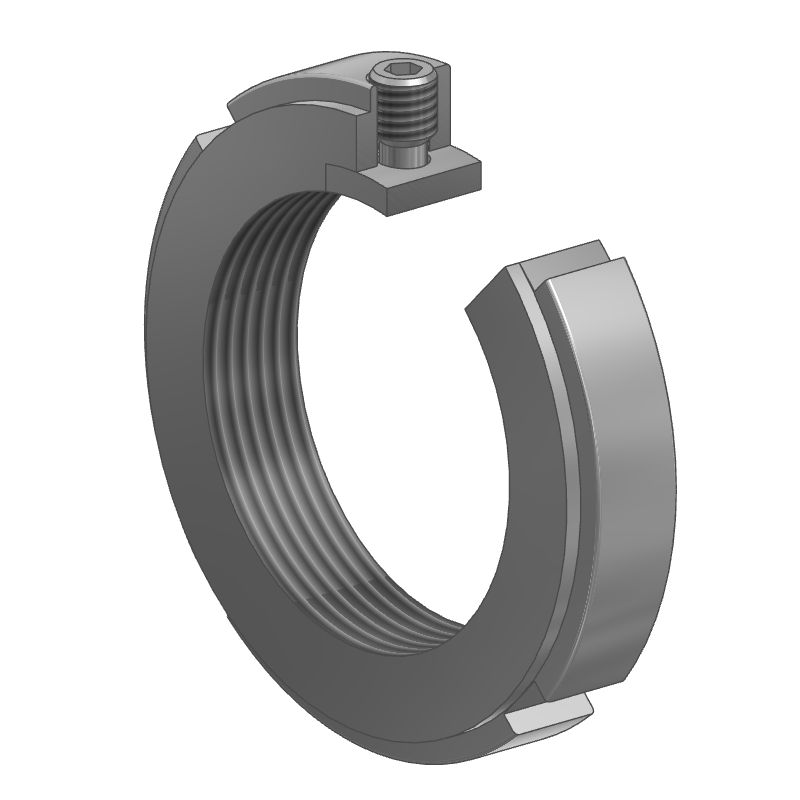

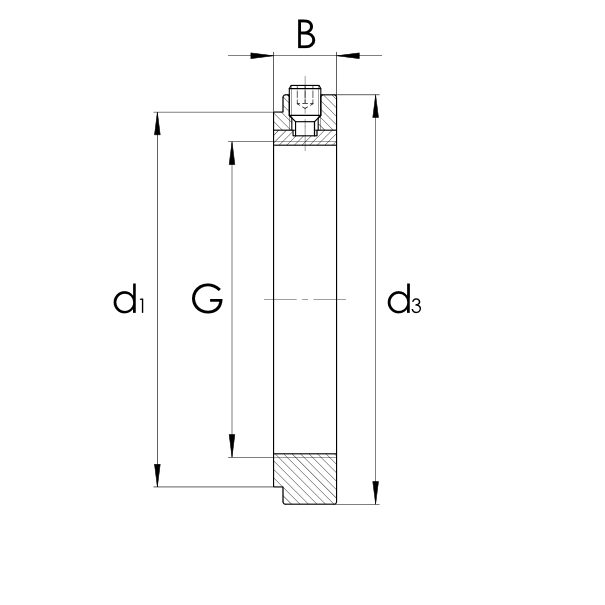

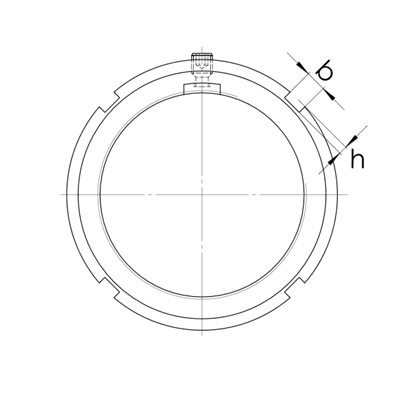

Groove lock nut KMK with clamping pins
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| G | d[[sub]]3[[/sub]] | B | ||
| mm | mm | |||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| G | d[[sub]]3[[/sub]] | B | |||
| mm | mm | ||||
| 10170714 | KMK0 | M10x0,75 | 20.00 | 9.00 | |
| 10170715 | KMK1 | M12x1 | 22.00 | 9.00 | |
| 10170716 | KMK2 | M15x1 | 25.00 | 9.00 | |
| 10170717 | KMK3 | M17x1 | 28.00 | 9.00 | |
| 10170718 | KMK4 | M20x1 | 32.00 | 9.00 | |
| 10170719 | KMK5 | M25x1,5 | 38.00 | 9.00 | |
| 10170720 | KMK6 | M30x1,5 | 45.00 | 9.00 | |
| 10170721 | KMK7 | M35x1,5 | 52.00 | 9.00 | |
| 10170722 | KMK8 | M40x1,5 | 58.00 | 11.00 | |
| 10170723 | KMK9 | M45x1,5 | 65.00 | 11.00 | |
| 10170724 | KMK10 | M50x1,5 | 70.00 | 15.00 | |
| 10170725 | KMK11 | M55x2 | 75.00 | 15.00 | |
| 10170726 | KMK12 | M60x2 | 80.00 | 15.00 | |
| 10170727 | KMK13 | M65x2 | 85.00 | 14.00 | |
| 10170728 | KMK14 | M70x2 | 92.00 | 14.00 | |
| 10170729 | KMK15 | M75x2 | 98.00 | 14.00 | |
| 10170730 | KMK16 | M80x2 | 105.00 | 18.00 | |
| 10170731 | KMK17 | M85x2 | 110.00 | 18.00 | |
| 10170732 | KMK18 | M90x2 | 120.00 | 18.00 | |
| 10170733 | KMK19 | M95x2 | 125.00 | 20.00 | |
| 10170734 | KMK20 | M100x2 | 130.00 | 20.00 | |
