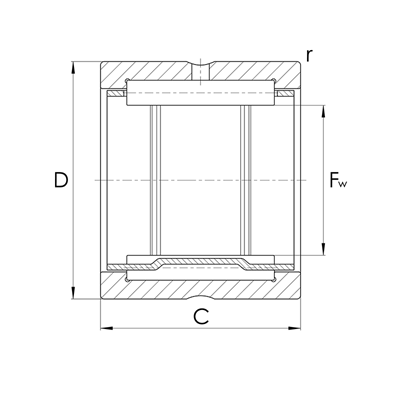

Nadellager RNA48, Abmessungen nach DIN 617-1 / ISO 1206
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10041173 | RNA4822 | 120,00 | 140,00 | 30,00 | |
| 10041174 | RNA4824 | 130,00 | 150,00 | 30,00 | |
| 10041175 | RNA4826 | 145,00 | 165,00 | 35,00 | |
| 10041176 | RNA4828 | 155,00 | 175,00 | 35,00 | |
| 10041177 | RNA4830 | 165,00 | 190,00 | 40,00 | |
| 10041178 | RNA4832 | 175,00 | 200,00 | 40,00 | |
| 10041179 | RNA4834 | 185,00 | 215,00 | 45,00 | |
| 10041180 | RNA4836 | 195,00 | 225,00 | 45,00 | |
| 10041181 | RNA4838 | 210,00 | 240,00 | 50,00 | |
| 10041182 | RNA4840 | 220,00 | 250,00 | 50,00 | |
| 10041183 | RNA4844 | 240,00 | 270,00 | 50,00 | |
| 10041184 | RNA4848 | 265,00 | 300,00 | 60,00 | |
| 10041185 | RNA4852 | 285,00 | 320,00 | 60,00 | |
| 10041186 | RNA4856 | 305,00 | 350,00 | 69,00 | |
| 10041187 | RNA4860 | 330,00 | 380,00 | 80,00 | |
| 10041188 | RNA4864 | 350,00 | 400,00 | 80,00 | |
| 10041189 | RNA4868 | 370,00 | 420,00 | 80,00 | |
| 10041190 | RNA4872 | 390,00 | 440,00 | 80,00 | |
| 10041191 | RNA4876 | 415,00 | 480,00 | 100,00 | |
