  • BK

    Nadelbüchse BK, Abmessungen nach DIN 618-1 / ISO 3245

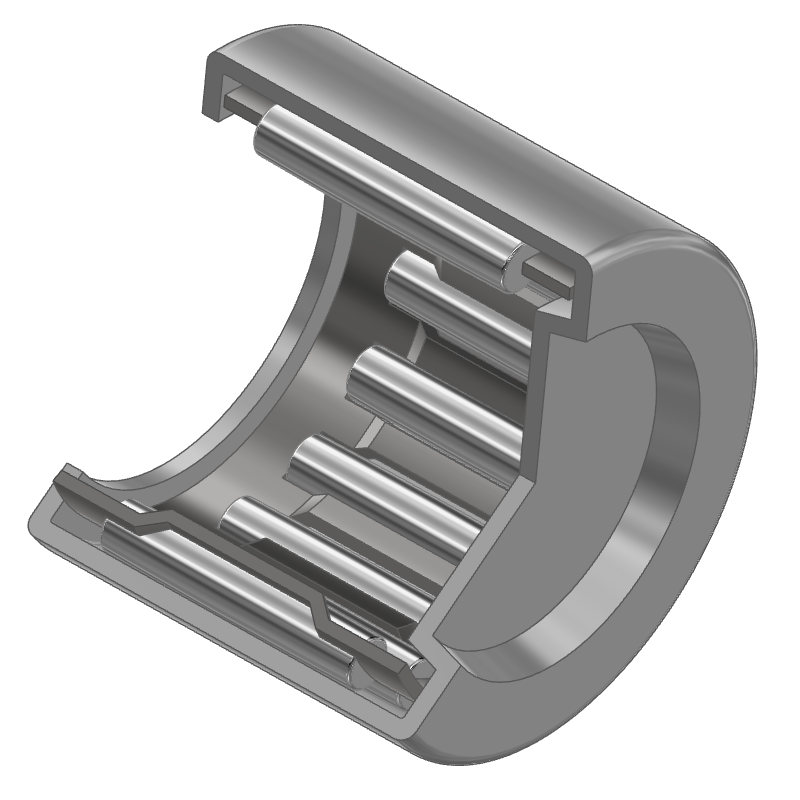

    • Nadelbüchse BK
      Nadelbüchse BK
    • Nadelbüchse BK einreihig
      Nadelbüchse BK einreihig

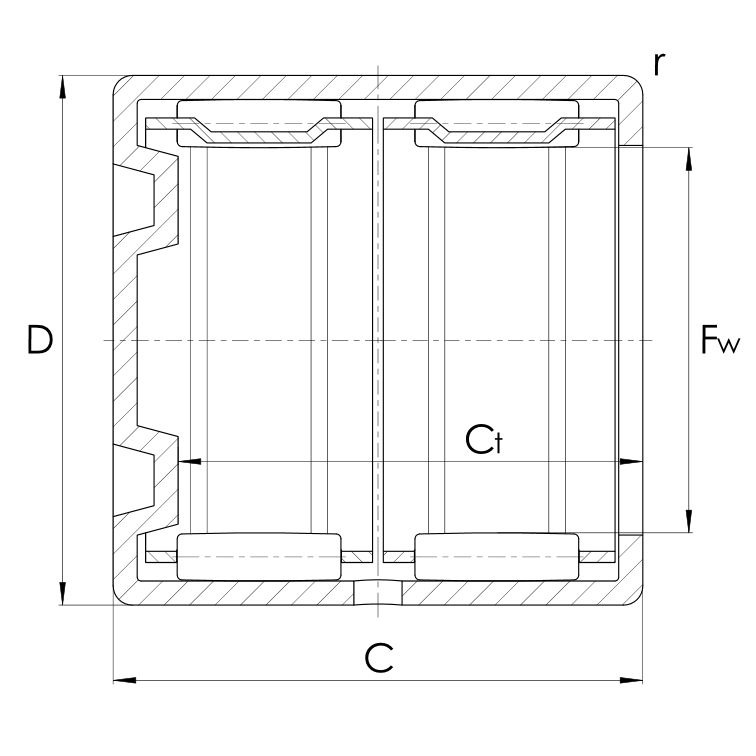

    • Nadelbüchse BK zweireihig
      Nadelbüchse BK zweireihig
      Description Main dimensions Functions
      Fw D C
      mm mm mm
      SKU Description Main dimensions Functions
      Fw D C
      mm mm mm
      10039370 BK0306-TV 3,00 6,50 6,00
      10039371 BK0408 4,00 8,00 8,00
      10039372 BK0509 5,00 9,00 9,00
      10039373 BK0609 6,00 10,00 9,00
      10039374 BK0709 7,00 11,00 9,00
      10039375 BK0808 8,00 12,00 8,00
      10039376 BK0810 8,00 12,00 10,00
      10039377 BK0910 9,00 13,00 10,00
      10039378 BK0912 9,00 13,00 12,00
      10039380 BK1012 10,00 14,00 12,00
      10039382 BK1015 10,00 14,00 15,00
      10039379 BK1010 10,00 14,00 10,00
      10039383 BK1210 12,00 16,00 10,00
      10039384 BK1212 12,00 18,00 12,00
      10039385 BK1312 13,00 19,00 12,00
      10039386 BK1412 14,00 20,00 12,00
      10039388 BK1512 15,00 21,00 12,00
      10039389 BK1516 15,00 21,00 16,00
      10039393 BK1622-ZW 16,00 22,00 22,00
      10039390 BK1612 16,00 22,00 12,00
      10039392 BK1616 16,00 22,00 16,00
      10039394 BK1812 18,00 24,00 12,00
      10039395 BK1816 18,00 24,00 16,00
      10039396 BK2016 20,00 26,00 16,00
      10039398 BK2020 20,00 26,00 20,00
      10039399 BK2212 22,00 28,00 12,00
      10039400 BK2216 22,00 28,00 16,00
      10039404 BK2526 25,00 32,00 26,00
      10039405 BK2538-ZW 25,00 32,00 38,00
      10039403 BK2520 25,00 32,00 20,00
      10039401 BK2516 25,00 32,00 16,00
      10039406 BK3012 30,00 37,00 12,00
      10039407 BK3016 30,00 37,00 16,00
      10039408 BK3020 30,00 37,00 20,00
      10039409 BK3026 30,00 37,00 26,00
      10039410 BK3038-ZW 30,00 37,00 38,00
      10039411 BK3520 35,00 42,00 20,00
      10039412 BK4020 40,00 47,00 20,00
      10039413 BK4520 45,00 52,00 20,00
      10173336 BK5025 50,00 58,00 25,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • BK..-RS

      Nadelbüchse BK, Abmessungen nach DIN 618-1 / ISO 3245

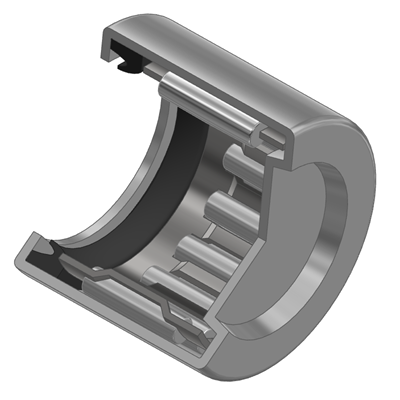

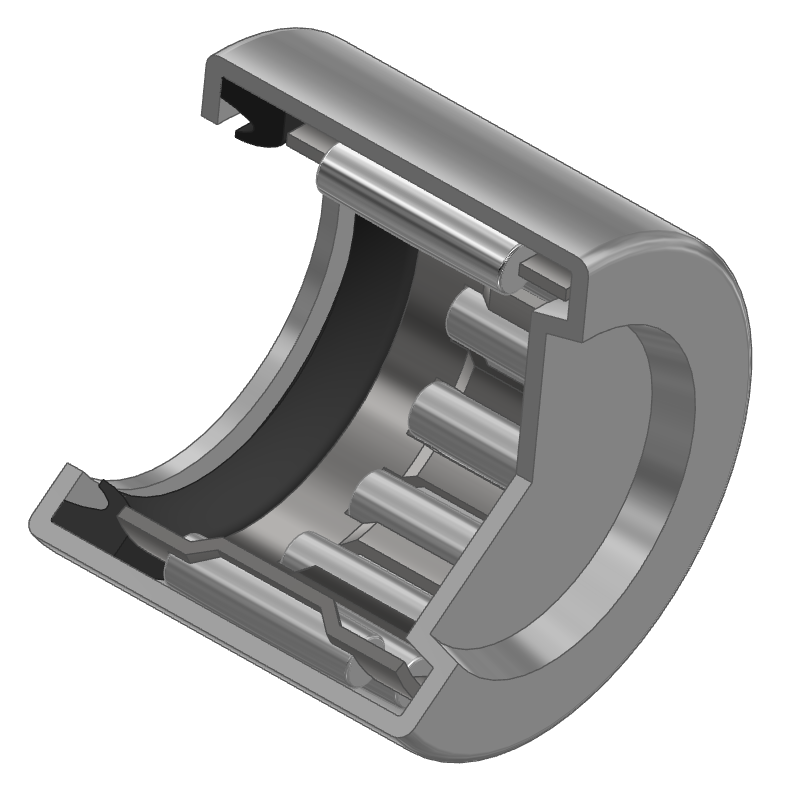

      • Nadelbüchse BK..-RS
        Nadelbüchse BK..-RS

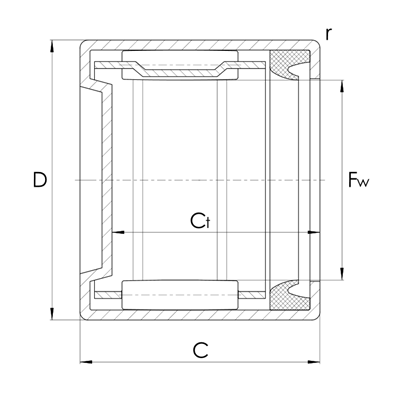

      • Nadelbüchse BK..-RS bis 25mm
        Nadelbüchse BK..-RS bis 25mm

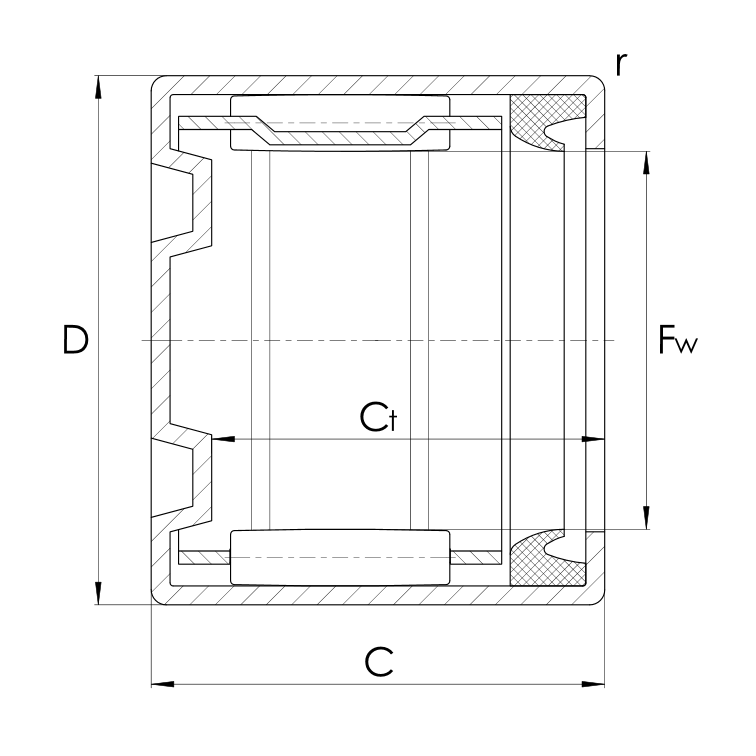

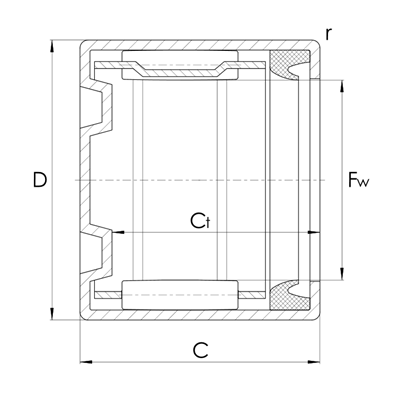

      • Nadelbüchse BK..-RS ab 25mm
        Nadelbüchse BK..-RS ab 25mm
        Description Main dimensions Functions
        Fw D C
        mm mm mm
        SKU Description Main dimensions Functions
        Fw D C
        mm mm mm
        10039381 BK1012-RS 10,00 14,00 12,00
        10039387 BK1414-RS 14,00 20,00 14,00
        10173177 BK1514-RS 15,00 21,00 14,00
        10039391 BK1614-RS 16,00 22,00 14,00
        10039397 BK2018-RS 20,00 26,00 18,00
        10039402 BK2518-RS 25,00 32,00 18,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
