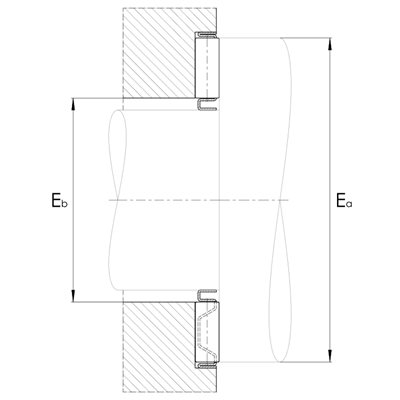

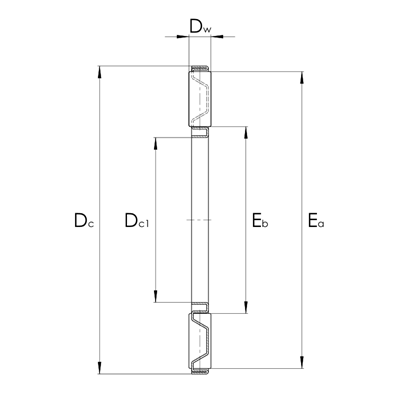

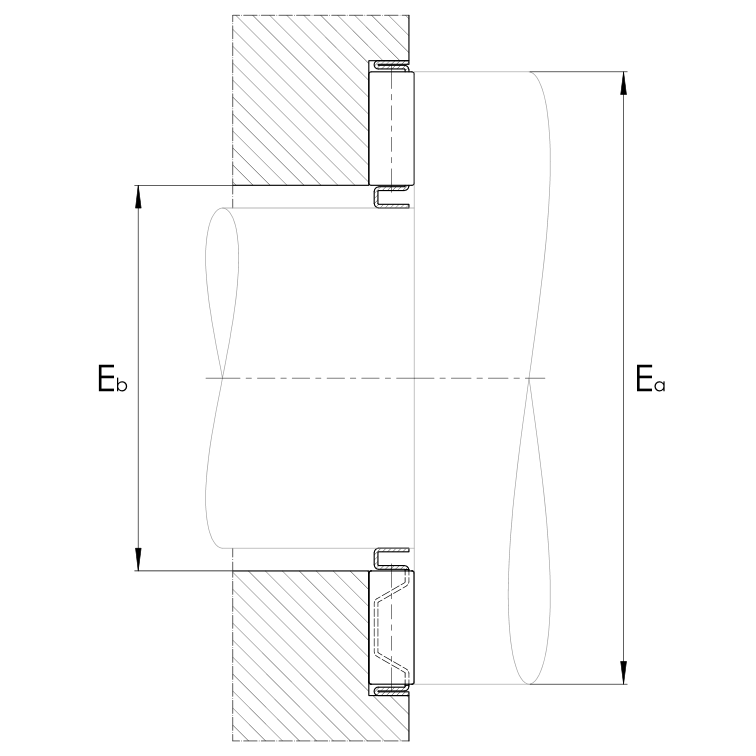

Axial needle roller and cage assemblies
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Dc1 | Dc | Dw | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Dc1 | Dc | Dw | |||
| mm | mm | mm | |||
| 10074163 | AXK0414 | 4.00 | 14.00 | 2.00 | |
| 10074165 | AXK0515 | 5.00 | 15.00 | 2.00 | |
| 10074167 | AXK0619 | 6.00 | 19.00 | 2.00 | |
| 10074169 | AXK0821 | 8.00 | 21.00 | 2.00 | |
| 10074172 | AXK1024 | 10.00 | 24.00 | 2.00 | |
| 10074175 | AXK1226 | 12.00 | 26.00 | 2.00 | |
| 10074179 | AXK1528 | 15.00 | 28.00 | 2.00 | |
| 10074181 | AXK1730 | 17.00 | 30.00 | 2.00 | |
| 10074182 | AXK2035 | 20.00 | 35.00 | 2.00 | |
| 10074183 | AXK2542 | 25.00 | 42.00 | 2.00 | |
| 10074184 | AXK3047 | 30.00 | 47.00 | 2.00 | |
| 10074185 | AXK3552 | 35.00 | 52.00 | 2.00 | |
| 10074186 | AXK4060 | 40.00 | 60.00 | 3.00 | |
| 10074187 | AXK4565 | 45.00 | 65.00 | 3.00 | |
| 10074188 | AXK5070 | 50.00 | 70.00 | 3.00 | |
| 10074189 | AXK5578 | 55.00 | 78.00 | 3.00 | |
| 10074190 | AXK6085 | 60.00 | 85.00 | 3.00 | |
| 10074191 | AXK6590 | 65.00 | 90.00 | 3.00 | |
| 10074192 | AXK7095 | 70.00 | 95.00 | 4.00 | |
| 10074193 | AXK75100 | 75.00 | 100.00 | 4.00 | |
| 10074194 | AXK80105 | 80.00 | 105.00 | 4.00 | |
| 10074195 | AXK85110 | 85.00 | 110.00 | 4.00 | |
| 10074196 | AXK90120 | 90.00 | 120.00 | 4.00 | |
| 10074171 | AXK100135 | 100.00 | 135.00 | 4.00 | |
| 10074173 | AXK110145 | 110.00 | 145.00 | 4.00 | |
| 10074174 | AXK120155 | 120.00 | 155.00 | 4.00 | |
| 10074176 | AXK130170 | 130.00 | 170.00 | 5.00 | |
| 10074177 | AXK140180 | 140.00 | 180.00 | 5.00 | |
| 10074178 | AXK150190 | 150.00 | 190.00 | 5.00 | |
| 10074180 | AXK160200 | 160.00 | 200.00 | 5.00 | |
