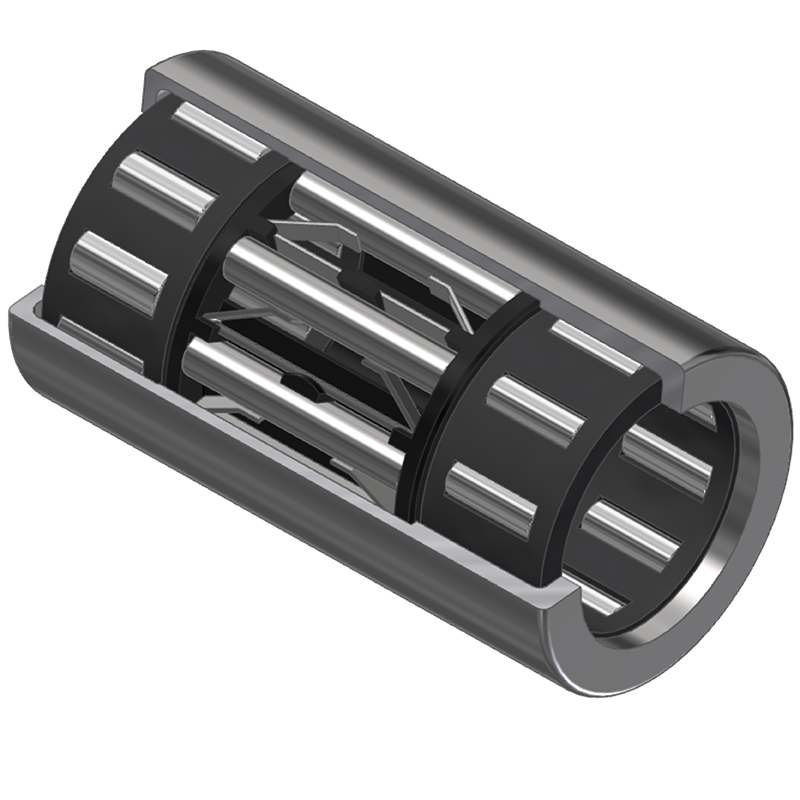

Sleeve roller bearing freewheel with bearing, smooth or knurled surface

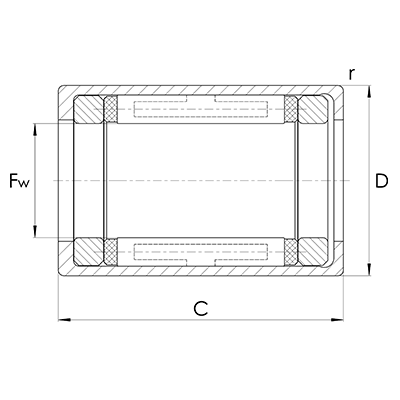

Sleeve roller bearing freewheel HFL
Sleeve roller bearing freewheel HFL
Sleeve roller bearing freewheel HFL
SKU
Description
Main dimensions
Functions
FW
D
C
mm
mm
mm
10042218
HFL0615 6.00
10.00
15.00
10042223
HFL0822 8.00
12.00
22.00
10042227
HFL1022 10.00
14.00
22.00
10042228
HFL1226 12.00
18.00
26.00
10042229
HFL1426 14.00
20.00
26.00
10042230
HFL1626 16.00
22.00
26.00
10042231
HFL1826 18.00
24.00
26.00
10042232
HFL2026 20.00
26.00
26.00
10042233
HFL2530 25.00
32.00
30.00
10042234
HFL3030 30.00
37.00
30.00
10042235
HFL3530 35.00
42.00
30.00
