  • 722 A

    Flanschlagergehäuse 722 A für Pendelkugellager oder Pendelrollenlager mit Spannhülse

    • Flanschlagergehäuse 722 A geschlossen
      Flanschlagergehäuse 722 A geschlossen
    • Flanschlagergehäuse 722 A
      Flanschlagergehäuse 722 A
    • Flanschlagergehäuse 722 A
      Flanschlagergehäuse 722 A

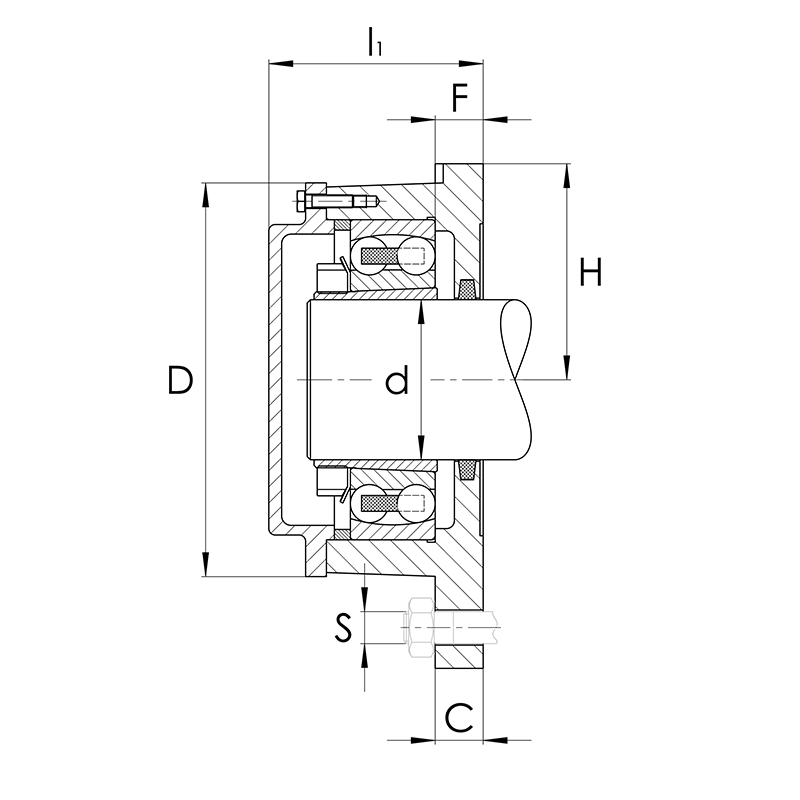

      Description Main dimensions Functions
      d D A
      mm mm mm
      SKU Description Main dimensions Functions
      d D A
      mm mm mm
      10056299 722515-A-RAL9005 65,00 168,00 190,00
      10056301 722516-A-RAL9005 70,00 176,00 196,00
      10056305 722517-A-RAL9005 75,00 188,00 210,00
      10056307 722518-A-RAL9005 80,00 198,00 210,00
      10056311 722520-A-RAL9005 90,00 224,00 250,00
      10056315 722522-A-RAL9005 100,00 246,00 270,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • 722 B

      Flanschlagergehäuse 722 B für Pendelkugellager oder Pendelrollenlager mit Spannhülse

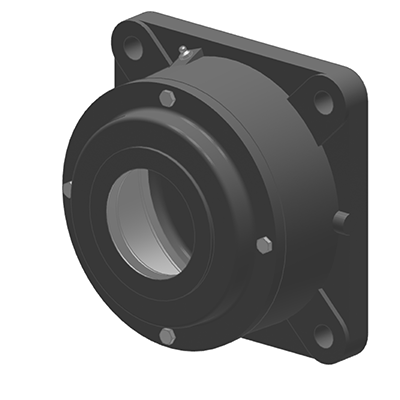

      • Flanschlagergehäuse 722 B offen
        Flanschlagergehäuse 722 B offen
      • Flanschlagergehäuse 722 B
        Flanschlagergehäuse 722 B
      • Flanschlagergehäuse 722 B
        Flanschlagergehäuse 722 B
        Description Main dimensions Functions
        d D A
        mm mm mm
        SKU Description Main dimensions Functions
        d D A
        mm mm mm
        10056300 722515-B-RAL9005 65,00 168,00 190,00
        10056303 722516-B-RAL9005 70,00 176,00 196,00
        10056306 722517-B-RAL9005 75,00 188,00 210,00
        10056309 722518-B-RAL9005 80,00 198,00 210,00
        10056313 722520-B-RAL9005 90,00 224,00 250,00
        10056317 722522-B-RAL9005 100,00 246,00 270,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
