  • VSI20

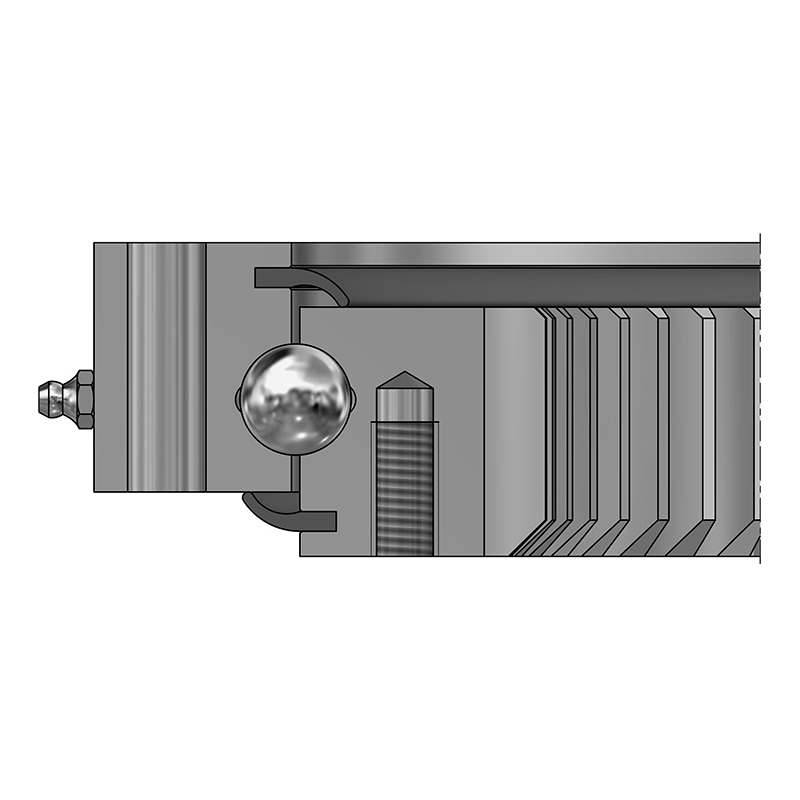

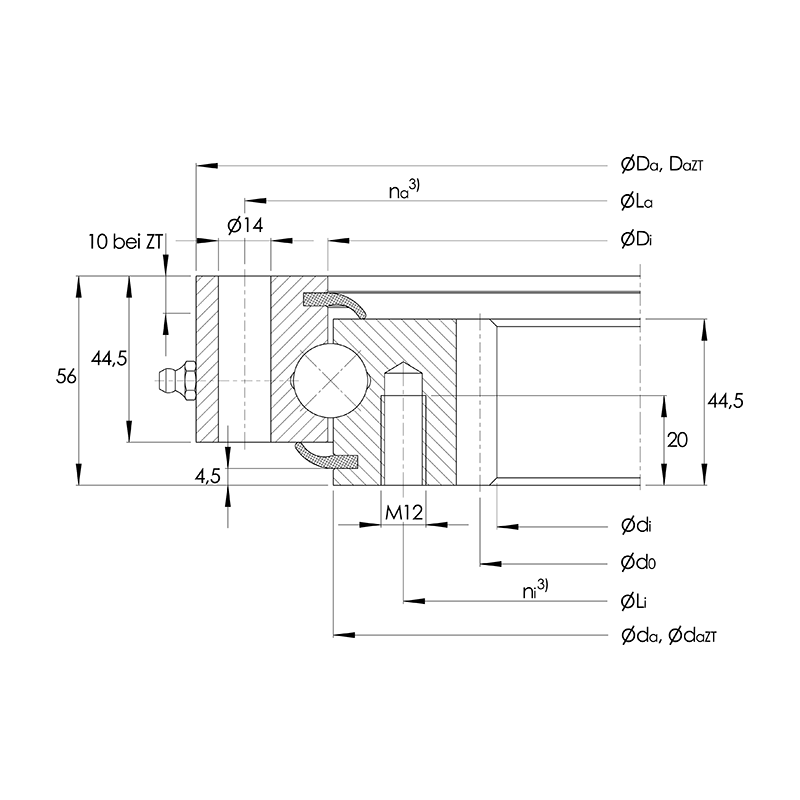

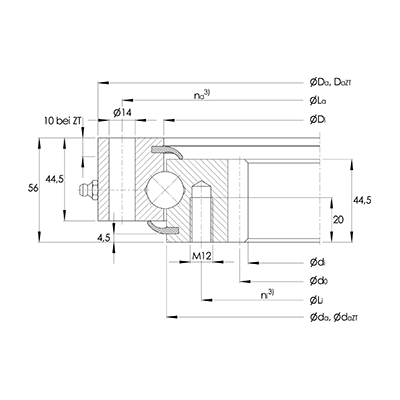

    Four-point contact slewing bearing, standard serie 20, internal toothed, bearing clearance selectable, sealed, grease nipple on the circumference of the untoothed ring

    • Four-point contact slewing bearing VSI 20*
      Four-point contact slewing bearing VSI 20*
    • Four-point contact slewing bearing VSI 20
      Four-point contact slewing bearing VSI 20
      Description Main dimensions Functions
      d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
      mm mm mm
      SKU Description Main dimensions Functions
      d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
      mm mm mm
      10093774 VSI200414-N 486.00
      -0.50       		+0.50
      415.50       		412.50
      -0.50
      10093779 VSI200544-N 616.00
      -0.50       		+0.50
      545.50       		542.50
      -0.50
      10093784 VSI200644-N 716.00
      -0.60       		+0.60
      645.50       		642.50
      -0.60
      10093789 VSI200744-N 816.00
      -0.60       		+0.60
      745.50       		742.50
      -0.60
      10093794 VSI200844-N 916.00
      -0.60       		+0.60
      845.50       		842.50
      -0.60
      10093799 VSI200944-N 1,016.00
      -0.70       		+0.70
      945.50       		942.50
      -0.70
      10093804 VSI201094-N 1,166.00
      -0.70       		+0.70
      1,095.50       		1,092.50
      -0.70
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • VSI25

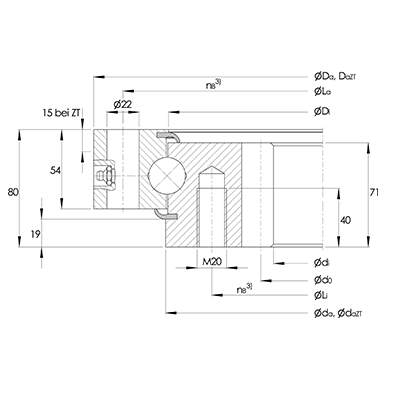

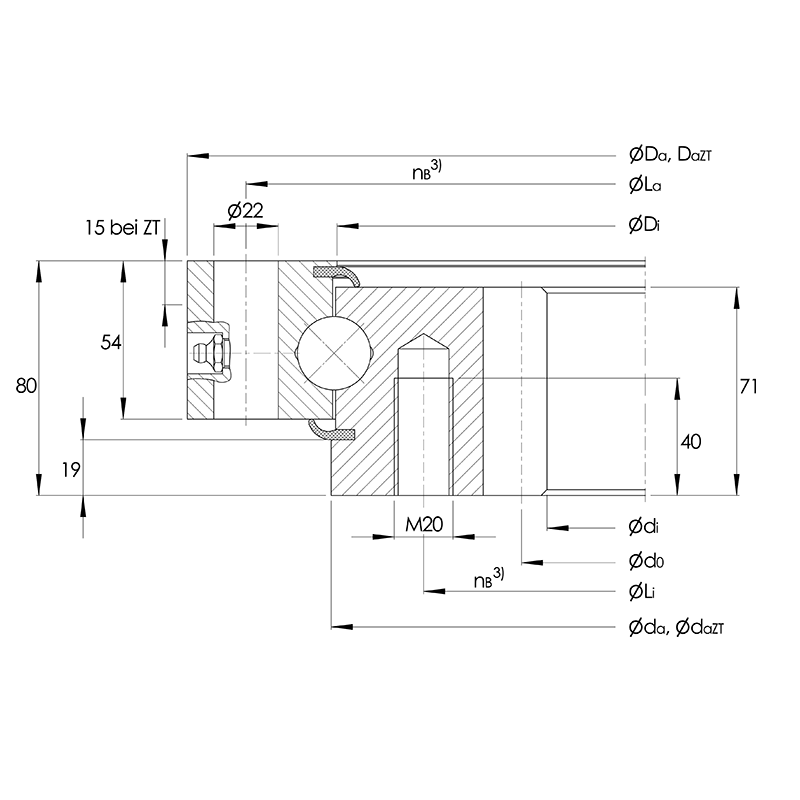

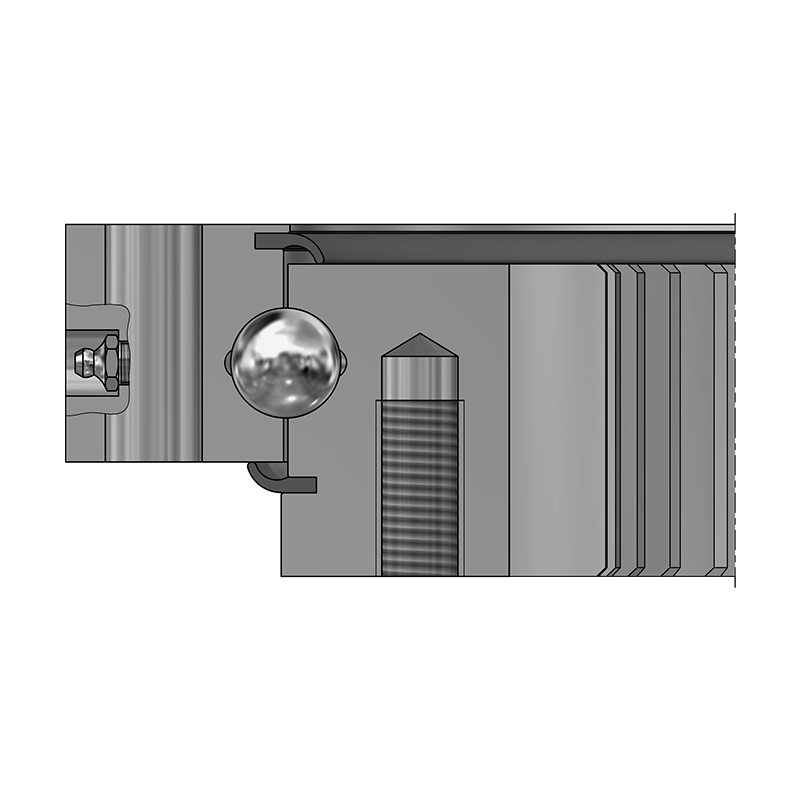

      Four-point contact slewing bearing, heavy serie 25, internal toothed, bearing clearance selectable, sealed, grease nipple on the circumference of the untoothed ring

      • Four-point contact slewing bearing VSI 25*
        Four-point contact slewing bearing VSI 25*
      • Four-point contact slewing bearing VSI 25
        Four-point contact slewing bearing VSI 25
        Description Main dimensions Functions
        d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
        mm mm mm
        SKU Description Main dimensions Functions
        d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
        mm mm mm
        10093809 VSI250755-N 855.00 753.00 757.00
        10093810 VSI250855-N 955.00 853.00 857.00
        10093811 VSI250955-N 1,055.00 953.00 957.00
        10093812 VSI251055-N 1,155.00 1,053.00 1,057.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
