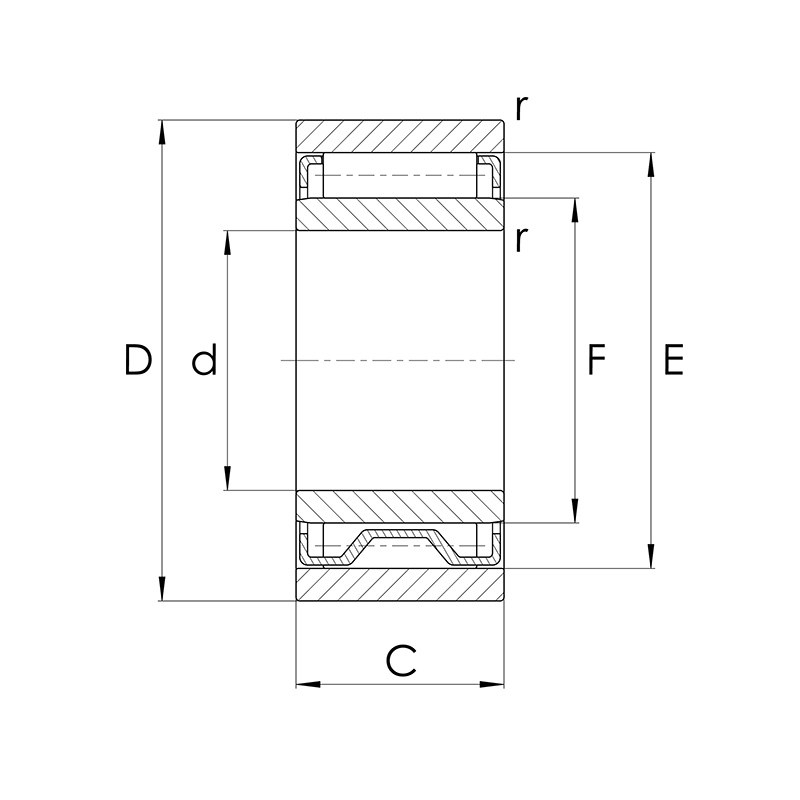

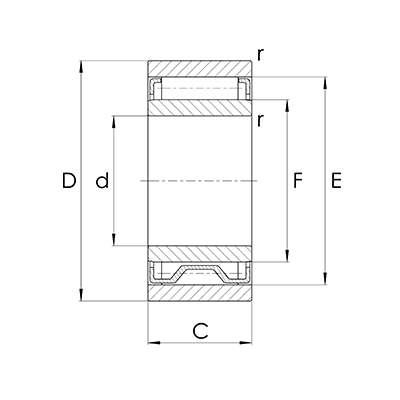

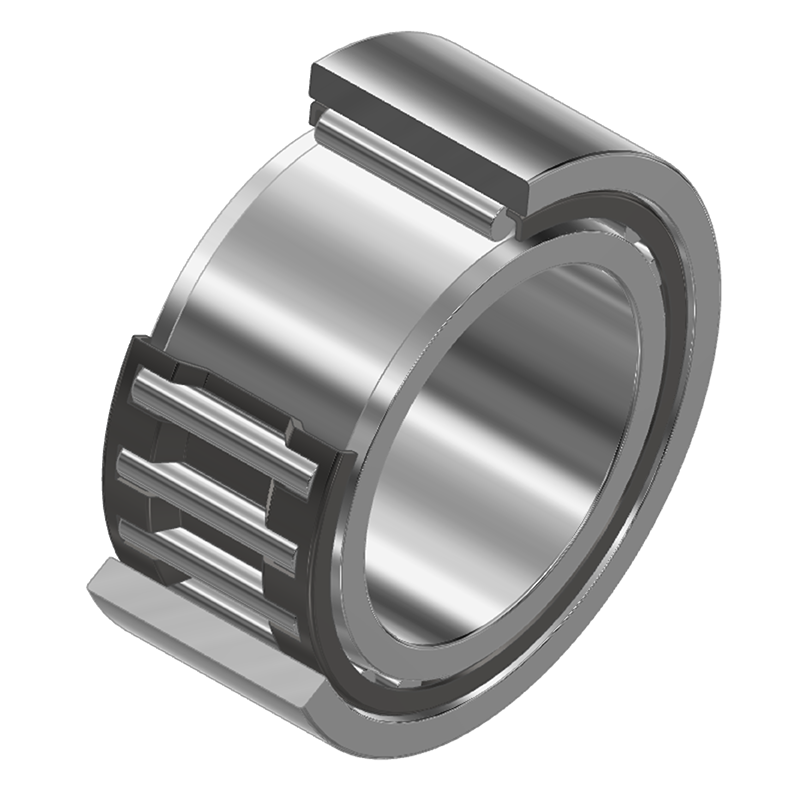

Nadellager NAO, Abmessungen nach DIN 617-1 / ISO 1206
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | C | |||
| mm | mm | mm | |||
| 10142535 | NAO6x17x10-TV-IS1 | 6,00 | 17,00 | 10,00 | |
| 10142538 | NAO9x22x12-TV | 9,00 | 22,00 | 12,00 | |
| 10142541 | NAO12x24x13 | 12,00 | 24,00 | 13,00 | |
| 10142544 | NAO12x28x12-IS1 | 12,00 | 28,00 | 12,00 | |
| 10142550 | NAO15x32x12-IS1 | 15,00 | 32,00 | 12,00 | |
| 10142547 | NAO15x28x13 | 15,00 | 28,00 | 13,00 | |
| 10142553 | NAO17x30x13 | 17,00 | 30,00 | 13,00 | |
| 10142556 | NAO17x35x16 | 17,00 | 35,00 | 16,00 | |
| 10142559 | NAO20x35x17 | 20,00 | 35,00 | 17,00 | |
| 10142562 | NAO20x37x16 | 20,00 | 37,00 | 16,00 | |

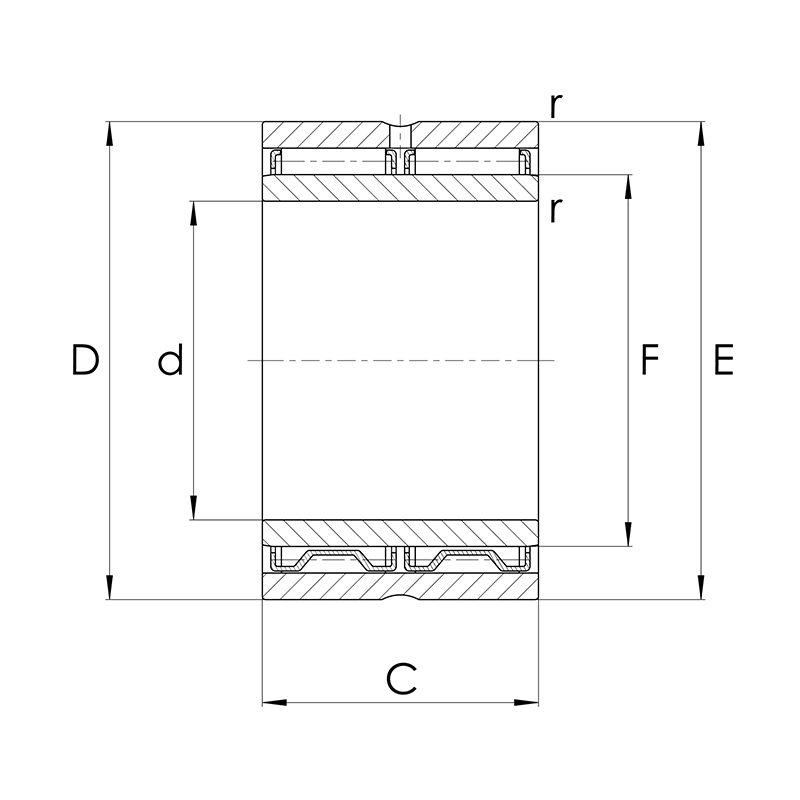

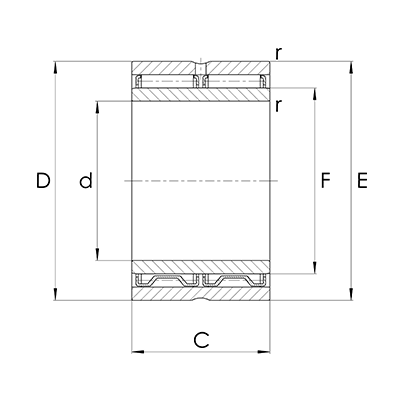

| 10318405 | NAO25x42x32-ZW-ASR1 | 25,00 | 42,00 | 32,00 | |
| 10142568 | NAO25x42x16-IS1 | 25,00 | 42,00 | 16,00 | |
| 10142565 | NAO25x40x17 | 25,00 | 40,00 | 17,00 | |
| 10142574 | NAO30x45x17 | 30,00 | 45,00 | 17,00 | |
| 10318406 | NAO30x45x26-ZW-ASR1 | 30,00 | 45,00 | 26,00 | |
| 10142580 | NAO30x47x16 | 30,00 | 47,00 | 16,00 | |
| 10142583 | NAO30x47x18 | 30,00 | 47,00 | 18,00 | |
| 10142586 | NAO35x50x17 | 35,00 | 50,00 | 17,00 | |
| 10142589 | NAO35x55x20 | 35,00 | 55,00 | 20,00 | |
| 10142592 | NAO40x55x17 | 40,00 | 55,00 | 17,00 | |
| 10142595 | NAO50x68x20-IS1 | 50,00 | 68,00 | 20,00 | |
| 10142598 | NAO70x100x30 | 70,00 | 100,00 | 30,00 | |
| 10142601 | NAO80x110x30 | 80,00 | 110,00 | 30,00 | |
| 10142604 | NAO90x120x30 | 90,00 | 120,00 | 30,00 | |
