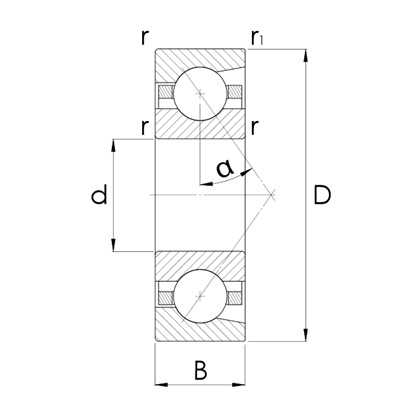

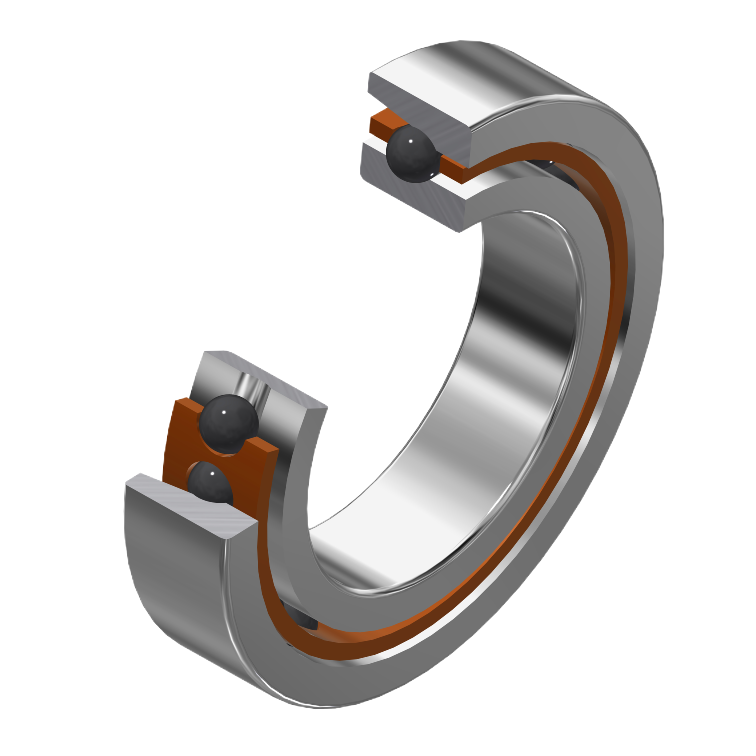

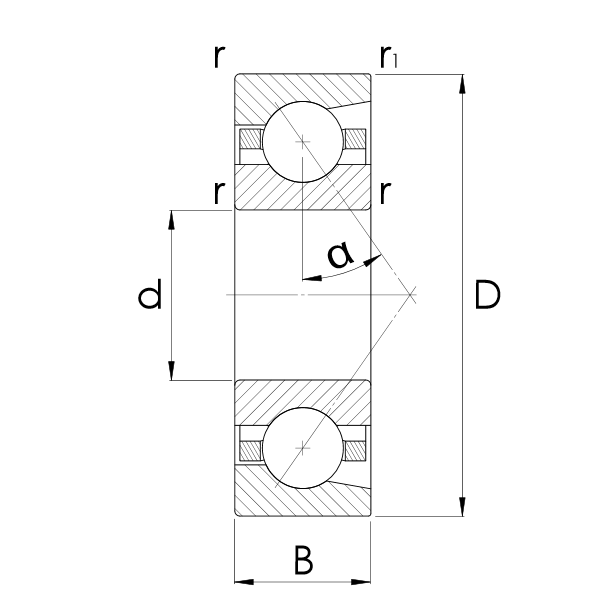

Hybrid spindle bearing HCRS719 - light serie
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10429230 | HCRS71906-D-T-P4S-UL | 30.00 | 47.00 | 9.00 | |
| 10429260 | HCRS71907-D-T-P4S-UL | 35.00 | 55.00 | 10.00 | |
| 10429290 | HCRS71908-D-T-P4S-UL | 40.00 | 62.00 | 12.00 | |
| 10429320 | HCRS71909-D-T-P4S-UL | 45.00 | 68.00 | 12.00 | |
| 10429350 | HCRS71910-D-T-P4S-UL | 50.00 | 72.00 | 12.00 | |
| 10429380 | HCRS71911-D-T-P4S-UL | 55.00 | 80.00 | 13.00 | |
| 10429410 | HCRS71912-D-T-P4S-UL | 60.00 | 85.00 | 13.00 | |
| 10429440 | HCRS71913-D-T-P4S-UL | 65.00 | 90.00 | 13.00 | |
| 10429470 | HCRS71914-D-T-P4S-UL | 70.00 | 100.00 | 16.00 | |
| 10429500 | HCRS71915-D-T-P4S-UL | 75.00 | 105.00 | 16.00 | |
| 10429530 | HCRS71916-D-T-P4S-UL | 80.00 | 110.00 | 16.00 | |
| 10429560 | HCRS71917-D-T-P4S-UL | 85.00 | 120.00 | 18.00 | |
| 10429590 | HCRS71918-D-T-P4S-UL | 90.00 | 125.00 | 18.00 | |
| 10429620 | HCRS71919-D-T-P4S-UL | 95.00 | 130.00 | 18.00 | |
| 10429650 | HCRS71920-D-T-P4S-UL | 100.00 | 140.00 | 20.00 | |
| 10429680 | HCRS71921-D-T-P4S-UL | 105.00 | 145.00 | 20.00 | |
| 10429710 | HCRS71922-D-T-P4S-UL | 110.00 | 150.00 | 20.00 | |
| 10429725 | HCRS71924-D-T-P4S-UL | 120.00 | 165.00 | 22.00 | |
| 10429740 | HCRS71926-D-T-P4S-UL | 130.00 | 180.00 | 24.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
Please note that the spindle bearings listed above only represent the smallest basic variant of many. Further variants are available in the online data sheet in the "Variants" tab. Please also note our technical information in the Prouctdescription
