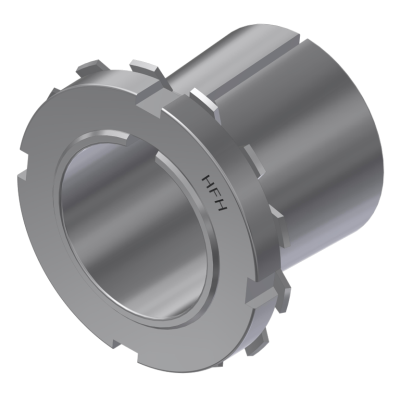

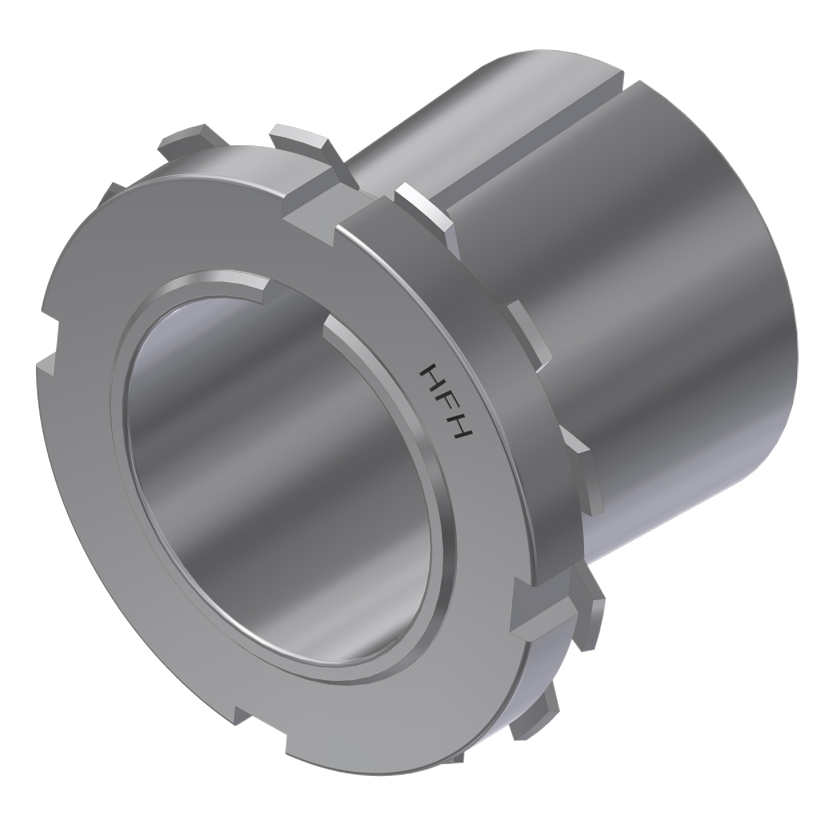

Adapter sleeve H2300 according to DIN 5415

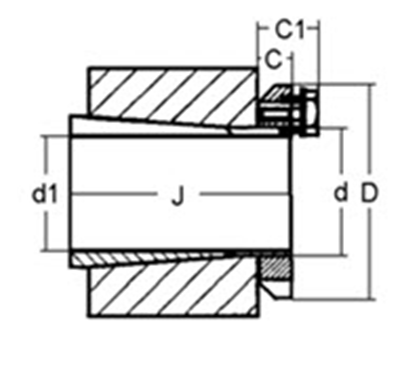

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | d1 | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | d1 | J | |||
| mm | mm | mm | |||
| 10069738 | H2304 | 20.00 | 17.00 | 31.00 | |
| 10069742 | H2305 | 25.00 | 20.00 | 35.00 | |
| 10069746 | H2306 | 30.00 | 25.00 | 38.00 | |
| 10069750 | H2307 | 35.00 | 30.00 | 43.00 | |
| 10069754 | H2308 | 40.00 | 35.00 | 46.00 | |
| 10069758 | H2309 | 45.00 | 40.00 | 50.00 | |
| 10069762 | H2310 | 50.00 | 45.00 | 55.00 | |
| 10069766 | H2311 | 55.00 | 50.00 | 59.00 | |
| 10069770 | H2312 | 60.00 | 55.00 | 62.00 | |
| 10069774 | H2313 | 65.00 | 60.00 | 65.00 | |
| 10069778 | H2314 | 70.00 | 60.00 | 68.00 | |
| 10069782 | H2315 | 75.00 | 65.00 | 73.00 | |
| 10069786 | H2316 | 80.00 | 70.00 | 78.00 | |
| 10069790 | H2317 | 85.00 | 75.00 | 82.00 | |
| 10069794 | H2318 | 90.00 | 80.00 | 86.00 | |
| 10069798 | H2319 | 95.00 | 85.00 | 90.00 | |
| 10069802 | H2320 | 100.00 | 90.00 | 97.00 | |
| 10069806 | H2321 | 105.00 | 95.00 | 101.00 | |
| 10069810 | H2322 | 110.00 | 100.00 | 105.00 | |
| 10069814 | H2324 | 120.00 | 110.00 | 112.00 | |
| 10069818 | H2326 | 130.00 | 115.00 | 121.00 | |
| 10069822 | H2328 | 140.00 | 125.00 | 131.00 | |
| 10069826 | H2330 | 150.00 | 135.00 | 139.00 | |
| 10069830 | H2332 | 160.00 | 140.00 | 147.00 | |
| 10069834 | H2334 | 170.00 | 150.00 | 154.00 | |
| 10069838 | H2336 | 180.00 | 160.00 | 161.00 | |
| 10069842 | H2338 | 190.00 | 170.00 | 169.00 | |
| 10069846 | H2340 | 200.00 | 180.00 | 176.00 | |
| 30001028 | H2344 | 220.00 | 200.00 | 186.00 | |
| 30001029 | H2348 | 240.00 | 220.00 | 199.00 | |
| 30001030 | H2352 | 260.00 | 240.00 | 211.00 | |
| 30001031 | H2356 | 280.00 | 260.00 | 224.00 | |
