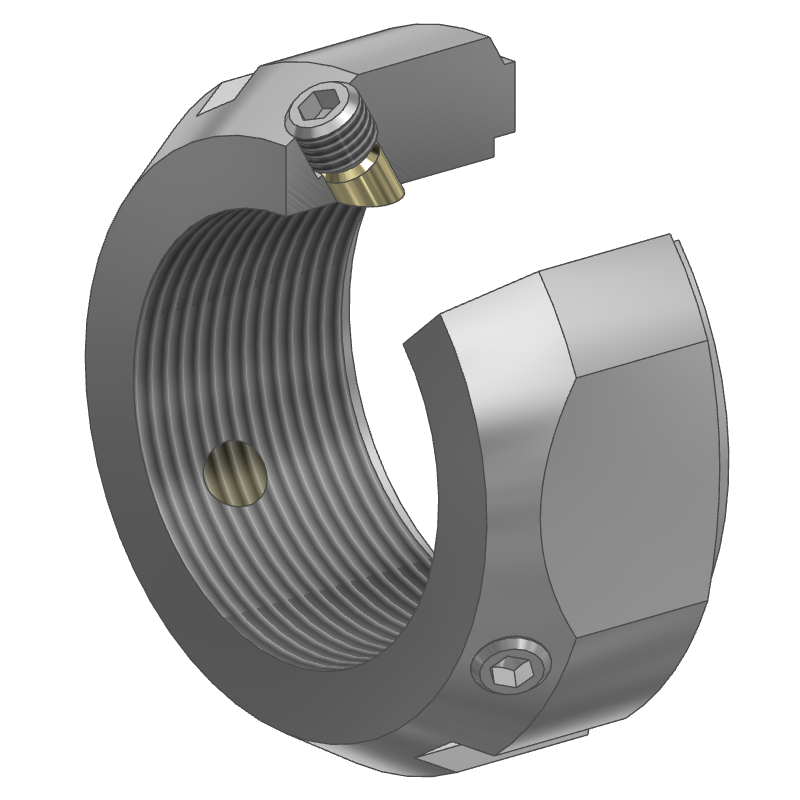

Precision groove lock nut KMT

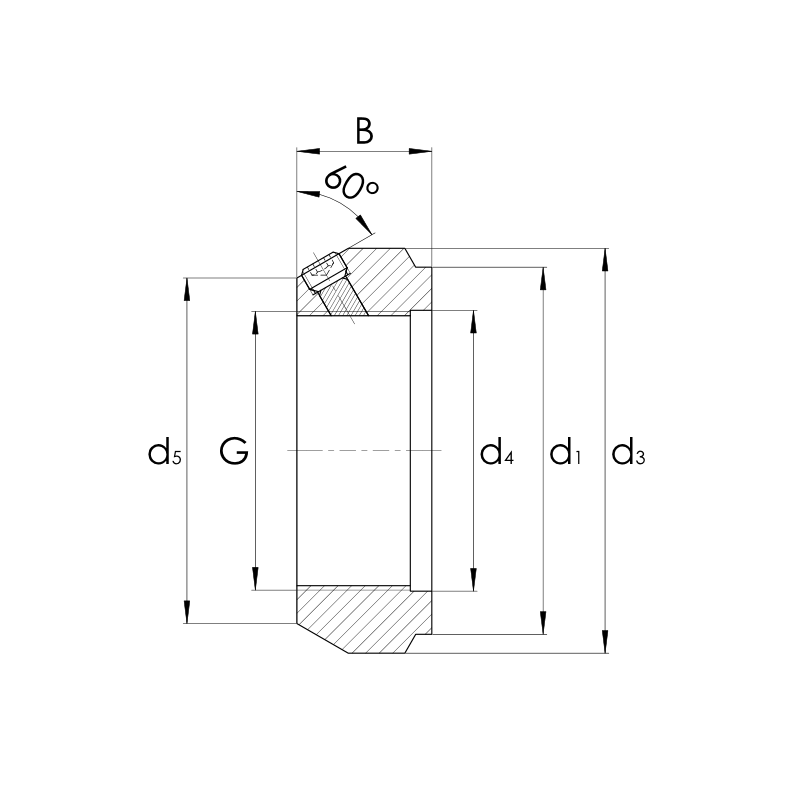

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| G | d[[sub]]1[[/sub]] | d[[sub]]5[[/sub]] | ||
| mm | mm | |||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| G | d[[sub]]1[[/sub]] | d[[sub]]5[[/sub]] | |||
| mm | mm | ||||
| 10145627 | KMT00 | M10x0,75 | 23.00 | 21.00 | |
| 10145628 | KMT01 | M12x1 | 25.00 | 23.00 | |
| 10145629 | KMT02 | M15x1 | 28.00 | 26.00 | |
| 10145630 | KMT03 | M17x1 | 33.00 | 29.00 | |
| 10145631 | KMT04 | M20x1 | 35.00 | 32.00 | |
| 10145632 | KMT05 | M25x1,5 | 39.00 | 36.00 | |
| 10145633 | KMT06 | M30x1,5 | 44.00 | 41.00 | |
| 10145634 | KMT07 | M35x1,5 | 49.00 | 46.00 | |
| 10145635 | KMT08 | M40x1,5 | 59.00 | 54.00 | |
| 10145636 | KMT09 | M45x1,5 | 64.00 | 60.00 | |
| 10146500 | KMT10 | M50x1,5 | 68.00 | 64.00 | |
| 10145638 | KMT11 | M55x2 | 78.00 | 74.00 | |
| 10145639 | KMT12 | M60x2 | 82.00 | 78.00 | |
| 10145640 | KMT13 | M65x2 | 87.00 | 83.00 | |
| 10145641 | KMT14 | M70x2 | 92.00 | 88.00 | |
| 10145642 | KMT15 | M75x2 | 97.00 | 93.00 | |
| 10145643 | KMT16 | M80x2 | 100.00 | 98.00 | |
| 10145644 | KMT17 | M85x2 | 110.00 | 107.00 | |
| 10145645 | KMT18 | M90x2 | 115.00 | 112.00 | |
| 10145646 | KMT19 | M95x2 | 120.00 | 117.00 | |
| 10145647 | KMT20 | M100x2 | 125.00 | 122.00 | |
| 10145648 | KMT22 | M110x2 | 134.00 | 132.00 | |
| 10145649 | KMT24 | M120x2 | 144.00 | 142.00 | |
| 10145650 | KMT26 | M130x2 | 154.00 | 152.00 | |
| 10145651 | KMT28 | M140x2 | 164.00 | 162.00 | |
| 10145652 | KMT30 | M150x2 | 174.00 | 172.00 | |
| 10145653 | KMT32 | M160x3 | 184.00 | 182.00 | |
| 10145654 | KMT34 | M170x3 | 192.00 | 192.00 | |
| 10145655 | KMT36 | M180x3 | 204.00 | 202.00 | |
| 10145656 | KMT38 | M190x3 | 214.00 | 212.00 | |
| 10145657 | KMT40 | M200x3 | 224.00 | 222.00 | |
