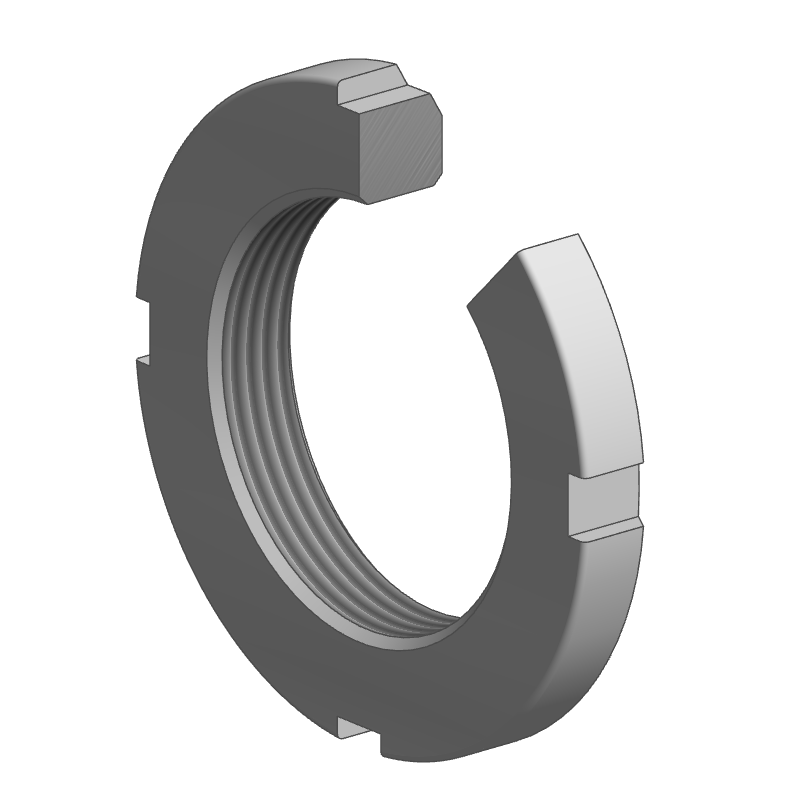

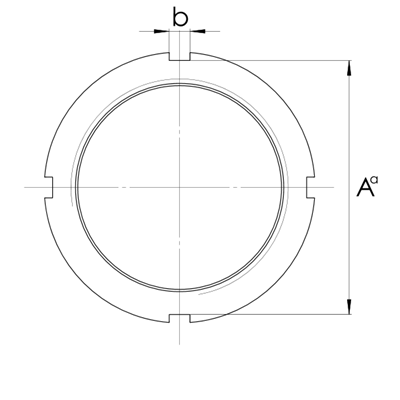

Groove lock nut KM/KML, main dimensions according to 981
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| G | d[[sub]]2[[/sub]] | B | ||
| mm | mm | |||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| G | d[[sub]]2[[/sub]] | B | |||
| mm | mm | ||||
| 10039783 | KM00 | M10x0,75 | 18.00 | 4.00 | |
| 10039786 | KM01 | M12x1 | 22.00 | 4.00 | |
| 10039789 | KM02 | M15x1 | 25.00 | 5.00 | |
| 10039792 | KM03 | M17x1 | 28.00 | 5.00 | |
| 10039795 | KM04 | M20x1 | 32.00 | 6.00 | |
| 10039798 | KM05 | M25x1,5 | 38.00 | 7.00 | |
| 10039801 | KM06 | M30x1,5 | 45.00 | 7.00 | |
| 10039804 | KM07 | M35x1,5 | 52.00 | 8.00 | |
| 10039807 | KM08 | M40x1,5 | 58.00 | 9.00 | |
| 10039810 | KM09 | M45x1,5 | 65.00 | 10.00 | |
| 10039813 | KM10 | M50x1,5 | 70.00 | 11.00 | |
| 10039816 | KM11 | M55x2 | 75.00 | 11.00 | |
| 10039819 | KM12 | M60x2 | 80.00 | 11.00 | |
| 10039822 | KM13 | M65x2 | 85.00 | 12.00 | |
| 10039825 | KM14 | M70x2 | 92.00 | 12.00 | |
| 10039828 | KM15 | M75x2 | 98.00 | 13.00 | |
| 10039831 | KM16 | M80x2 | 105.00 | 15.00 | |
| 10039834 | KM17 | M85x2 | 110.00 | 16.00 | |
| 10039837 | KM18 | M90x2 | 120.00 | 16.00 | |
| 10039840 | KM19 | M95x2 | 125.00 | 17.00 | |
| 10039843 | KM20 | M100x2 | 130.00 | 18.00 | |
| 10039846 | KM21 | M105x2 | 140.00 | 18.00 | |
| 10039849 | KM22 | M110x2 | 145.00 | 19.00 | |
| 10039897 | KML24 | M120x2 | 145.00 | 20.00 | |
| 10039852 | KM23 | M115x2 | 150.00 | 19.00 | |
| 10039898 | KML26 | M130x2 | 155.00 | 21.00 | |
| 10039855 | KM24 | M120x2 | 155.00 | 20.00 | |
| 10039858 | KM25 | M125x2 | 160.00 | 21.00 | |
| 10039861 | KM26 | M130x2 | 165.00 | 21.00 | |
| 10039899 | KML28 | M140x2 | 165.00 | 22.00 | |
| 10039864 | KM27 | M135x2 | 175.00 | 22.00 | |
| 10039867 | KM28 | M140x2 | 180.00 | 22.00 | |
| 10039900 | KML30 | M150x2 | 180.00 | 24.00 | |
| 10039870 | KM29 | M145x2 | 190.00 | 24.00 | |
| 10039901 | KML32 | M160x3 | 190.00 | 25.00 | |
| 10039873 | KM30 | M150x2 | 195.00 | 24.00 | |
| 10039876 | KM31 | M155x3 | 200.00 | 25.00 | |
| 10039902 | KML34 | M170x3 | 200.00 | 26.00 | |
| 10039903 | KML36 | M180x3 | 210.00 | 27.00 | |
| 10039882 | KM33 | M165x3 | 210.00 | 26.00 | |
| 10039879 | KM32 | M160x3 | 210.00 | 25.00 | |
| 10039904 | KML38 | M190x3 | 220.00 | 28.00 | |
| 10039885 | KM34 | M170x3 | 220.00 | 26.00 | |
| 10039888 | KM36 | M180x3 | 230.00 | 27.00 | |
| 10039905 | KML40 | M200x3 | 240.00 | 29.00 | |
| 10039891 | KM38 | M190x3 | 240.00 | 28.00 | |
| 10039894 | KM40 | M200x3 | 250.00 | 29.00 | |
