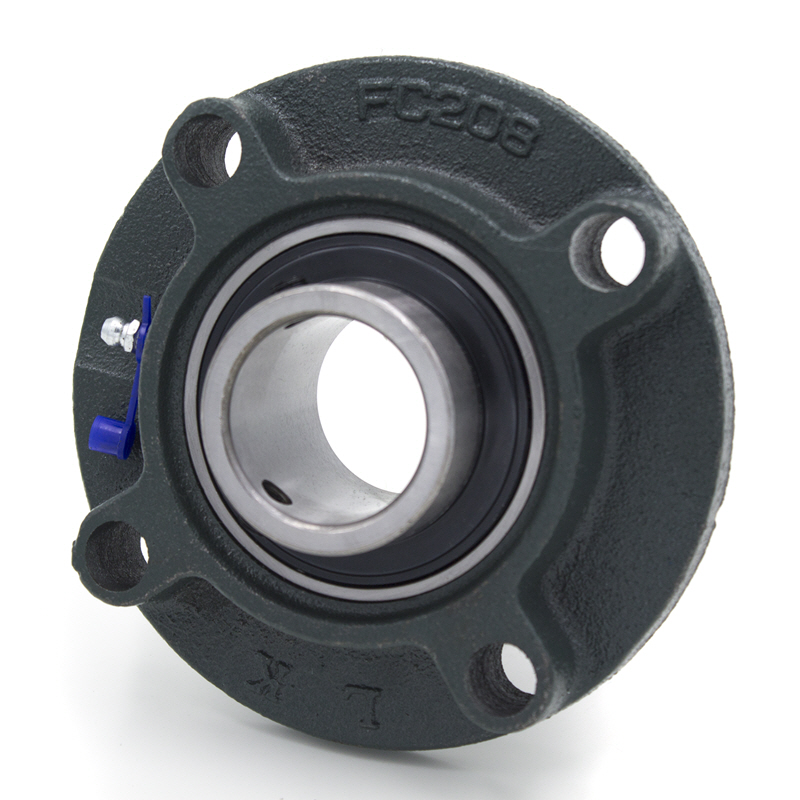

Flanschlagereinheit UCFC 200

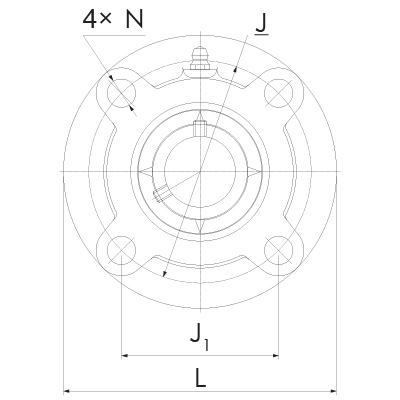

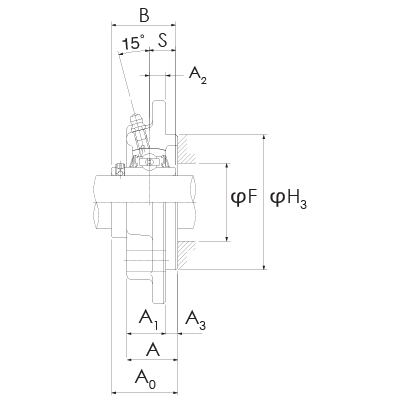

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | H3 | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | H3 | L | |||
| mm | mm | mm | |||
| 10057538 | UCFC201 | 12,00 | 62,00 | 100,00 | |
| 10057539 | UCFC202 | 15,00 | 62,00 | 100,00 | |
| 10057540 | UCFC203 | 17,00 | 62,00 | 100,00 | |
| 10057541 | UCFC204 | 20,00 | 62,00 | 100,00 | |
| 10057542 | UCFC205 | 25,00 | 70,00 | 115,00 | |
| 10057543 | UCFC206 | 30,00 | 80,00 | 125,00 | |
| 10057544 | UCFC207 | 35,00 | 90,00 | 135,00 | |
| 10057545 | UCFC208 | 40,00 | 100,00 | 145,00 | |
| 10057546 | UCFC209 | 45,00 | 105,00 | 160,00 | |
| 10057547 | UCFC210 | 50,00 | 110,00 | 165,00 | |
| 10057548 | UCFC211 | 55,00 | 125,00 | 185,00 | |
| 10057549 | UCFC212 | 60,00 | 135,00 | 195,00 | |
| 10057550 | UCFC213 | 65,00 | 145,00 | 205,00 | |
| 10057551 | UCFC214 | 70,00 | 150,00 | 215,00 | |
| 10057552 | UCFC215 | 75,00 | 160,00 | 220,00 | |
| 10057553 | UCFC216 | 80,00 | 170,00 | 240,00 | |
| 10057554 | UCFC217 | 85,00 | 180,00 | 250,00 | |
| 10057555 | UCFC218 | 90,00 | 190,00 | 265,00 | |
