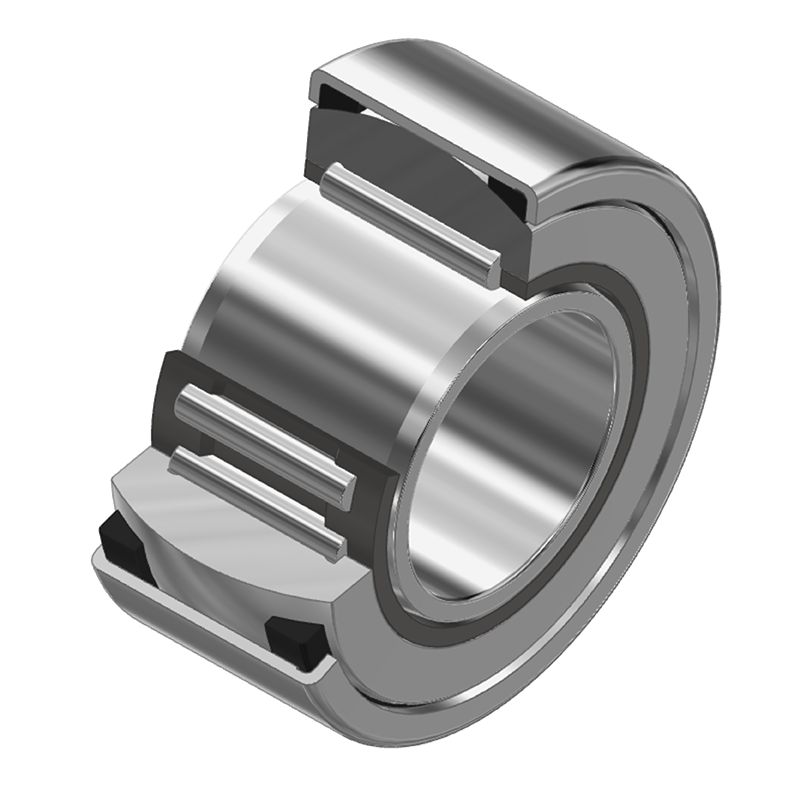

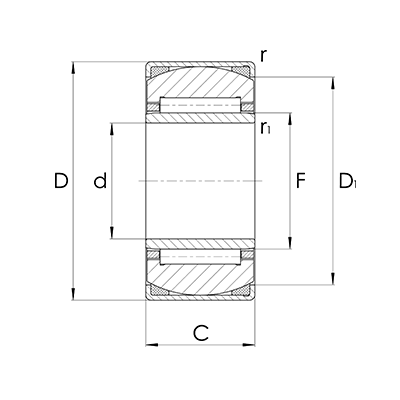

Einstell-Nadellager PNA

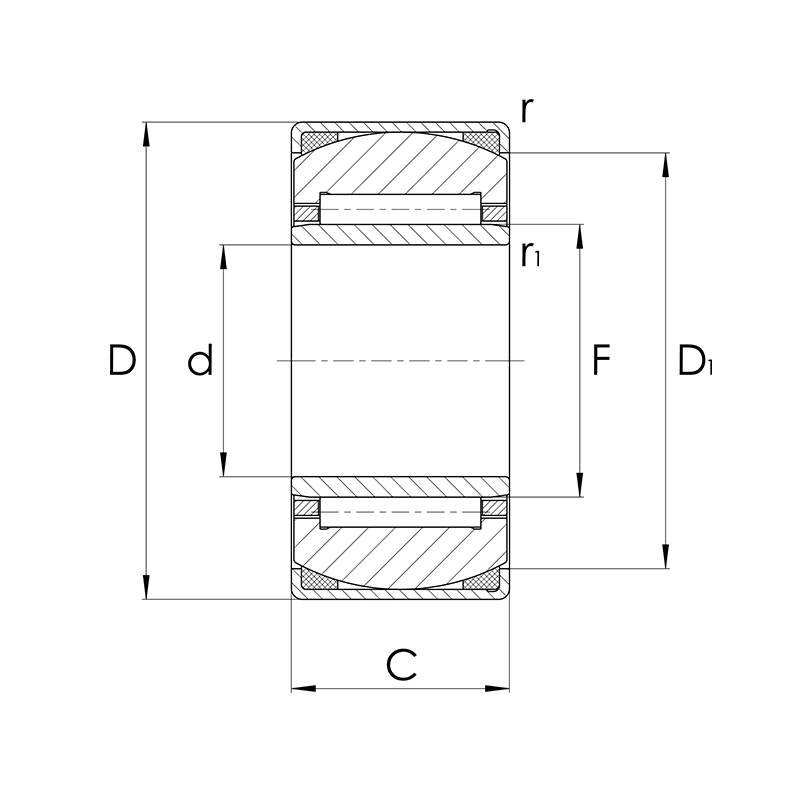

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | C | |||
| mm | mm | mm | |||
| 10097286 | PNA12/28 | 12,00 | 28,00 | 12,00 | |
| 10097287 | PNA15/32 | 15,00 | 32,00 | 16,00 | |
| 10097288 | PNA17/35 | 17,00 | 35,00 | 16,00 | |
| 10097289 | PNA20/42 | 20,00 | 42,00 | 20,00 | |
| 10097290 | PNA22/44 | 22,00 | 44,00 | 20,00 | |
| 10097291 | PNA25/47 | 25,00 | 47,00 | 20,00 | |
| 10097292 | PNA30/52 | 30,00 | 52,00 | 20,00 | |
| 10097293 | PNA35/55 | 35,00 | 55,00 | 20,00 | |
| 10097294 | PNA40/62 | 40,00 | 62,00 | 20,00 | |
