2200

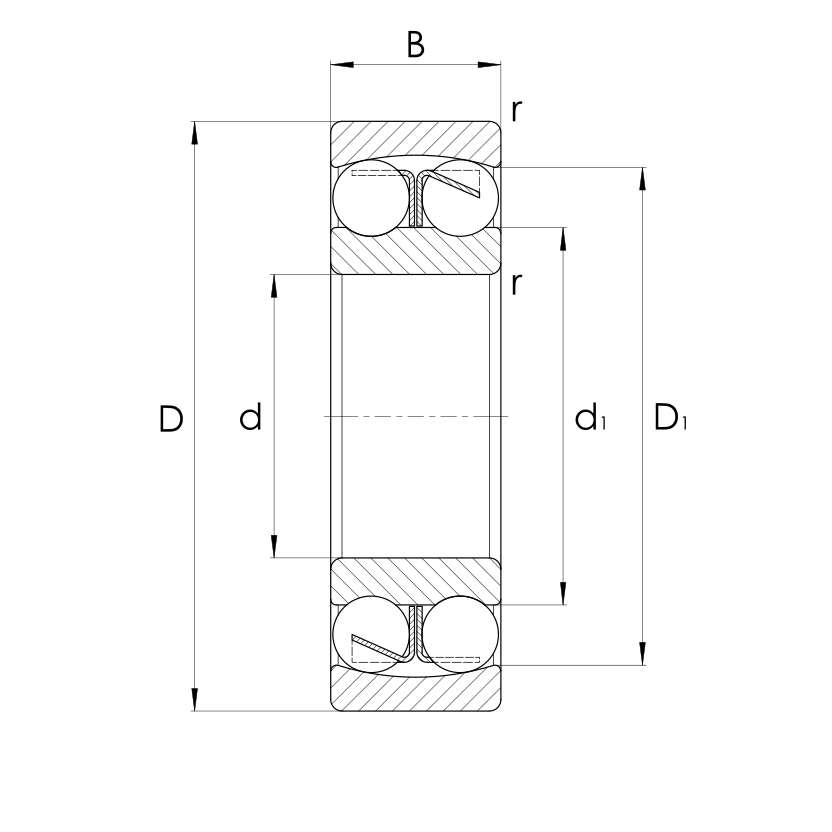

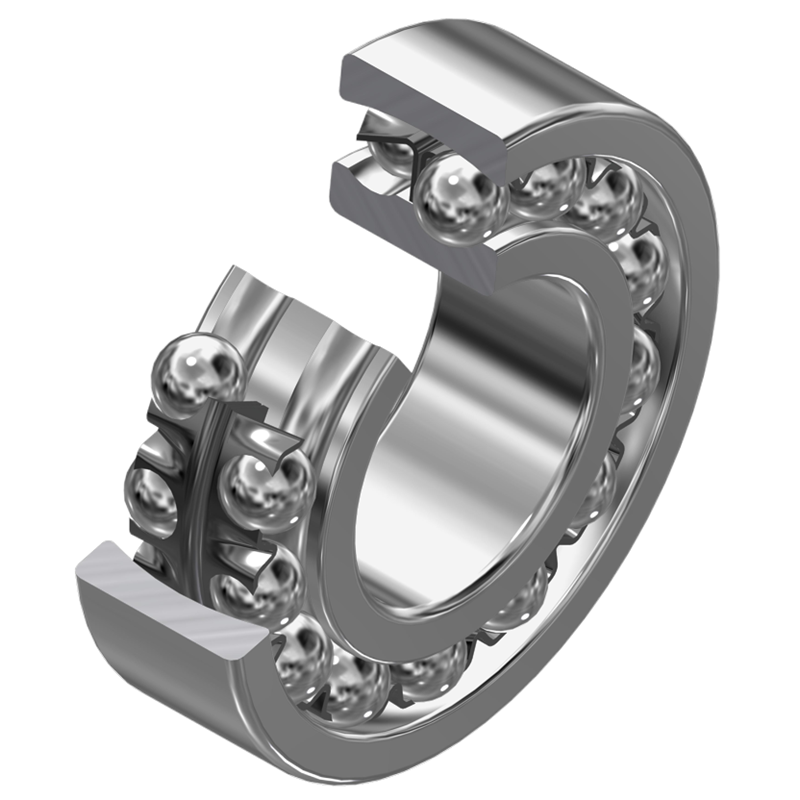

Self-aligning ball bearing 2200, main dimensions according to DIN 617, DIN 630, ISO 15:1998
| SKU |
Description |
Main dimensions |
Functions |
| d |
D |
B |
| mm |
mm |
mm |
| 10095578 |
2200 |
10.00
|
30.00
|
14.00
|
|
| 10095582 |
2201 |
12.00
|
32.00
|
14.00
|
|
| 10095586 |
2202 |
15.00
|
35.00
|
14.00
|
|
| 10095590 |
2203 |
17.00
|
40.00
|
16.00
|
|
| 10095594 |
2204 |
20.00
|
47.00
|
18.00
|
|
| 10095598 |
2205 |
25.00
|
52.00
|
18.00
|
|
| 10095606 |
2206 |
30.00
|
62.00
|
20.00
|
|
| 10095614 |
2207 |
35.00
|
72.00
|
23.00
|
|
| 10095622 |
2208 |
40.00
|
80.00
|
23.00
|
|
| 10095630 |
2209 |
45.00
|
85.00
|
23.00
|
|
| 10095638 |
2210 |
50.00
|
90.00
|
23.00
|
|
| 10095646 |
2211 |
55.00
|
100.00
|
25.00
|
|
| 10095654 |
2212 |
60.00
|
110.00
|
28.00
|
|
| 10095662 |
2213 |
65.00
|
120.00
|
31.00
|
|
| 10095670 |
2214 |
70.00
|
125.00
|
31.00
|
|
| 10095672 |
2215 |
75.00
|
130.00
|
31.00
|
|
| 10095680 |
2216 |
80.00
|
140.00
|
33.00
|
|
| 10095688 |
2217 |
85.00
|
150.00
|
36.00
|
|
| 10095692 |
2218 |
90.00
|
160.00
|
40.00
|
|
| 10095696 |
2219 |
95.00
|
170.00
|
43.00
|
|
| 10095704 |
2220 |
100.00
|
180.00
|
46.00
|
|
| 10095712 |
2222 |
110.00
|
200.00
|
53.00
|
|
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
-
2200-K

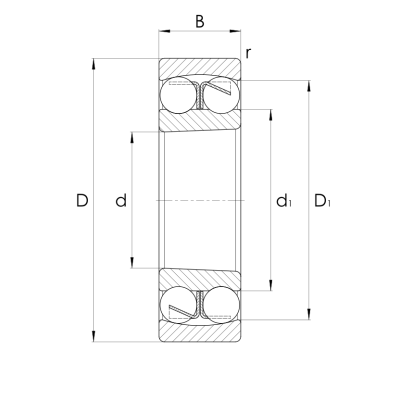

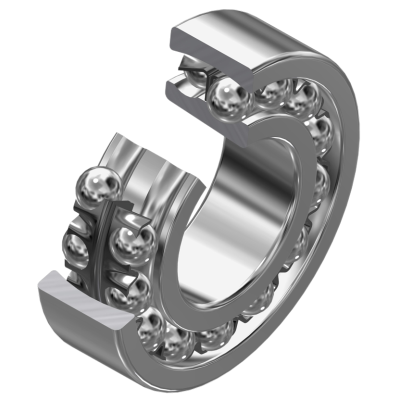

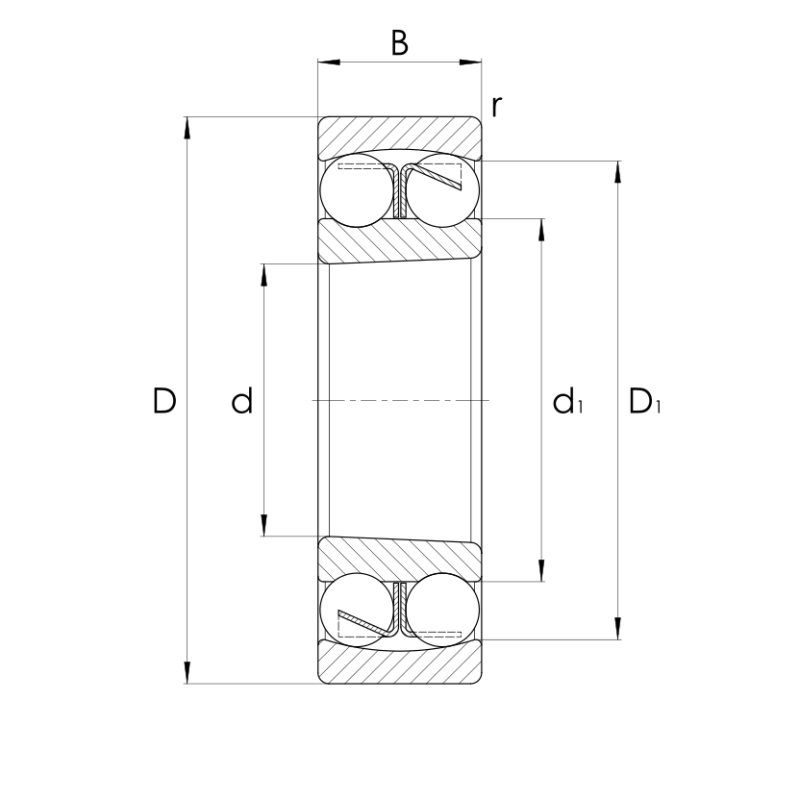

Self-aligning ball bearing 2200-K, main dimensions according to DIN 617, DIN 630, ISO 15:1998
| SKU |
Description |
Main dimensions |
Functions |
| d |
D |
B |
| mm |
mm |
mm |
| 10095600 |
2205-K |
25.00
|
52.00
|
18.00
|
|
| 10095608 |
2206-K |
30.00
|
62.00
|
20.00
|
|
| 10095616 |
2207-K |
35.00
|
72.00
|
23.00
|
|
| 10095624 |
2208-K |
40.00
|
80.00
|
23.00
|
|
| 10095632 |
2209-K |
45.00
|
85.00
|
23.00
|
|
| 10095640 |
2210-K |
50.00
|
90.00
|
23.00
|
|
| 10095648 |
2211-K |
55.00
|
100.00
|
25.00
|
|
| 10095656 |
2212-K |
60.00
|
110.00
|
28.00
|
|
| 10095664 |
2213-K |
65.00
|
120.00
|
31.00
|
|
| 10095674 |
2215-K |
75.00
|
130.00
|
31.00
|
|
| 10095682 |
2216-K |
80.00
|
140.00
|
33.00
|
|
| 10095690 |
2217-K |
85.00
|
150.00
|
36.00
|
|
| 10095694 |
2218-K |
90.00
|
160.00
|
40.00
|
|
| 10095698 |
2219-K |
95.00
|
170.00
|
43.00
|
|
| 10095706 |
2220-K |
100.00
|
180.00
|
46.00
|
|
| 10095714 |
2222-K |
110.00
|
200.00
|
53.00
|
|
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
