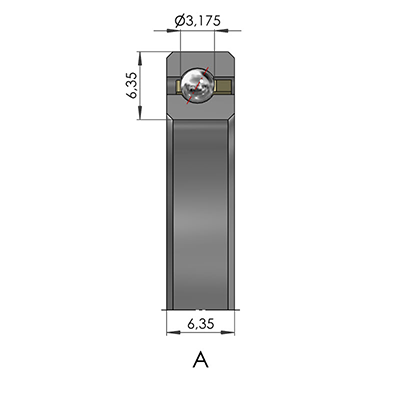

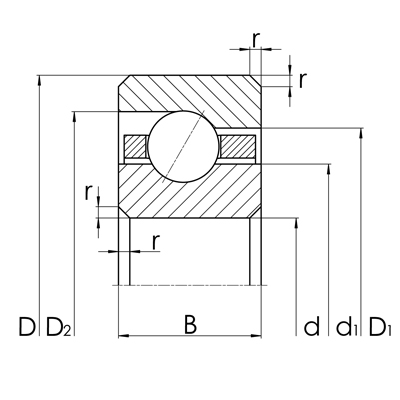

Thin section angular contact ball bearing - CSEA
Thin section bearing - CSEA
Thin section bearing - CSEA
SKU
Description
Main dimensions
Functions
d
D
B
mm
mm
mm
10147389
CSEA020 50.80
63.50
6.35
10147390
CSEA025 63.50
76.20
6.35
10147391
CSEA030 76.20
88.90
6.35
10147392
CSEA035 88.90
101.60
6.35
10147393
CSEA040 101.60
114.30
6.35
10157371
CSEA042 107.95
120.65
6.35
10147394
CSEA045 114.30
127.00
6.35
10147395
CSEA047 120.65
133.35
6.35
10147396
CSEA050 127.00
139.70
6.35
10147397
CSEA055 139.70
152.40
6.35
10147398
CSEA060 152.40
165.10
6.35
10147399
CSEA065 165.10
177.80
6.35
10147400
CSEA070 177.80
190.50
6.35
10147401
CSEA075 190.50
203.20
6.35
10157373
CSEA080 203.20
215.90
6.35
10157375
CSEA090 228.60
241.30
6.35
10157377
CSEA100 254.00
266.70
6.35
10157379
CSEA110 279.40
292.10
6.35
10157381
CSEA120 304.80
317.50
6.35
