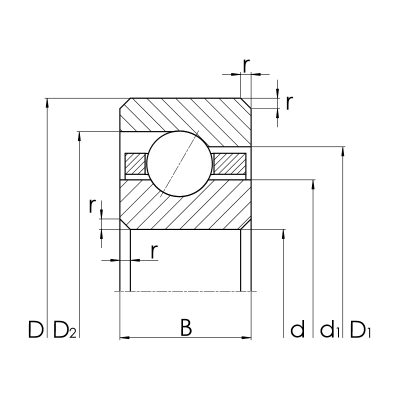

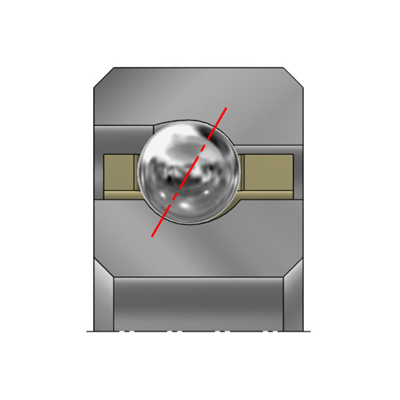

Thin section angular contact ball bearing - 20 mm
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10229332 | K02520AR0 | 25.00 | 65.00 | 20.00 | |
| 10229333 | K05020AR0 | 50.00 | 90.00 | 20.00 | |
| 10229334 | K06020AR0 | 60.00 | 100.00 | 20.00 | |
| 10229335 | K07020AR0 | 70.00 | 110.00 | 20.00 | |
| 10229336 | K08020AR0 | 80.00 | 120.00 | 20.00 | |
| 10229337 | K09020AR0 | 90.00 | 130.00 | 20.00 | |
| 10229338 | K10020AR0 | 100.00 | 140.00 | 20.00 | |
| 10229339 | K11020AR0 | 110.00 | 150.00 | 20.00 | |
| 10229340 | K12020AR0 | 120.00 | 160.00 | 20.00 | |
| 10229341 | K13020AR0 | 130.00 | 170.00 | 20.00 | |
| 10229342 | K14020AR0 | 140.00 | 180.00 | 20.00 | |
| 10229343 | K15020AR0 | 150.00 | 190.00 | 20.00 | |
| 10229344 | K16020AR0 | 160.00 | 200.00 | 20.00 | |
| 10229345 | K17020AR0 | 170.00 | 210.00 | 20.00 | |
| 10229346 | K18020AR0 | 180.00 | 220.00 | 20.00 | |
| 10229347 | K19020AR0 | 190.00 | 230.00 | 20.00 | |
| 10229348 | K20020AR0 | 200.00 | 240.00 | 20.00 | |
| 10229349 | K25020AR0 | 250.00 | 290.00 | 20.00 | |
| 10229350 | K30020AR0 | 300.00 | 340.00 | 20.00 | |
| 10229351 | K32020AR0 | 320.00 | 360.00 | 20.00 | |
| 10229352 | K34020AR0 | 340.00 | 380.00 | 20.00 | |
| 10229353 | K36020AR0 | 360.00 | 400.00 | 20.00 | |
