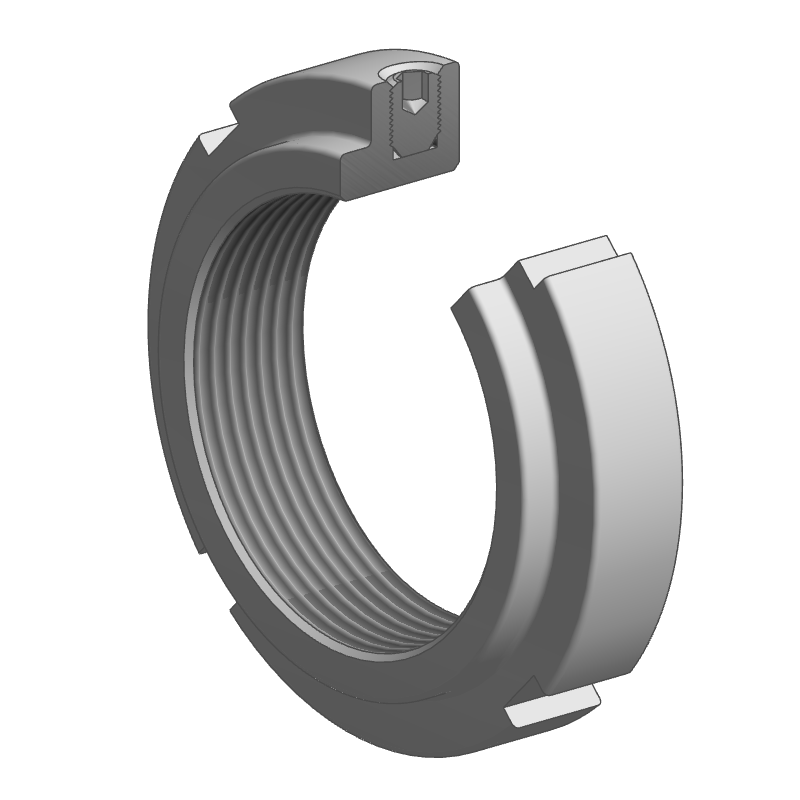

Groove lock nut KMFE with clamping pin

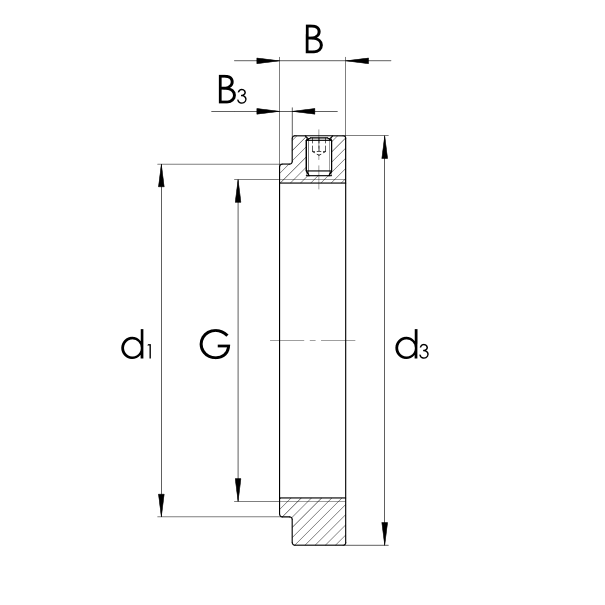

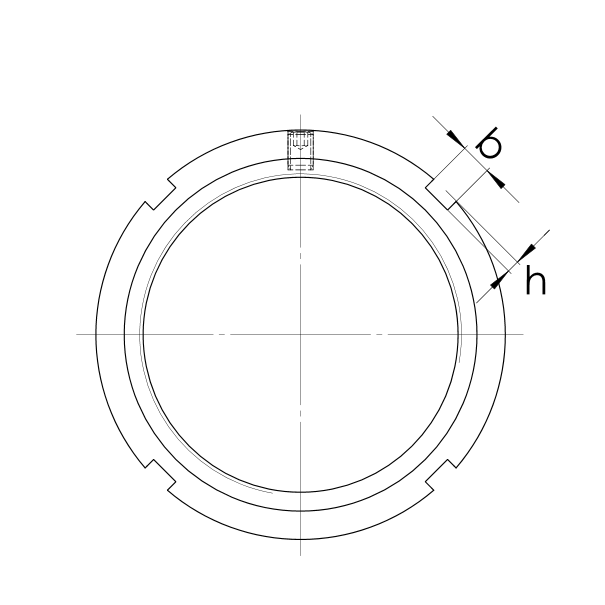

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| G | d[[sub]]1[[/sub]] | B | ||
| mm | mm | |||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| G | d[[sub]]1[[/sub]] | B | |||
| mm | mm | ||||
| 10125642 | KMFE04 | M20x1 | 26.00 | 9.50 | |
| 10213685 | KMFE05L | M25x1,5 | 30.00 | 10.50 | |
| 10125643 | KMFE05 | M25x1,5 | 31.00 | 10.50 | |
| 10125644 | KMFE06 | M30x1,5 | 36.00 | 10.50 | |
| 10213688 | KMFE07L | M35x1,5 | 41.50 | 11.50 | |
| 10125645 | KMFE07 | M35x1,5 | 42.50 | 11.50 | |
| 10125646 | KMFE08 | M40x1,5 | 47.00 | 13.00 | |
| 10213691 | KMFE08H | M40x1,5 | 47.50 | 13.00 | |
| 10125647 | KMFE09 | M45x1,5 | 53.00 | 13.00 | |
| 10213694 | KMFE09H | M45x1,5 | 54.50 | 13.00 | |
| 10125648 | KMFE10 | M50x1,5 | 57.50 | 14.00 | |
| 10213697 | KMFE10H | M50x1,5 | 61.50 | 14.00 | |
| 10125649 | KMFE11 | M55x2 | 64.00 | 14.00 | |
| 10213700 | KMFE11H | M55x2 | 67.00 | 14.00 | |
| 10125650 | KMFE12 | M60x2 | 69.00 | 14.00 | |
| 10213706 | KMFE13L | M65x2 | 71.50 | 15.00 | |
| 10125651 | KMFE13 | M65x2 | 76.00 | 15.00 | |
| 10213703 | KMFE13H | M65x2 | 77.50 | 15.00 | |
| 10125652 | KMFE14 | M70x2 | 79.00 | 15.00 | |
| 10213712 | KMFE15L | M75x2 | 81.50 | 16.00 | |
| 10125653 | KMFE15 | M75x2 | 85.00 | 16.00 | |
| 10213709 | KMFE15H | M75x2 | 87.50 | 16.00 | |
| 10125654 | KMFE16 | M80x2 | 91.50 | 18.00 | |
| 10213715 | KMFE16H | M80x2 | 93.00 | 18.00 | |
| 10125655 | KMFE17 | M85x2 | 98.00 | 19.00 | |
| 10125656 | KMFE18 | M90x2 | 102.00 | 19.00 | |
| 10213718 | KMFE19L | M95x2 | 108.00 | 20.00 | |
| 10213721 | KMFE20L | M100x2 | 110.00 | 21.00 | |
| 10125657 | KMFE19 | M95x2 | 110.00 | 20.00 | |
| 10125658 | KMFE20 | M100x2 | 112.00 | 21.00 | |
| 10213727 | KMFE22L | M110x2 | 119.00 | 21.50 | |
| 10125659 | KMFE22 | M110x2 | 122.00 | 21.50 | |
| 10213724 | KMFE22H | M110x2 | 124.00 | 21.50 | |
| 10125660 | KMFE24 | M120x2 | 130.00 | 26.00 | |
| 10213730 | KMFE24H | M120x2 | 132.00 | 26.00 | |
| 10213733 | KMFE26L | M130x2 | 140.00 | 28.00 | |
| 10125661 | KMFE26 | M130x2 | 141.00 | 28.00 | |
| 10213736 | KMFE28L | M140x2 | 151.00 | 28.00 | |
| 10125662 | KMFE28 | M140x2 | 152.00 | 28.00 | |
| 10125663 | KMFE30 | M150x2 | 162.00 | 30.00 | |
| 10125664 | KMFE32 | M160x3 | 173.00 | 32.00 | |
| 10125665 | KMFE34 | M170x3 | 184.00 | 33.00 | |
| 10125666 | KMFE36 | M180x3 | 194.00 | 34.00 | |
| 10125667 | KMFE38 | M190x3 | 207.00 | 34.00 | |
| 10125668 | KMFE40 | M200x3 | 217.00 | 34.00 | |
