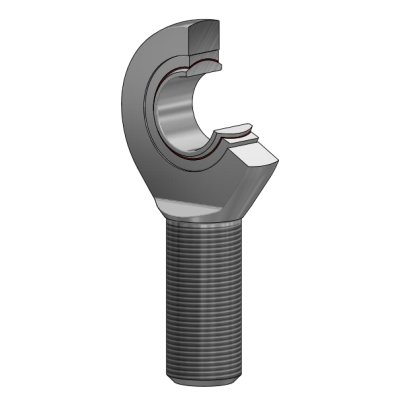

    Radial-Gelenkkopf GAR..UK / GAL..UK nach DIN ISO 12240-4

    • Radial-Gelenkkopf GAR..UK
      Radial-Gelenkkopf GAR..UK
    • Radial-Gelenkkopf GAR..UK
      Radial-Gelenkkopf GAR..UK
    • Radial-Gelenkkopf GAR..UK
      Radial-Gelenkkopf GAR..UK

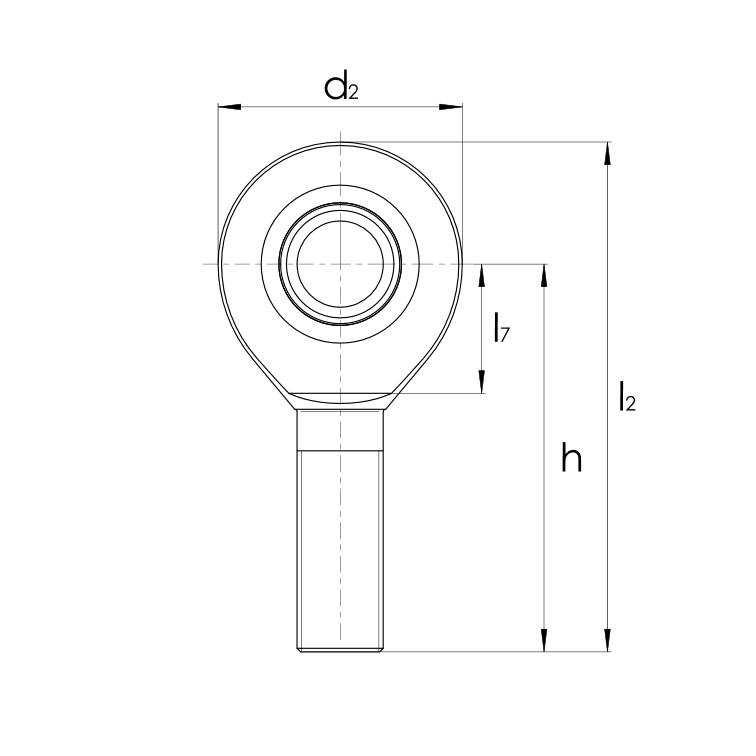

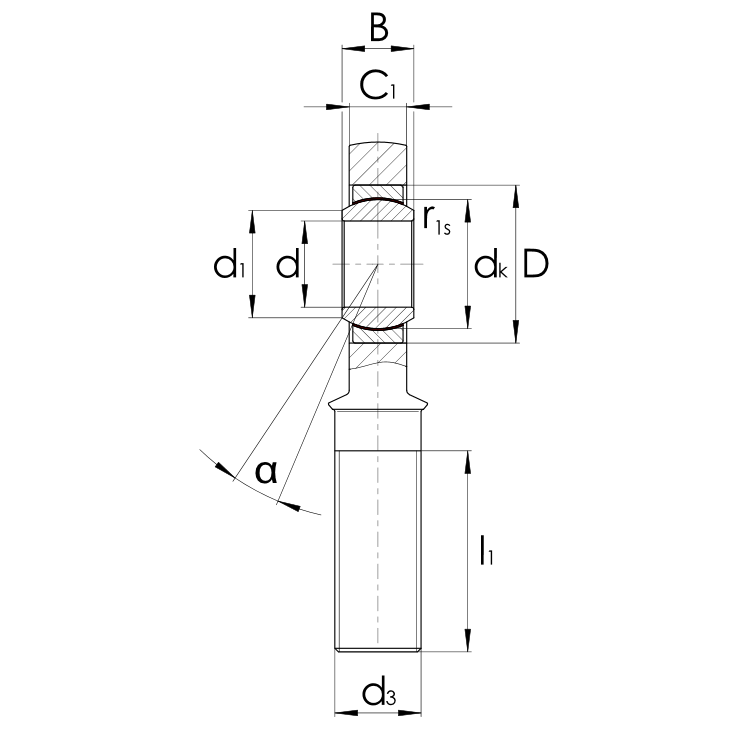

      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10041367 GAR6-UK 6,00 14,00 6,00
      10041373 GAR8-UK 8,00 16,00 8,00
      10041345 GAR10-UK 10,00 19,00 9,00
      10041347 GAR12-UK 12,00 22,00 10,00
      10041349 GAR15-UK 15,00 26,00 12,00
      10041351 GAR17-UK 17,00 30,00 14,00
      10041353 GAR20-UK 20,00 35,00 16,00
      10041355 GAR25-UK 25,00 42,00 20,00
      10041357 GAR30-UK 30,00 47,00 22,00
      10041359 GAR35-UK-2RS 35,00 55,00 25,00
      10041361 GAR40-UK-2RS 40,00 62,00 28,00
      10041363 GAR45-UK-2RS 45,00 68,00 32,00
      10041365 GAR50-UK-2RS 50,00 75,00 35,00
      10041369 GAR60-UK-2RS 60,00 90,00 44,00
      10041371 GAR70-UK-2RS 70,00 105,00 49,00
      10041375 GAR80-UK-2RS 80,00 120,00 55,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • GAL-UK

      Radial-Gelenkkopf GAR..UK / GAL..UK nach DIN ISO 12240-4

      • Radial-Gelenkkopf GAL-UK
        Radial-Gelenkkopf GAL-UK
      • Radial-Gelenkkopf GAL-UK
        Radial-Gelenkkopf GAL-UK
      • Radial-Gelenkkopf GAL-UK
        Radial-Gelenkkopf GAL-UK
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10041335 GAL6-UK 6,00 14,00 6,00
        10041341 GAL8-UK 8,00 16,00 8,00
        10041313 GAL10-UK 10,00 19,00 9,00
        10041315 GAL12-UK 12,00 22,00 10,00
        10041317 GAL15-UK 15,00 26,00 12,00
        10041319 GAL17-UK 17,00 30,00 14,00
        10041321 GAL20-UK 20,00 35,00 16,00
        10041323 GAL25-UK 25,00 42,00 20,00
        10041325 GAL30-UK 30,00 47,00 22,00
        10041327 GAL35-UK-2RS 35,00 55,00 25,00
        10041329 GAL40-UK-2RS 40,00 62,00 28,00
        10041331 GAL45-UK-2RS 45,00 68,00 32,00
        10041333 GAL50-UK-2RS 50,00 75,00 35,00
        10041337 GAL60-UK-2RS 60,00 90,00 44,00
        10041339 GAL70-UK-2RS 70,00 105,00 49,00
        10041343 GAL80-UK-2RS 80,00 120,00 55,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
