Taper-Spannbuchse TB2517 - bis 808 Nm übertragbares Drehmoment, Keilnut DIN 6885

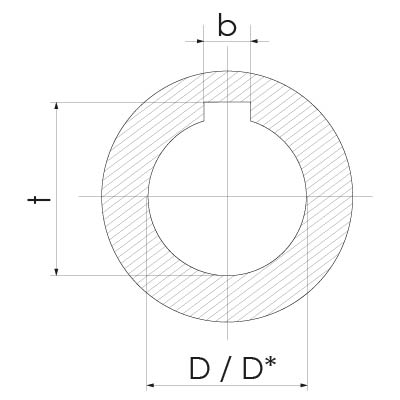

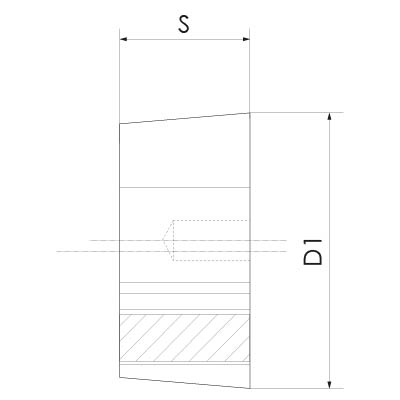

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D1 | t | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D1 | t | |||
| mm | mm | mm | |||
| 10044791 | TB2517-016 | 16,00 | 85,50 | 18,30 | |
| 10044792 | TB2517-018 | 18,00 | 85,50 | 20,80 | |
| 10044793 | TB2517-019 | 19,00 | 85,50 | 21,80 | |
| 10044794 | TB2517-020 | 20,00 | 85,50 | 22,80 | |
| 10044795 | TB2517-022 | 22,00 | 85,50 | 24,80 | |
| 10044796 | TB2517-024 | 24,00 | 85,50 | 27,30 | |
| 10044797 | TB2517-025 | 25,00 | 85,50 | 28,30 | |
| 10044798 | TB2517-028 | 28,00 | 85,50 | 31,30 | |
| 10044799 | TB2517-030 | 30,00 | 85,50 | 33,30 | |
| 10044800 | TB2517-032 | 32,00 | 85,50 | 35,30 | |
| 10044801 | TB2517-035 | 35,00 | 85,50 | 38,30 | |
| 10044802 | TB2517-038 | 38,00 | 85,50 | 41,30 | |
| 10044803 | TB2517-040 | 40,00 | 85,50 | 43,30 | |
| 10044804 | TB2517-042 | 42,00 | 85,50 | 45,30 | |
| 10044805 | TB2517-045 | 45,00 | 85,50 | 48,80 | |
| 10044806 | TB2517-048 | 48,00 | 85,50 | 51,80 | |
| 10044807 | TB2517-050 | 50,00 | 85,50 | 53,80 | |
| 10044808 | TB2517-055 | 55,00 | 85,50 | 59,30 | |
| 10044809 | TB2517-060 | 60,00 | 85,50 | 64,40 | |
| 10044810 | TB2517-065 | 65,00 | 85,50 | 67,80 | |
