Keilriemenscheibe SPA x 05

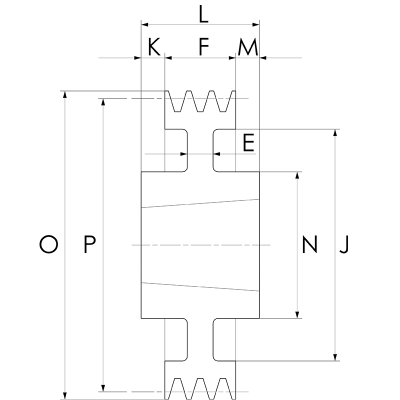

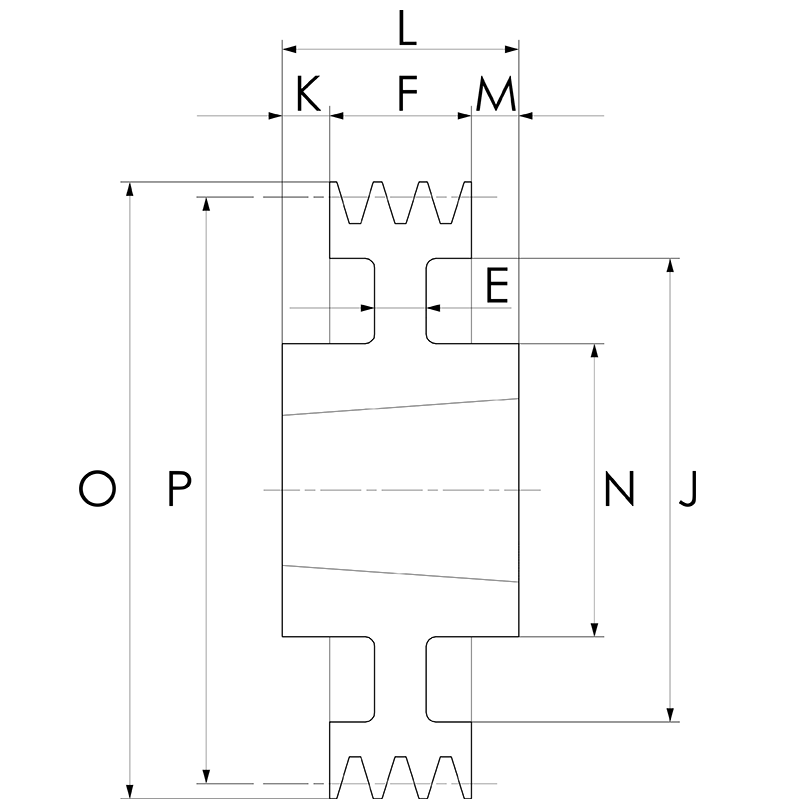

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| L | O | P | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| L | O | P | |||
| mm | mm | mm | |||
| 10051131 | SPA0106x05-2012-F8 | 32,00 | 111,50 | 106,00 | |
| 10051136 | SPA0112x05-2012-F8 | 32,00 | 117,50 | 112,00 | |
| 10051141 | SPA0118x05-2012-F2 | 32,00 | 123,50 | 118,00 | |
| 10051146 | SPA0125x05-2012-F3 | 32,00 | 130,50 | 125,00 | |
| 10051126 | SPA0100x05-1615-F2 | 38,00 | 105,50 | 100,00 | |
| 10051151 | SPA0132x05-2517-F3 | 45,00 | 137,50 | 132,00 | |
| 10051156 | SPA0140x05-2517-F3 | 45,00 | 145,50 | 140,00 | |
| 10051161 | SPA0150x05-2517-F3 | 45,00 | 155,50 | 150,00 | |
| 10051166 | SPA0160x05-2517-F3 | 45,00 | 165,50 | 160,00 | |
| 10051171 | SPA0170x05-2517-F3 | 45,00 | 175,50 | 170,00 | |
| 10051196 | SPA0224x05-3020-F2 | 51,00 | 229,50 | 224,00 | |
| 10051206 | SPA0250x05-3020-F6 | 51,00 | 255,50 | 250,00 | |
| 10051201 | SPA0236x05-3020-F2 | 51,00 | 241,50 | 236,00 | |
| 10051191 | SPA0212x05-3020-F2 | 51,00 | 217,50 | 212,00 | |
| 10051186 | SPA0200x05-3020-F3 | 51,00 | 205,50 | 200,00 | |
| 10051181 | SPA0190x05-3020-F2 | 51,00 | 195,50 | 190,00 | |
| 10051176 | SPA0180x05-3020-F3 | 51,00 | 185,50 | 180,00 | |
| 10051216 | SPA0280x05-3535-F7 | 89,00 | 285,50 | 280,00 | |
| 10051221 | SPA0300x05-3535-F7 | 89,00 | 305,50 | 300,00 | |
| 10051226 | SPA0315x05-3535-F7 | 89,00 | 320,50 | 315,00 | |
| 10051231 | SPA0355x05-3535-F4 | 89,00 | 360,50 | 355,00 | |
| 10051236 | SPA0400x05-3535-F4 | 89,00 | 405,50 | 400,00 | |
| 10051241 | SPA0450x05-3535-F4 | 89,00 | 455,50 | 450,00 | |
| 10051246 | SPA0500x05-3535-F4 | 89,00 | 505,50 | 500,00 | |
| 10051251 | SPA0560x05-3535-F4 | 89,00 | 565,50 | 560,00 | |
| 10051256 | SPA0630x05-3535-F4 | 89,00 | 635,50 | 630,00 | |
| 10051260 | SPA0800x05-4040-F4 | 102,00 | 805,50 | 800,00 | |
| 10140993 | SPA1000x05-4545-F4 | 114,00 | 1.005,50 | 1.000,00 | |
