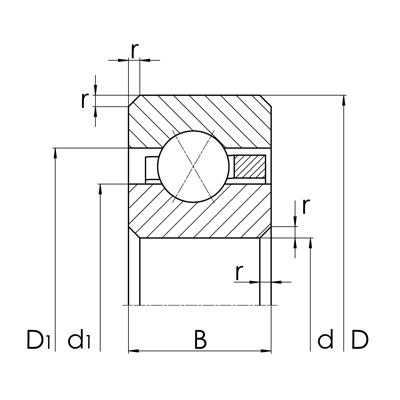

Thin section four-point bearing - CSXB

Thin section bearing - CSXB
Thin section bearing - CSXB

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10147485	CSXB020	50.80	66.68	7.94
10147486	CSXB025	63.50	79.38	7.94
10147487	CSXB030	76.20	92.08	7.94
10147488	CSXB035	88.90	104.78	7.94
10147489	CSXB040	101.60	117.48	7.94
10147490	CSXB042	107.95	123.83	7.94
10147491	CSXB045	114.30	130.18	7.94
10157261	CSXB047	127.00	142.88	7.94
10157263	CSXB050	127.00	142.88	7.94
10147492	CSXB055	139.70	155.58	7.94
10147493	CSXB060	152.40	168.28	7.94
10147494	CSXB065	165.10	180.98	7.94
10157265	CSXB070	177.80	193.68	7.94
10157267	CSXB075	190.50	206.38	7.94
10147495	CSXB080	203.20	219.08	7.94
10157269	CSXB090	228.60	244.48	7.94
10157271	CSXB100	254.00	269.88	7.94
10157273	CSXB110	279.40	295.28	7.94
10157275	CSXB120	304.80	320.68	7.94
10157277	CSXB140	355.60	371.48	7.94
10157279	CSXB160	406.40	422.28	7.94
10157281	CSXB180	457.20	473.08	7.94
10157283	CSXB200	508.00	523.88	7.94

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
