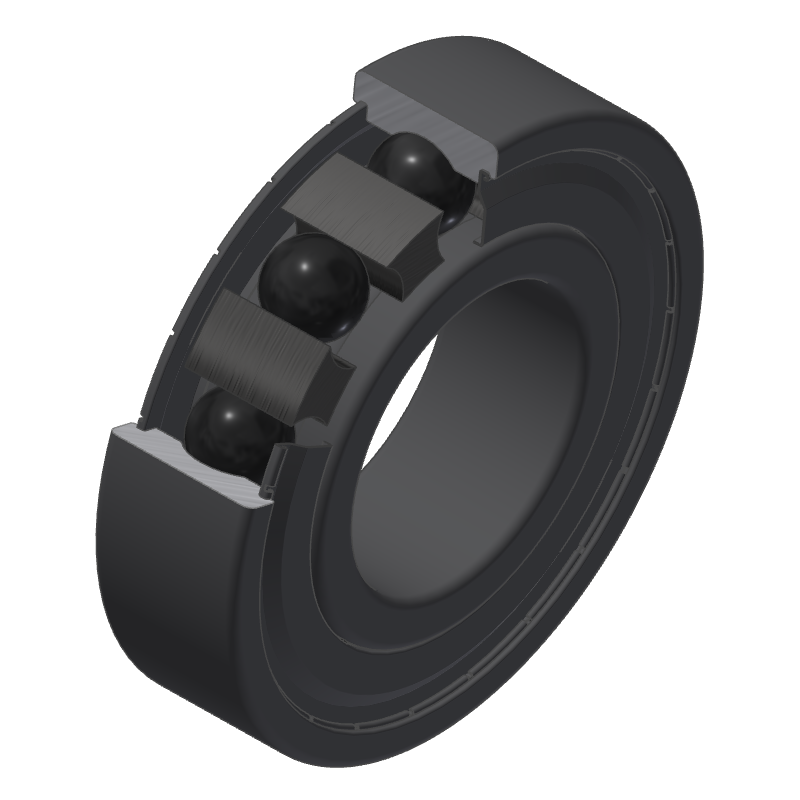

High temp. Deep groove ball bearing 63..-2Z/VA208 für Betriebstemperaturen bis 350 °C

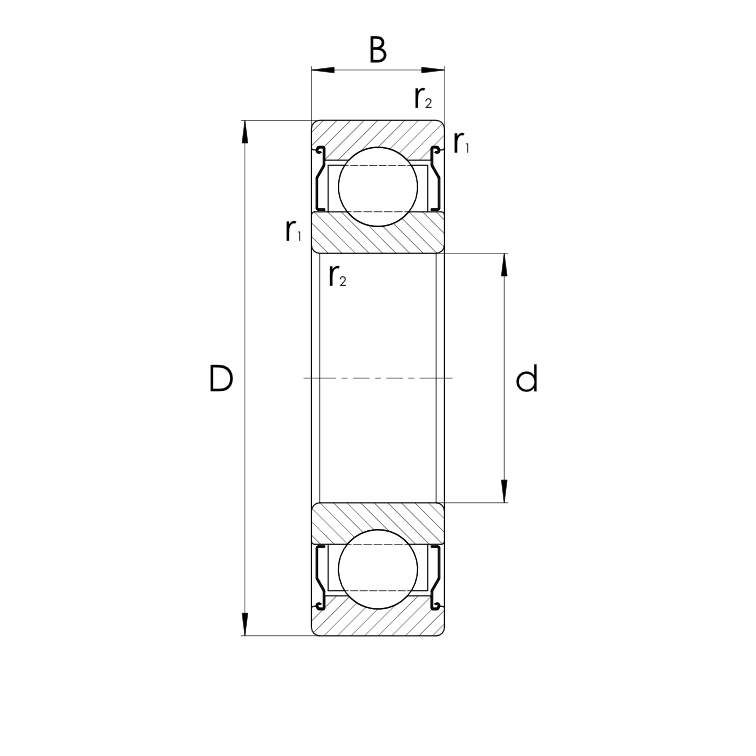

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10148455 | 6304-2Z/VA208 | 20.00 | 52.00 | 15.00 | |
| 10148467 | 6305-2Z/VA208 | 25.00 | 62.00 | 17.00 | |
| 10148473 | 6306-2Z/VA208 | 30.00 | 72.00 | 19.00 | |
| 10148479 | 6307-2Z/VA208 | 35.00 | 80.00 | 21.00 | |
| 10148488 | 6308-2Z/VA208 | 40.00 | 90.00 | 23.00 | |
| 10148494 | 6309-2Z/VA208 | 45.00 | 100.00 | 25.00 | |
| 10147952 | 6310-2Z/VA208 | 50.00 | 110.00 | 27.00 | |
| 10148512 | 6311-2Z/VA208 | 55.00 | 120.00 | 29.00 | |
| 10148518 | 6312-2Z/VA208 | 60.00 | 130.00 | 31.00 | |
| 10148530 | 6313-2Z/VA208 | 65.00 | 140.00 | 33.00 | |
| 10148536 | 6314-2Z/VA208 | 70.00 | 150.00 | 35.00 | |
| 10148539 | 6315-2Z/VA208 | 75.00 | 160.00 | 37.00 | |
| 10148542 | 6316-2Z/VA208 | 80.00 | 170.00 | 39.00 | |
