  • GAKR-PW

    Radial-Gelenkkopf GAKR..PW / GAKL..PW nach DIN ISO 12240-1

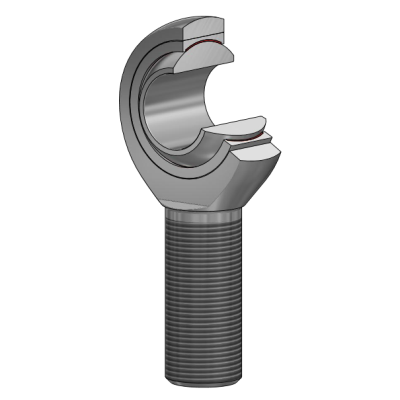

    • Radial-Gelenkkopf GAKR..PW Rechtsgewinde, Außen
      Radial-Gelenkkopf GAKR..PW Rechtsgewinde, Außen
    • Radial-Gelenkkopf GAKR..PW Rechtsgewinde, Außen
      Radial-Gelenkkopf GAKR..PW Rechtsgewinde, Außen
    • Radial-Gelenkkopf GAKR..PW Rechtsgewinde, Außen
      Radial-Gelenkkopf GAKR..PW Rechtsgewinde, Außen

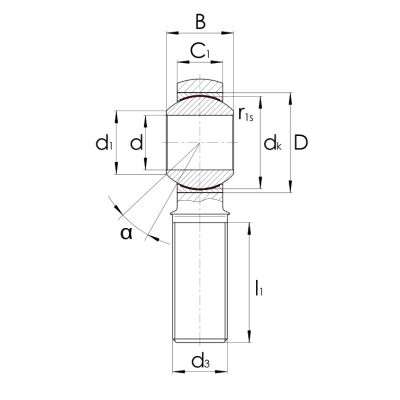

      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10041307 GAKR5-PW 5,00 13,00 8,00
      10041309 GAKR6-PW 6,00 16,00 9,00
      10041311 GAKR8-PW 8,00 19,00 12,00
      10041289 GAKR10-PW 10,00 22,00 14,00
      10041291 GAKR12-PW 12,00 26,00 16,00
      10041293 GAKR14-PW 14,00 28,00 19,00
      10041295 GAKR16-PW 16,00 32,00 21,00
      10041297 GAKR18-PW 18,00 35,00 23,00
      10041299 GAKR20-PW 20,00 40,00 25,00
      10041301 GAKR22-PW 22,00 42,00 28,00
      10041303 GAKR25-PW 25,00 47,00 31,00
      10041305 GAKR30-PW 30,00 55,00 37,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • GAKL-PW

      Radial-Gelenkkopf GAKR..PW / GAKL..PW nach DIN ISO 12240-1

      • Radial-Gelenkkopf GAKL..PW Linksgewinde, Außen
        Radial-Gelenkkopf GAKL..PW Linksgewinde, Außen
      • Radial-Gelenkkopf GAKL..PW Linksgewinde, Außen
        Radial-Gelenkkopf GAKL..PW Linksgewinde, Außen
      • Radial-Gelenkkopf GAKL..PW Linksgewinde, Außen
        Radial-Gelenkkopf GAKL..PW Linksgewinde, Außen
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10041283 GAKL5-PW 5,00 13,00 8,00
        10041285 GAKL6-PW 6,00 16,00 9,00
        10041287 GAKL8-PW 8,00 19,00 12,00
        10041265 GAKL10-PW 10,00 22,00 14,00
        10041267 GAKL12-PW 12,00 26,00 16,00
        10041269 GAKL14-PW 14,00 28,00 19,00
        10041271 GAKL16-PW 16,00 32,00 21,00
        10041273 GAKL18-PW 18,00 35,00 23,00
        10041275 GAKL20-PW 20,00 40,00 25,00
        10041277 GAKL22-PW 22,00 42,00 28,00
        10041279 GAKL25-PW 25,00 47,00 31,00
        10041281 GAKL30-PW 30,00 55,00 37,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
