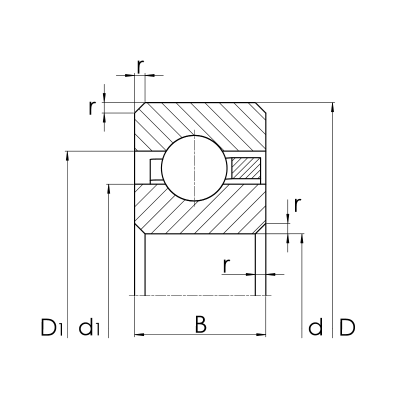

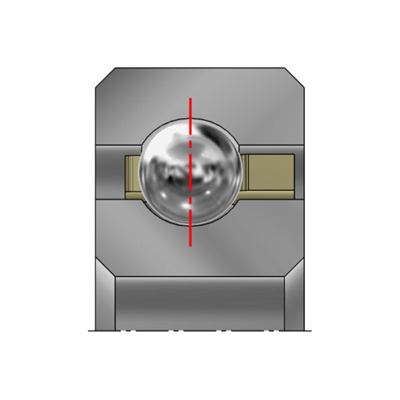

Thin section deep groove ball bearing - 13,00 mm
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10229390 | K02513CP0 | 25.00 | 51.00 | 13.00 | |
| 10229391 | K05013CP0 | 50.00 | 76.00 | 13.00 | |
| 10229392 | K06013CP0 | 60.00 | 86.00 | 13.00 | |
| 10229393 | K07013CP0 | 70.00 | 96.00 | 13.00 | |
| 10229394 | K08013CP0 | 80.00 | 106.00 | 13.00 | |
| 10229395 | K09013CP0 | 90.00 | 116.00 | 13.00 | |
| 10229396 | K10013CP0 | 100.00 | 126.00 | 13.00 | |
| 10229397 | K11013CP0 | 110.00 | 136.00 | 13.00 | |
| 10229398 | K12013CP0 | 120.00 | 146.00 | 13.00 | |
| 10229399 | K13013CP0 | 130.00 | 156.00 | 13.00 | |
| 10229400 | K14013CP0 | 140.00 | 166.00 | 13.00 | |
| 10229401 | K15013CP0 | 150.00 | 176.00 | 13.00 | |
| 10229402 | K16013CP0 | 160.00 | 186.00 | 13.00 | |
| 10229403 | K17013CP0 | 170.00 | 196.00 | 13.00 | |
| 10229404 | K18013CP0 | 180.00 | 206.00 | 13.00 | |
| 10229405 | K19013CP0 | 190.00 | 216.00 | 13.00 | |
| 10229406 | K20013CP0 | 200.00 | 226.00 | 13.00 | |
| 10229407 | K25013CP0 | 250.00 | 276.00 | 13.00 | |
| 10229408 | K30013CP0 | 300.00 | 326.00 | 13.00 | |
| 10229409 | K32013CP0 | 320.00 | 346.00 | 13.00 | |
| 10229410 | K34013CP0 | 340.00 | 366.00 | 13.00 | |
| 10229411 | K36013CP0 | 360.00 | 386.00 | 13.00 | |
