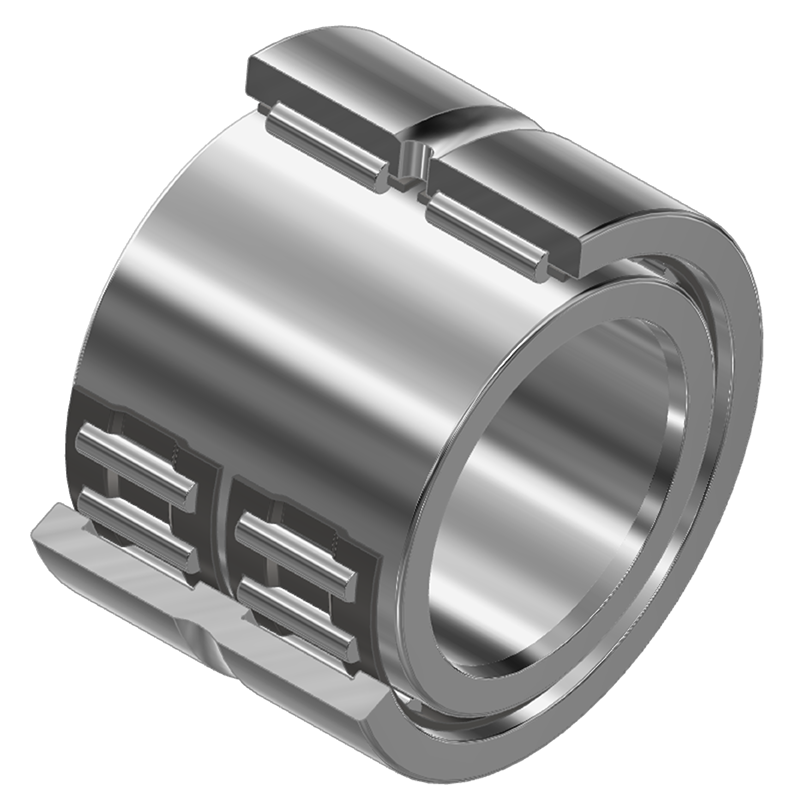

Nadellager NA69, Abmessungen nach DIN 617-1 / ISO 1206

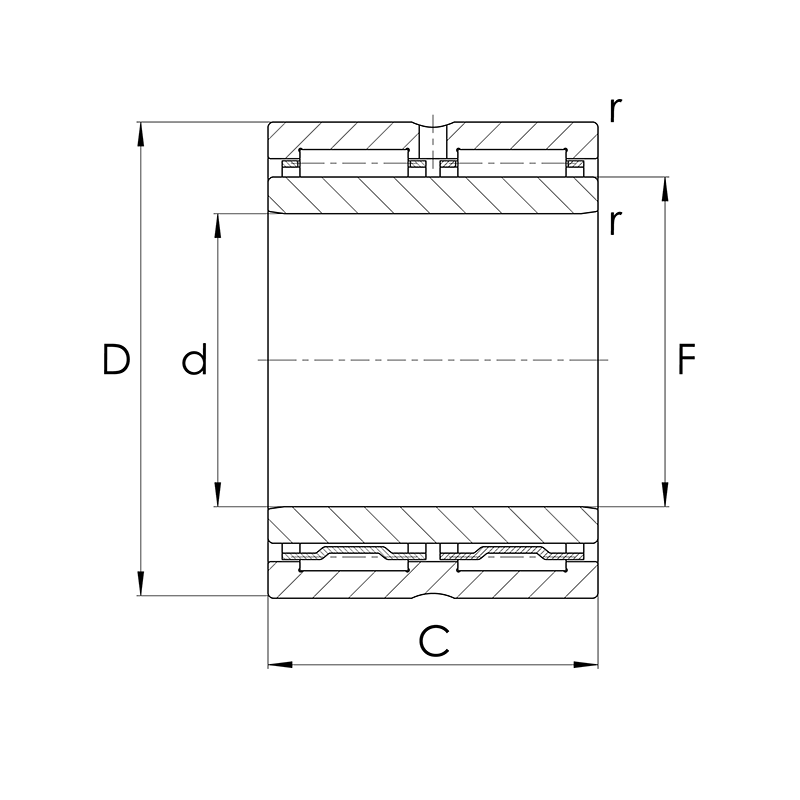

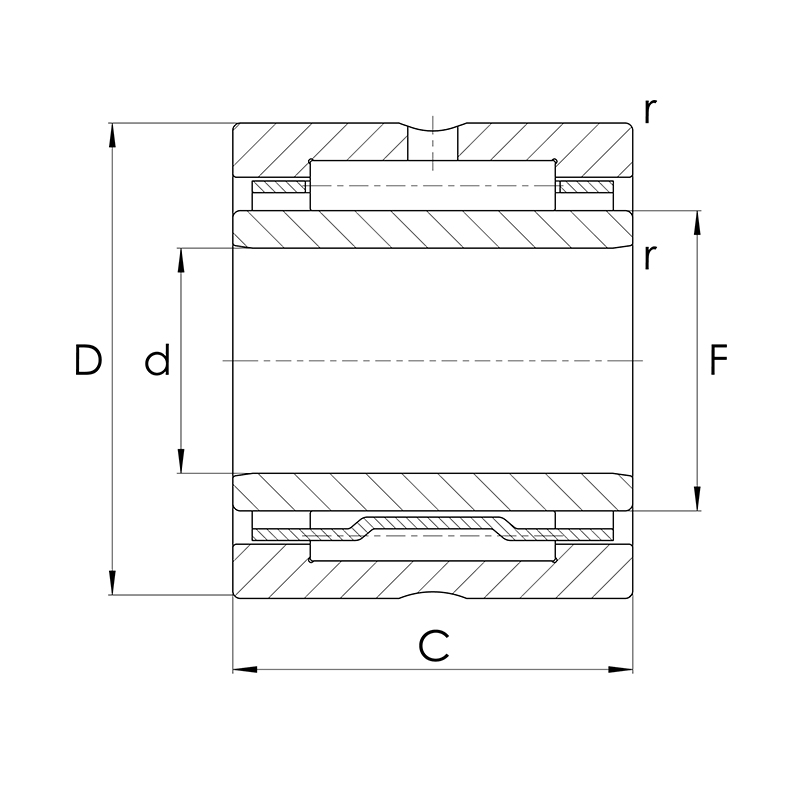

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | C | |||
| mm | mm | mm | |||
| 10040971 | NA6901 | 12,00 | 24,00 | 22,00 | |
| 10040972 | NA6902 | 15,00 | 28,00 | 23,00 | |
| 10040973 | NA6903 | 17,00 | 30,00 | 23,00 | |
| 10040974 | NA6904 | 20,00 | 37,00 | 30,00 | |
| 10040969 | NA69/22 | 22,00 | 39,00 | 30,00 | |
| 10040975 | NA6905 | 25,00 | 42,00 | 30,00 | |
| 10040970 | NA69/28 | 28,00 | 45,00 | 30,00 | |
| 10040976 | NA6906 | 30,00 | 47,00 | 30,00 | |
| 10318402 | NA69/32-ZW | 32,00 | 52,00 | 36,00 | |
| 10040977 | NA6907-ZW | 35,00 | 55,00 | 36,00 | |
| 10040978 | NA6908-ZW | 40,00 | 62,00 | 40,00 | |
| 10040979 | NA6909-ZW | 45,00 | 68,00 | 40,00 | |
| 10040980 | NA6910-ZW | 50,00 | 72,00 | 40,00 | |
| 10040981 | NA6911-ZW | 55,00 | 80,00 | 45,00 | |
| 10040982 | NA6912-ZW | 60,00 | 85,00 | 45,00 | |
| 10040983 | NA6913-ZW | 65,00 | 90,00 | 45,00 | |
| 10040984 | NA6914-ZW | 70,00 | 100,00 | 54,00 | |
| 10040985 | NA6915-ZW | 75,00 | 105,00 | 54,00 | |
| 10040986 | NA6916-ZW | 80,00 | 110,00 | 54,00 | |
| 10040987 | NA6917-ZW | 85,00 | 120,00 | 63,00 | |
| 10040988 | NA6918-ZW | 90,00 | 125,00 | 63,00 | |
| 10040989 | NA6919-ZW | 95,00 | 130,00 | 63,00 | |
