Stehlagergehäuse GG51 für SL05 und SL06

  • Stehlagergehäuse GG51 für SL05 und SL06
    Stehlagergehäuse GG51 für SL05 und SL06
  • Stehlagergehäuse GG51 für SL05 und SL06
    Stehlagergehäuse GG51 für SL05 und SL06
  • Stehlagergehäuse GG51 für SL05 und SL06
    Stehlagergehäuse GG51 für SL05 und SL06

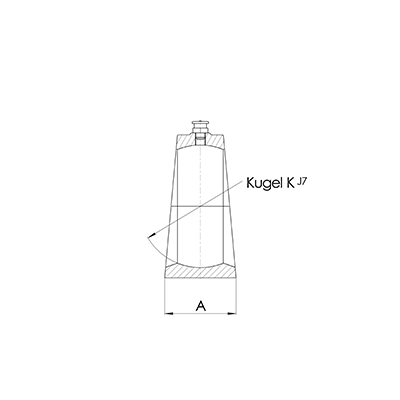

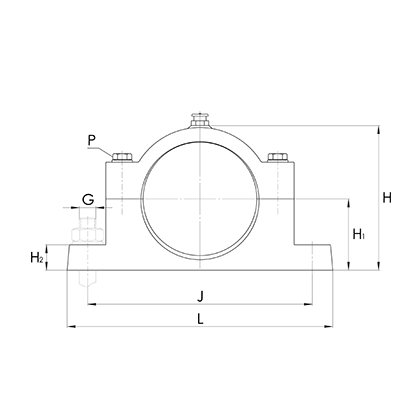

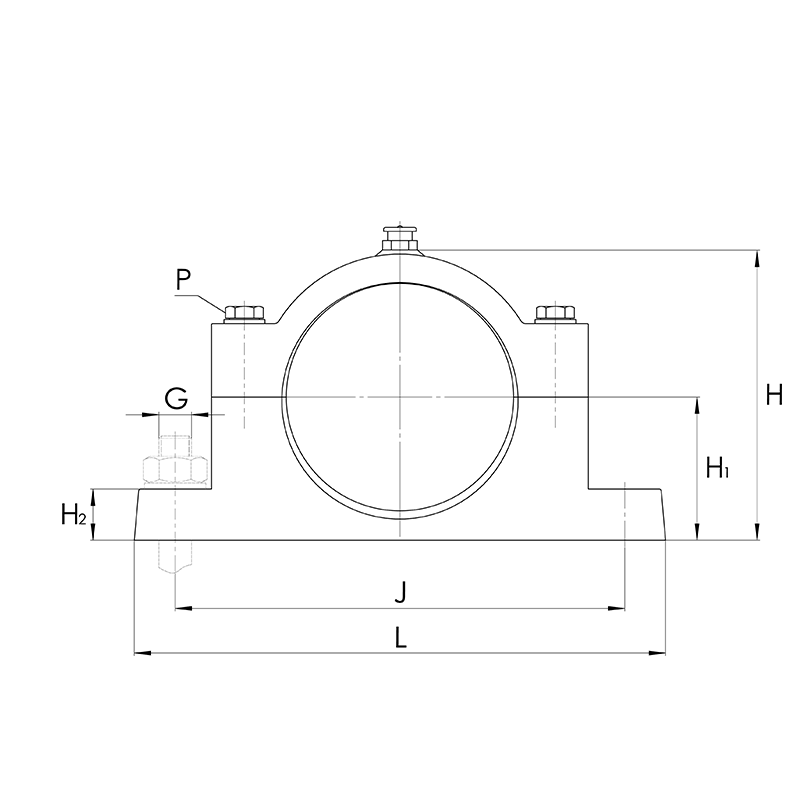

    Description Main dimensions Functions
    K H H1
    mm mm mm
    SKU Description Main dimensions Functions
    K H H1
    mm mm mm
    10226092 GG51120 120,00 142,00 70,00
    10226093 GG51140 140,00 175,00 90,00
    10226094 GG51150 150,00 185,00 95,00
    10226095 GG51170 170,00 208,00 105,00
    10226096 GG51180 180,00 220,00 110,00
    10226097 GG51200 200,00 245,00 125,00
    10226098 GG51210 210,00 255,00 130,00
    10226099 GG51225 225,00 275,00 140,00
    10226100 GG51240 240,00 295,00 150,00
    10226101 GG51260 260,00 325,00 160,00
    10226102 GG51280 280,00 350,00 175,00
    10226103 GG51290 290,00 360,00 180,00
    10226104 GG51310 310,00 380,00 190,00
    10226105 GG51340 340,00 415,00 210,00
    10226106 GG51360 360,00 445,00 230,00
    10279847 GG51400 400,00 495,00 250,00
    10279848 GG51420 420,00 520,00 260,00
    10279849 GG51460 460,00 560,00 280,00
    10279850 GG51480 480,00 580,00 290,00
    10279851 GG51520 520,00 640,00 320,00
    10279852 GG51540 540,00 670,00 335,00
    10279853 GG51560 560,00 690,00 345,00
    10279854 GG51600 600,00 740,00 370,00
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
