B72
B72-2RSD

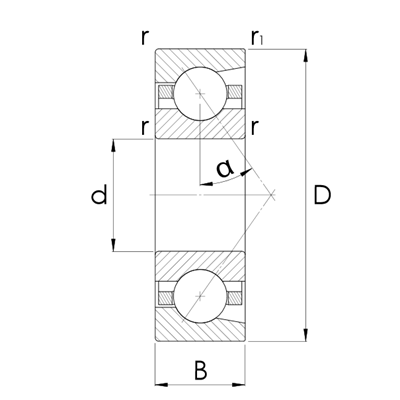

B72

Spindle bearing B72 - heavy serie

Spindle bearing B72
Spindle bearing B72
Spindle bearing B72

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10042614	B7200-E-T-P4S-UL	10.00	30.00	9.00
10042613	B7200-C-T-P4S-UL	10.00	30.00	9.00
10042616	B7201-E-T-P4S-UL	12.00	32.00	10.00
10042615	B7201-C-T-P4S-UL	12.00	32.00	10.00
10042617	B7202-C-T-P4S-UL	15.00	35.00	11.00
10042618	B7202-E-T-P4S-UL	15.00	35.00	11.00
10042619	B7203-C-T-P4S-UL	17.00	40.00	12.00
10042620	B7203-E-T-P4S-UL	17.00	40.00	12.00
10042621	B7204-C-T-P4S-UL	20.00	47.00	14.00
10042622	B7204-E-T-P4S-UL	20.00	47.00	14.00
10042623	B7205-C-T-P4S-UL	25.00	52.00	15.00
10042624	B7205-E-T-P4S-UL	25.00	52.00	15.00
10042625	B7206-C-T-P4S-UL	30.00	62.00	16.00
10042626	B7206-E-T-P4S-UL	30.00	62.00	16.00
10042627	B7207-C-T-P4S-UL	35.00	72.00	17.00
10042628	B7207-E-T-P4S-UL	35.00	72.00	17.00
10042629	B7208-C-T-P4S-UL	40.00	80.00	18.00
10042630	B7208-E-T-P4S-UL	40.00	80.00	18.00
10042631	B7209-C-T-P4S-UL	45.00	85.00	19.00
10042632	B7209-E-T-P4S-UL	45.00	85.00	19.00
10042633	B7210-C-T-P4S-UL	50.00	90.00	20.00
10042634	B7210-E-T-P4S-UL	50.00	90.00	20.00
10042635	B7211-C-T-P4S-UL	55.00	100.00	21.00
10042636	B7211-E-T-P4S-UL	55.00	100.00	21.00
10042637	B7212-C-T-P4S-UL	60.00	110.00	22.00
10042638	B7212-E-T-P4S-UL	60.00	110.00	22.00
10042639	B7213-C-T-P4S-UL	65.00	120.00	23.00
10042640	B7213-E-T-P4S-UL	65.00	120.00	23.00
10042641	B7214-C-T-P4S-UL	70.00	125.00	24.00
10042642	B7214-E-T-P4S-UL	70.00	125.00	24.00
10042644	B7215-E-T-P4S-UL	75.00	130.00	25.00
10042643	B7215-C-T-P4S-UL	75.00	130.00	25.00
10042645	B7216-C-T-P4S-UL	80.00	140.00	26.00
10042646	B7216-E-T-P4S-UL	80.00	140.00	26.00
10042647	B7217-C-T-P4S-UL	85.00	150.00	28.00
10042648	B7217-E-T-P4S-UL	85.00	150.00	28.00
10042649	B7218-C-T-P4S-UL	90.00	160.00	30.00
10042650	B7218-E-T-P4S-UL	90.00	160.00	30.00
10042651	B7219-C-T-P4S-UL	95.00	170.00	32.00
10042652	B7219-E-T-P4S-UL	95.00	170.00	32.00
10042653	B7220-C-T-P4S-UL	100.00	180.00	34.00
10042654	B7220-E-T-P4S-UL	100.00	180.00	34.00
10042655	B7221-C-T-P4S-UL	105.00	190.00	36.00
10042656	B7221-E-T-P4S-UL	105.00	190.00	36.00
10042657	B7222-C-T-P4S-UL	110.00	200.00	38.00
10042658	B7222-E-T-P4S-UL	110.00	200.00	38.00
10042659	B7224-C-T-P4S-UL	120.00	215.00	40.00
10042660	B7224-E-T-P4S-UL	120.00	215.00	40.00
10042661	B7226-C-T-P4S-UL	130.00	230.00	40.00
10042662	B7226-E-T-P4S-UL	130.00	230.00	40.00
10042665	B7230-C-T-P4S-UL	150.00	270.00	45.00
10042666	B7230-E-T-P4S-UL	150.00	270.00	45.00
10042669	B7234-C-T-P4S-UL	170.00	310.00	52.00
10042670	B7234-E-T-P4S-UL	170.00	310.00	52.00
10042671	B7236-C-T-P4S-UL	180.00	320.00	52.00
10042672	B7236-E-T-P4S-UL	180.00	320.00	52.00
10042673	B7238-C-T-P4S-UL	190.00	340.00	55.00
10042674	B7238-E-T-P4S-UL	190.00	340.00	55.00
10042675	B7240-C-T-P4S-UL	200.00	360.00	58.00
10042676	B7240-E-T-P4S-UL	200.00	360.00	58.00
10042677	B7244-C-T-P4S-UL	220.00	400.00	65.00
10042678	B7244-E-T-P4S-UL	220.00	400.00	65.00

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

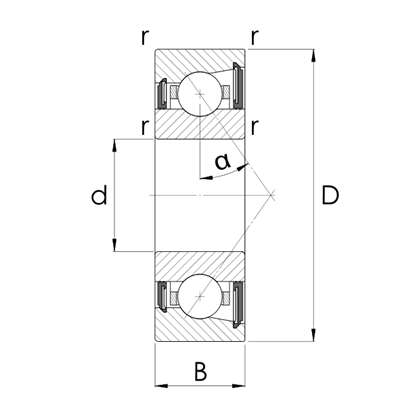

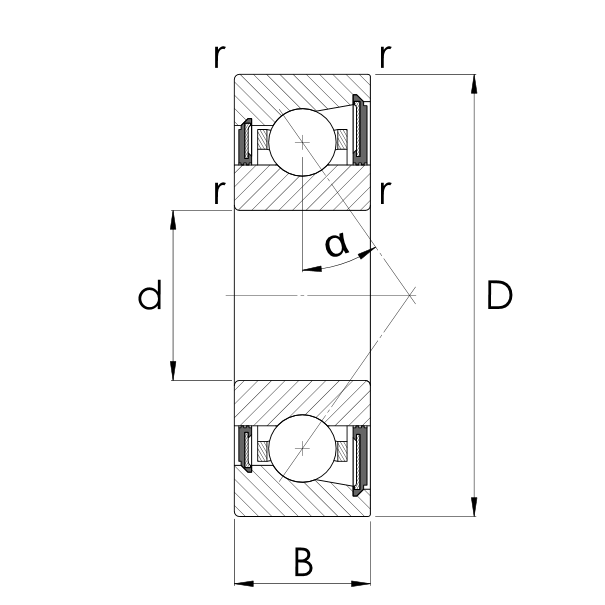

B72-2RSD

Spindle bearing B72 - heavy serie

Spindle bearing B72-2RSD
Spindle bearing B72-2RSD
Spindle bearing B72-2RSD

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10419424	B7200-E-2RSD-T-P4S-UL	10.00	30.00	9.00
10419395	B7200-C-2RSD-T-P4S-UL	10.00	30.00	9.00
10419482	B7201-E-2RSD-T-P4S-UL	12.00	32.00	10.00
10419453	B7201-C-2RSD-T-P4S-UL	12.00	32.00	10.00
10419511	B7202-C-2RSD-T-P4S-UL	15.00	35.00	11.00
10419538	B7202-E-2RSD-T-P4S-UL	15.00	35.00	11.00
10419565	B7203-C-2RSD-T-P4S-UL	17.00	40.00	12.00
10419592	B7203-E-2RSD-T-P4S-UL	17.00	40.00	12.00
10419619	B7204-C-2RSD-T-P4S-UL	20.00	47.00	14.00
10419646	B7204-E-2RSD-T-P4S-UL	20.00	47.00	14.00
10419673	B7205-C-2RSD-T-P4S-UL	25.00	52.00	15.00
10419700	B7205-E-2RSD-T-P4S-UL	25.00	52.00	15.00
10419727	B7206-C-2RSD-T-P4S-UL	30.00	62.00	16.00
10419754	B7206-E-2RSD-T-P4S-UL	30.00	62.00	16.00
10419781	B7207-C-2RSD-T-P4S-UL	35.00	72.00	17.00
10419808	B7207-E-2RSD-T-P4S-UL	35.00	72.00	17.00
10419835	B7208-C-2RSD-T-P4S-UL	40.00	80.00	18.00
10419862	B7208-E-2RSD-T-P4S-UL	40.00	80.00	18.00
10419889	B7209-C-2RSD-T-P4S-UL	45.00	85.00	19.00
10419916	B7209-E-2RSD-T-P4S-UL	45.00	85.00	19.00
10419943	B7210-C-2RSD-T-P4S-UL	50.00	90.00	20.00
10419970	B7210-E-2RSD-T-P4S-UL	50.00	90.00	20.00
10419997	B7211-C-2RSD-T-P4S-UL	55.00	100.00	21.00
10420024	B7211-E-2RSD-T-P4S-UL	55.00	100.00	21.00
10420051	B7212-C-2RSD-T-P4S-UL	60.00	110.00	22.00
10420078	B7212-E-2RSD-T-P4S-UL	60.00	110.00	22.00
10420105	B7213-C-2RSD-T-P4S-UL	65.00	120.00	23.00
10420132	B7213-E-2RSD-T-P4S-UL	65.00	120.00	23.00
10420159	B7214-C-2RSD-T-P4S-UL	70.00	125.00	24.00
10420186	B7214-E-2RSD-T-P4S-UL	70.00	125.00	24.00
10420240	B7215-E-2RSD-T-P4S-UL	75.00	130.00	25.00
10420213	B7215-C-2RSD-T-P4S-UL	75.00	130.00	25.00
10420267	B7216-C-2RSD-T-P4S-UL	80.00	140.00	26.00
10420294	B7216-E-2RSD-T-P4S-UL	80.00	140.00	26.00
10420321	B7217-C-2RSD-T-P4S-UL	85.00	150.00	28.00
10420348	B7217-E-2RSD-T-P4S-UL	85.00	150.00	28.00
10420375	B7218-C-2RSD-T-P4S-UL	90.00	160.00	30.00
10420402	B7218-E-2RSD-T-P4S-UL	90.00	160.00	30.00
10420429	B7219-C-2RSD-T-P4S-UL	95.00	170.00	32.00
10420456	B7219-E-2RSD-T-P4S-UL	95.00	170.00	32.00
10420483	B7220-C-2RSD-T-P4S-UL	100.00	180.00	34.00
10420510	B7220-E-2RSD-T-P4S-UL	100.00	180.00	34.00
10420537	B7221-C-2RSD-T-P4S-UL	105.00	190.00	36.00
10420564	B7221-E-2RSD-T-P4S-UL	105.00	190.00	36.00
10420591	B7222-C-2RSD-T-P4S-UL	110.00	200.00	38.00
10420618	B7222-E-2RSD-T-P4S-UL	110.00	200.00	38.00
10420645	B7224-C-2RSD-T-P4S-UL	120.00	215.00	40.00
10420672	B7224-E-2RSD-T-P4S-UL	120.00	215.00	40.00
10420699	B7226-C-2RSD-T-P4S-UL	130.00	230.00	40.00
10420726	B7226-E-2RSD-T-P4S-UL	130.00	230.00	40.00
10420811	B7230-C-2RSD-T-P4S-UL	150.00	270.00	45.00
10420840	B7230-E-2RSD-T-P4S-UL	150.00	270.00	45.00
10420927	B7234-C-2RSD-T-P4S-UL	170.00	310.00	52.00
10420956	B7234-E-2RSD-T-P4S-UL	170.00	310.00	52.00
10420985	B7236-C-2RSD-T-P4S-UL	180.00	320.00	52.00
10421014	B7236-E-2RSD-T-P4S-UL	180.00	320.00	52.00
10421042	B7238-C-2RSD-T-P4S-UL	190.00	340.00	55.00
10421071	B7238-E-2RSD-T-P4S-UL	190.00	340.00	55.00
10421100	B7240-C-2RSD-T-P4S-UL	200.00	360.00	58.00
10421129	B7240-E-2RSD-T-P4S-UL	200.00	360.00	58.00
10421157	B7244-C-2RSD-T-P4S-UL	220.00	400.00	65.00
10421186	B7244-E-2RSD-T-P4S-UL	220.00	400.00	65.00

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

Please note that the spindle bearings listed above only represent the smallest basic variant of many. Further variants are available in the online data sheet in the "Variants" tab. Please also note our technical information in the
