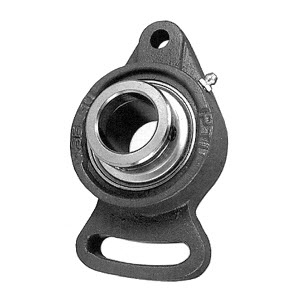

Flanschlager WSFL

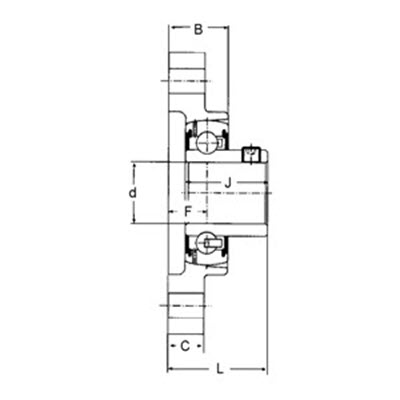

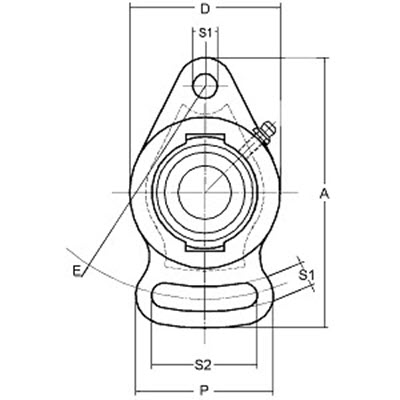

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 30000566 | WSFL20 | 20,00 | 60,00 | 26,00 | |
| 30000567 | WSFL25 | 25,00 | 70,00 | 27,00 | |
| 30000568 | WSFL30 | 30,00 | 80,00 | 31,00 | |
| 30000569 | WSFL35 | 35,00 | 90,00 | 34,00 | |
| 30000570 | WSFL40 | 40,00 | 100,00 | 36,00 | |
| 30000571 | WSFL45 | 45,00 | 110,00 | 38,00 | |
| 30000572 | WSFL50 | 50,00 | 115,00 | 40,00 | |
