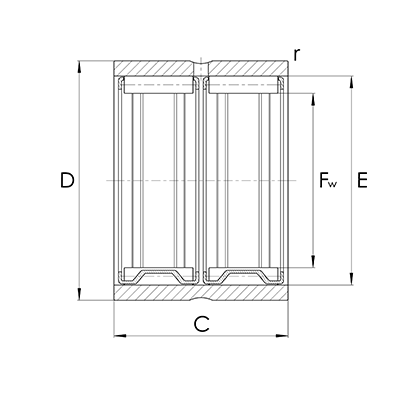

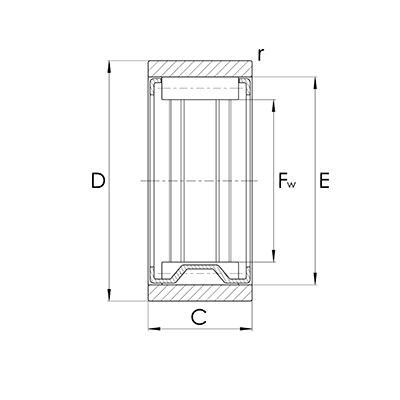

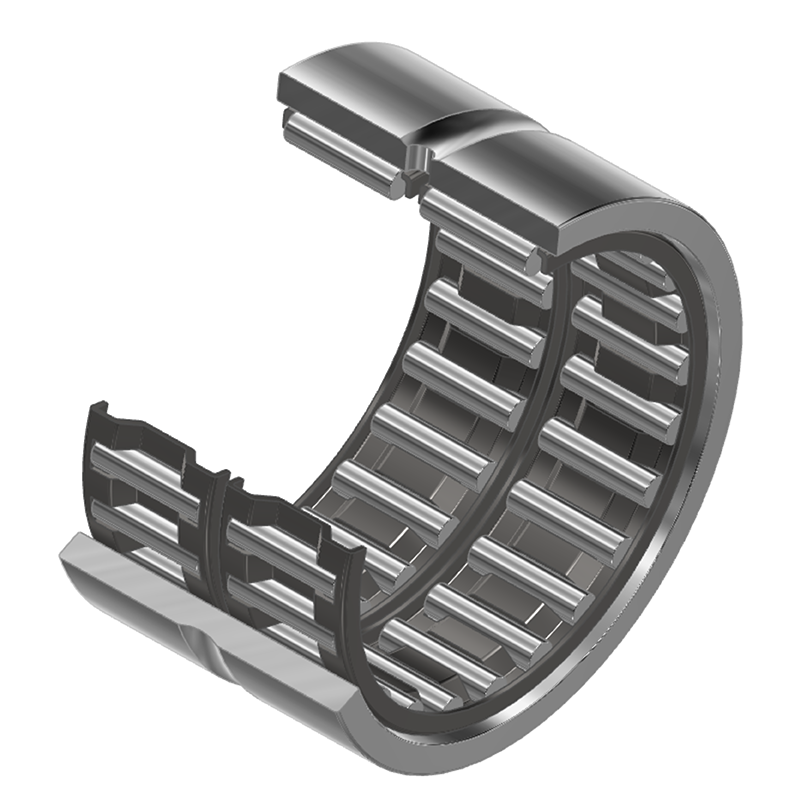

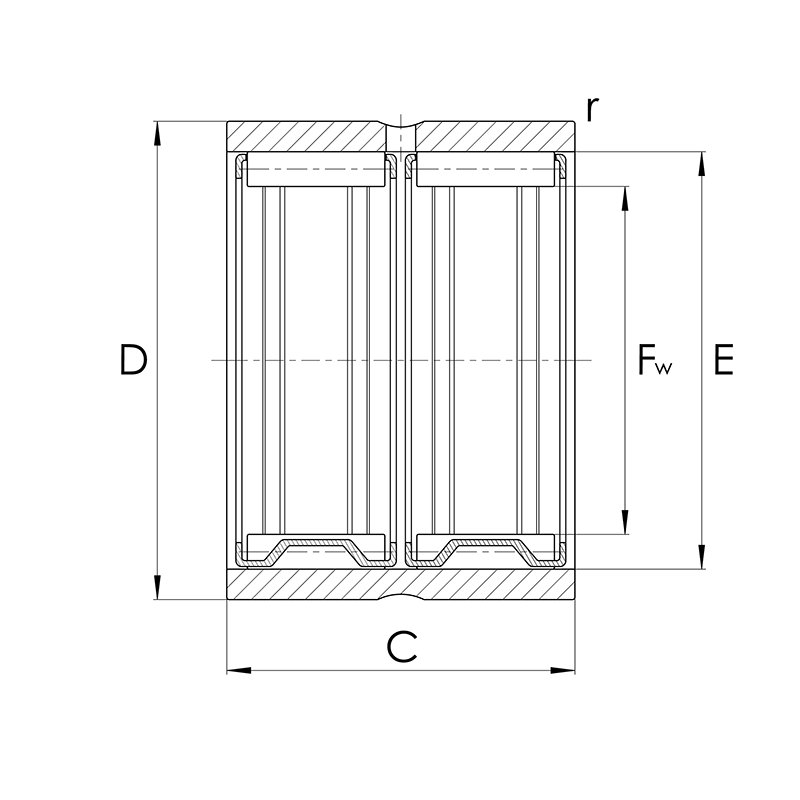

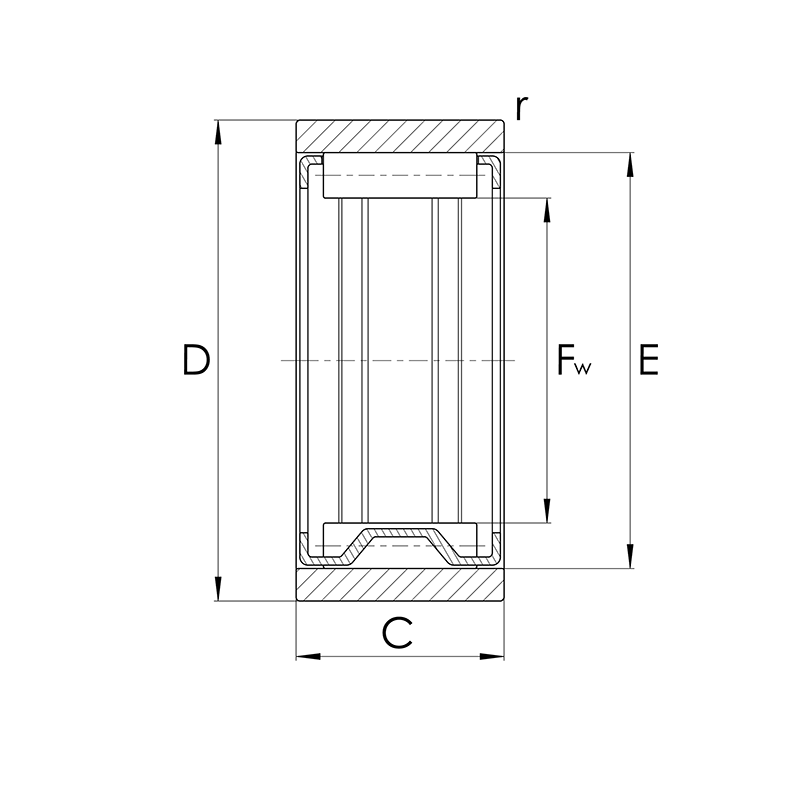

Nadellager RNAO, Abmessungen nach DIN 617-1 / ISO 1206
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10142393 | RNAO5x10x8-TV | 5,00 | 10,00 | 8,00 | |
| 10142396 | RNAO6x13x8-TV | 6,00 | 13,00 | 8,00 | |
| 10142399 | RNAO7x14x8-TV | 7,00 | 14,00 | 8,00 | |
| 10142402 | RNAO8x15x10-TV | 8,00 | 15,00 | 10,00 | |
| 10142405 | RNAO10x17x10-TV | 10,00 | 17,00 | 10,00 | |
| 10142408 | RNAO12x22x12-TV | 12,00 | 22,00 | 12,00 | |
| 10142411 | RNAO15x23x13 | 15,00 | 23,00 | 13,00 | |
| 10142414 | RNAO16x24x13 | 16,00 | 24,00 | 13,00 | |
| 10142417 | RNAO16x28x12 | 16,00 | 28,00 | 12,00 | |
| 10142420 | RNAO17x25x13 | 17,00 | 25,00 | 13,00 | |
| 10142423 | RNAO18x30x24-ZW-ASR1 | 18,00 | 30,00 | 24,00 | |
| 10142429 | RNAO20x28x26-ZW-ASR1 | 20,00 | 28,00 | 26,00 | |
| 10142432 | RNAO20x32x12 | 20,00 | 32,00 | 12,00 | |
| 10142426 | RNAO20x28x13 | 20,00 | 28,00 | 13,00 | |
| 10142435 | RNAO22x30x13 | 22,00 | 30,00 | 13,00 | |
| 10142438 | RNAO22x35x16 | 22,00 | 35,00 | 16,00 | |
| 10142447 | RNAO25x37x16 | 25,00 | 37,00 | 16,00 | |
| 10142444 | RNAO25x35x26-ZW-ASR1 | 25,00 | 35,00 | 26,00 | |
| 10142441 | RNAO25x35x17 | 25,00 | 35,00 | 17,00 | |
| 10142450 | RNAO30x40x17 | 30,00 | 40,00 | 17,00 | |
| 10142453 | RNAO30x42x16 | 30,00 | 42,00 | 16,00 | |
| 10142456 | RNAO30x42x32-ZW-ASR1 | 30,00 | 42,00 | 32,00 | |
| 10142471 | RNAO35x47x18 | 35,00 | 47,00 | 18,00 | |
| 10142474 | RNAO35x47x32-ZW-ASR1 | 35,00 | 47,00 | 32,00 | |
| 10318404 | RNAO35x45x13 | 35,00 | 45,00 | 13,00 | |
| 10142468 | RNAO35x47x16 | 35,00 | 47,00 | 16,00 | |
| 10142462 | RNAO35x45x17 | 35,00 | 45,00 | 17,00 | |
| 10142465 | RNAO35x45x26-ZW-ASR1 | 35,00 | 45,00 | 26,00 | |
| 10142486 | RNAO40x55x40-ZW-ASR1 | 40,00 | 55,00 | 40,00 | |
| 10142477 | RNAO40x50x17 | 40,00 | 50,00 | 17,00 | |
| 10142480 | RNAO40x50x34-ZW-ASR1 | 40,00 | 50,00 | 34,00 | |
| 10142483 | RNAO40x55x20 | 40,00 | 55,00 | 20,00 | |
| 10142489 | RNAO45x55x17 | 45,00 | 55,00 | 17,00 | |
| 10142492 | RNAO45x62x40-ZW-ASR1 | 45,00 | 62,00 | 40,00 | |
| 10142495 | RNAO50x62x20 | 50,00 | 62,00 | 20,00 | |
| 10142501 | RNAO50x65x40-ZW-ASR1 | 50,00 | 65,00 | 40,00 | |
| 10142498 | RNAO50x65x20 | 50,00 | 65,00 | 20,00 | |
| 10142504 | RNAO55x68x20 | 55,00 | 68,00 | 20,00 | |
| 10142510 | RNAO60x78x40-ZW-ASR1 | 60,00 | 78,00 | 40,00 | |
| 10142507 | RNAO60x78x20 | 60,00 | 78,00 | 20,00 | |
| 10142513 | RNAO65x85x30 | 65,00 | 85,00 | 30,00 | |
| 10142516 | RNAO70x90x30 | 70,00 | 90,00 | 30,00 | |
| 10142519 | RNAO80x100x30 | 80,00 | 100,00 | 30,00 | |
| 10142522 | RNAO90x105x26 | 90,00 | 105,00 | 26,00 | |
| 10142525 | RNAO90x110x30 | 90,00 | 110,00 | 30,00 | |
| 10142528 | RNAO100x120x30 | 100,00 | 120,00 | 30,00 | |
