Name: 241/1000ECAF/W33
Brand: HFH
SKU: 10028020
Rating: 4 (11 reviews)

+49 3695 8521 0

This email address is being protected from spambots. You need JavaScript enabled to view it.

Mo. - Fr.: 07:00 - 15:00

Spherical roller bearing 241, DIN 635-2, DIN 616 ISO 15:1998

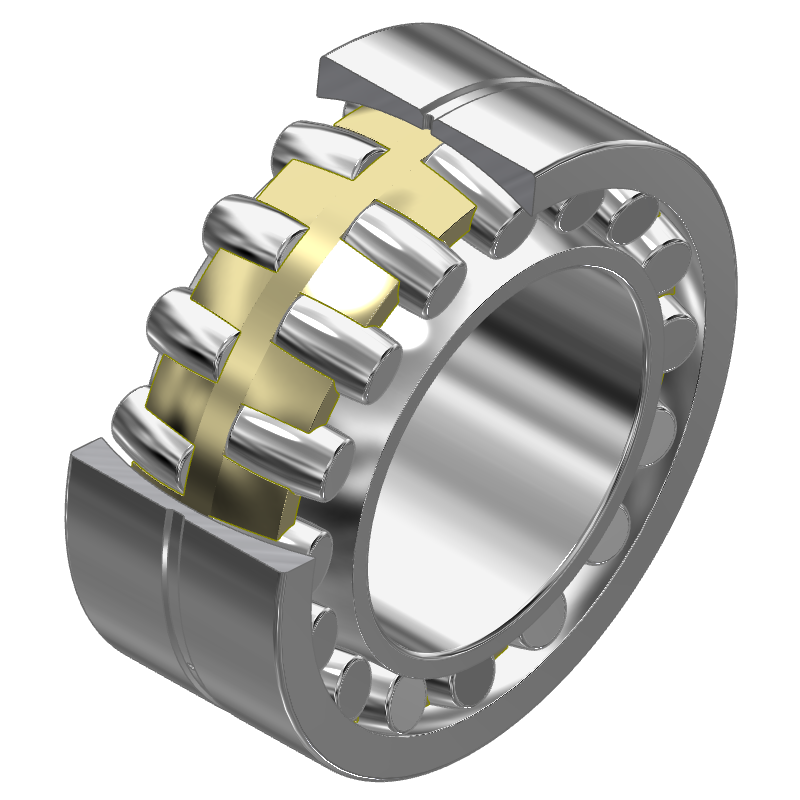

Spherical roller bearing 241

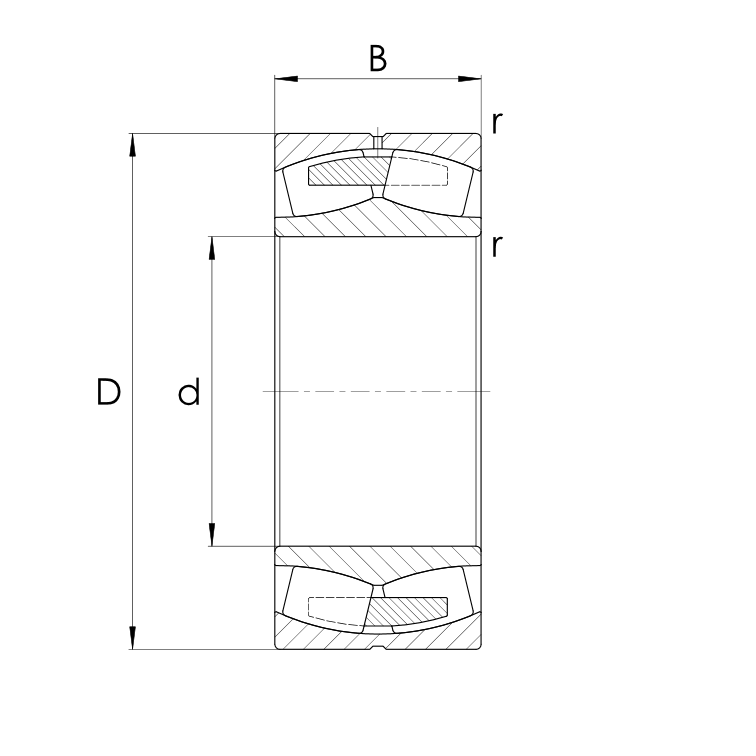

Spherical roller bearing 241 cylindrical

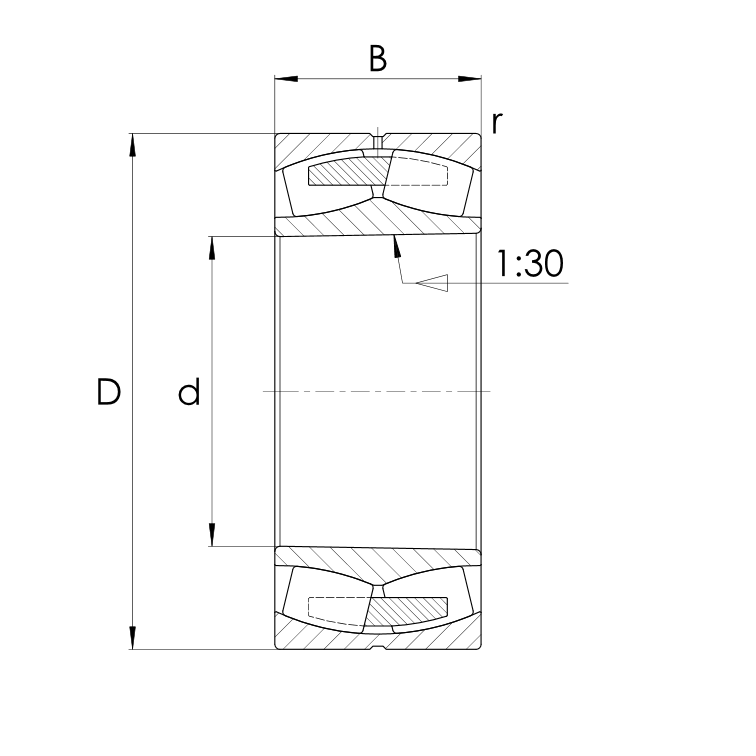

Spherical roller bearing 241 conical

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10028046	24120CC/W33	100.00	165.00	65.00
10028047	24122CC/W33	110.00	180.00	69.00
10028049	24124CC/W33	120.00	200.00	80.00
10028051	24126CC/W33	130.00	210.00	80.00
10028053	24128CC/W33	140.00	225.00	85.00
10028055	24130CC/W33	150.00	250.00	100.00
10028057	24132CC/W33	160.00	270.00	109.00
10028059	24134CC/W33	170.00	280.00	109.00
10028061	24136CC/W33	180.00	300.00	118.00
10028063	24138CC/W33	190.00	320.00	128.00
10028065	24140CC/W33	200.00	340.00	140.00
10028067	24144CC/W33	220.00	370.00	150.00
10028069	24148CC/W33	240.00	400.00	160.00
10028071	24152CC/W33	260.00	440.00	180.00
10028073	24156CC/W33	280.00	460.00	180.00
10028075	24160CC/W33	300.00	500.00	200.00
10028077	24164CC/W33	320.00	540.00	218.00
10028079	24168ECCJ/W33	340.00	580.00	243.00
10028081	24172ECCJ/W33	360.00	600.00	243.00
10028083	24176ECA/W33	380.00	620.00	243.00
10028085	24180ECA/W33	400.00	650.00	250.00
10028087	24184ECA/W33	420.00	700.00	280.00
10028089	24188ECA/W33	440.00	720.00	280.00
10028091	24192ECA/W33	460.00	760.00	300.00
10028093	24196ECA/W33	480.00	790.00	308.00
10028022	241/500ECA/W33	500.00	830.00	325.00
10028024	241/530ECA/W33	530.00	870.00	335.00
10028026	241/560ECJ/W33	560.00	920.00	355.00
10028028	241/600ECA/W33	600.00	980.00	375.00
10028030	241/630ECA/W33	630.00	1,030.00	400.00
10028032	241/670ECA/W33	670.00	1,090.00	412.00
10028034	241/710ECA/W33	710.00	1,150.00	438.00
10028038	241/800ECA/W33	800.00	1,280.00	475.00
10028040	241/850ECAF/W33	850.00	1,360.00	500.00
10028042	241/900ECAF/W33	900.00	1,420.00	515.00
10028044	241/950ECAF/W33	950.00	1,500.00	545.00
10028020	241/1000ECAF/W33	1,000.00	1,580.00	580.00

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

Other spherical roller bearings

These may also interest you.

Any questions?

You can contact our sales representative in the time from 07:00 to 15:00 (CET)

Catalog

A catalog for Spherical roller bearing can be download from here.

Service Bulletin

There are no documents for Spherical roller bearing published, yet. Please contact your personal sales representative if you have further questions.

Found mistake?

Help us to increase our quality. If you found some mistake in our product datasheets, don't hesitate to contact us.

Networking

Didn't find what you were looking for? Talk to us. With our access to large industrial networks, we have unimaginable possibilities.
