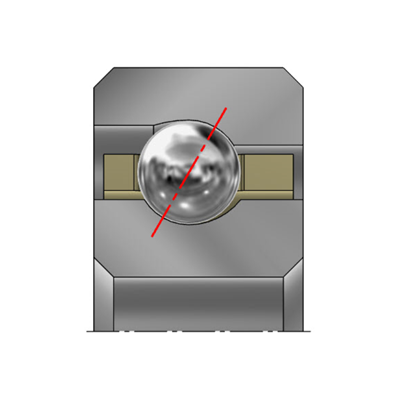

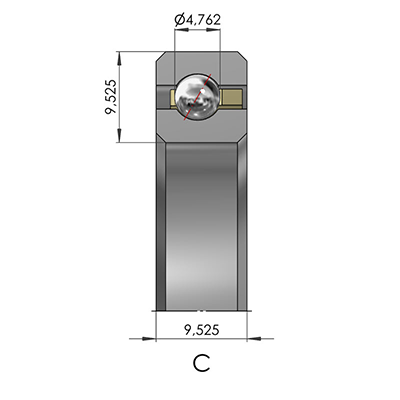

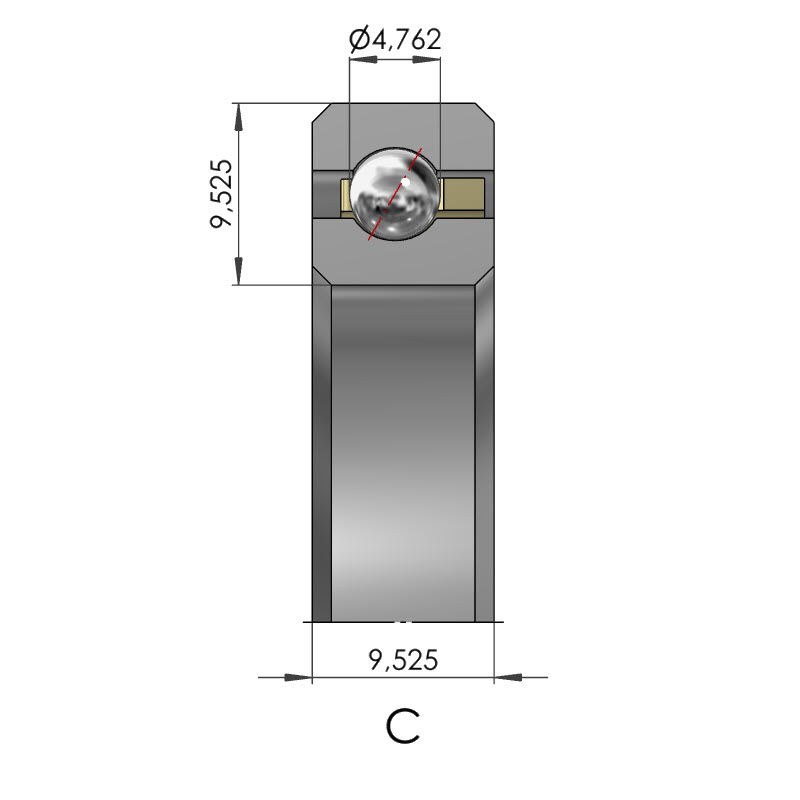

Thin section angular contact ball bearing - CSEC

  • Thin section bearing - CSEC
    Thin section bearing - CSEC
  • Thin section bearing - CSEC
    Thin section bearing - CSEC

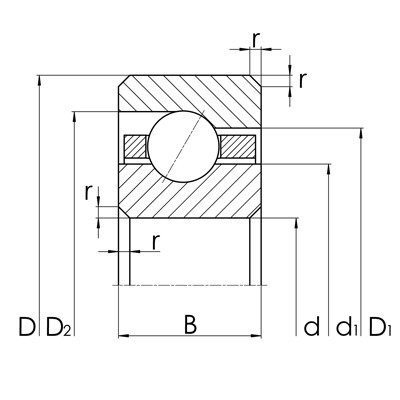

    Description Main dimensions Functions
    d D B
    mm mm mm
    SKU Description Main dimensions Functions
    d D B
    mm mm mm
    10147415 CSEC040 101.60 120.65 9.53
    10157415 CSEC042 107.95 127.00 9.53
    10147416 CSEC045 114.30 133.35 9.53
    10147325 CSEC047 120.65 139.70 9.53
    10147360 CSEC050 127.00 146.05 9.53
    10147417 CSEC055 139.70 158.75 9.53
    10147418 CSEC060 152.40 171.45 9.53
    10157417 CSEC065 165.10 184.15 9.53
    10147419 CSEC070 177.80 196.85 9.53
    10157419 CSEC075 190.50 209.55 9.53
    10157421 CSEC080 203.20 222.25 9.53
    10157423 CSEC090 228.60 247.65 9.53
    10157425 CSEC100 254.00 273.05 9.53
    10157427 CSEC110 279.40 298.45 9.53
    10157429 CSEC120 304.80 323.85 9.53
    10157431 CSEC140 355.60 374.65 9.53
    10157433 CSEC160 406.40 425.45 9.53
    10157435 CSEC180 457.20 476.25 9.53
    10157437 CSEC200 508.00 527.05 9.53
    10157439 CSEC250 635.00 654.05 9.53
    10157441 CSEC300 762.00 781.05 9.53
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
