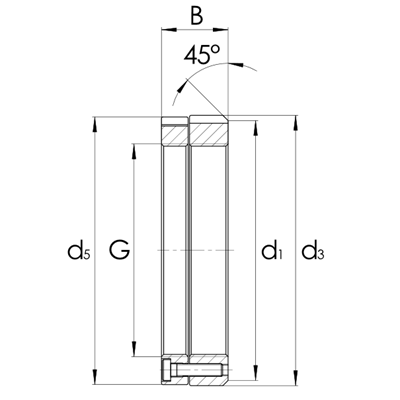

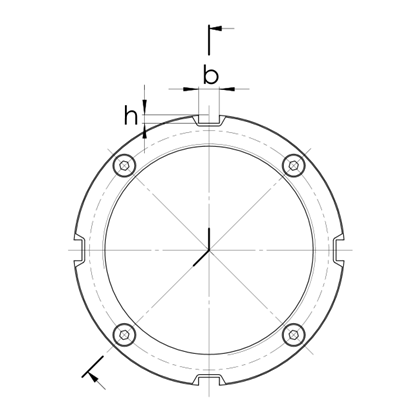

Precision groove lock nut KMD
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| G | d[[sub]]5[[/sub]] | B | ||
| mm | mm | |||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| G | d[[sub]]5[[/sub]] | B | |||
| mm | mm | ||||
| 10213667 | KMD4 | M20x1 | 39.00 | 18.00 | |
| 10213670 | KMD5 | M25x1,5 | 44.00 | 20.00 | |
| 10213673 | KMD6 | M30x1,5 | 49.00 | 20.00 | |
| 10213676 | KMD7 | M35x1,5 | 57.00 | 22.00 | |
| 10213679 | KMD8 | M40x1,5 | 62.00 | 22.00 | |
| 10213682 | KMD9 | M45x1,5 | 70.50 | 22.00 | |
| 10213631 | KMD10 | M50x1,5 | 74.00 | 25.00 | |
| 10213634 | KMD11P | M55x2 | 79.00 | 25.00 | |
| 10213637 | KMD12P | M60x2 | 84.00 | 26.00 | |
| 10213640 | KMD13 | M65x2 | 89.00 | 28.00 | |
| 10213643 | KMD14 | M70x2 | 94.00 | 28.00 | |
| 10213646 | KMD15 | M75x2 | 99.00 | 28.00 | |
| 10213649 | KMD16 | M80x2 | 109.00 | 32.00 | |
| 10213652 | KMD17 | M85x2 | 114.00 | 32.00 | |
| 10213655 | KMD18 | M90x2 | 119.00 | 32.00 | |
| 10213658 | KMD19 | M95x2 | 124.00 | 32.00 | |
| 10213661 | KMD20 | M100x2 | 129.00 | 32.00 | |
| 10213664 | KMD21 | M105x2 | 134.00 | 32.00 | |
