Stehlagergehäuse (geteilt) - SNF500

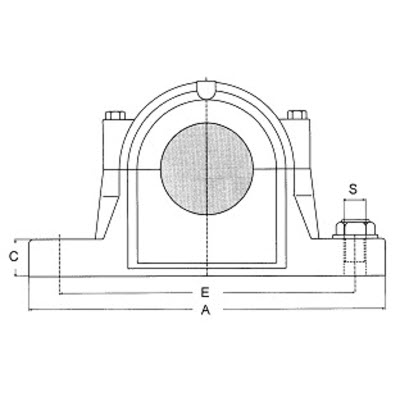

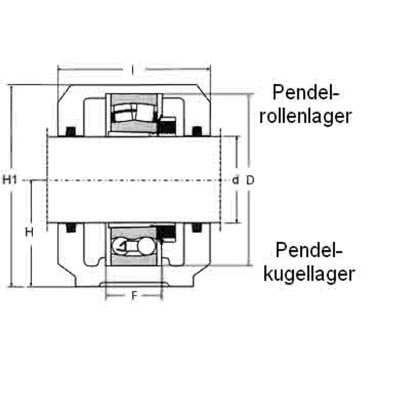

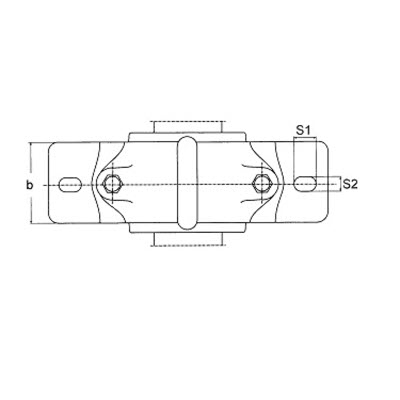

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | H | E | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | H | E | |||
| mm | mm | mm | |||
| 10061459 | SNF505 | 20,00 | 40,00 | 130,00 | |
| 10061460 | SNF506 | 25,00 | 50,00 | 150,00 | |
| 10061461 | SNF507 | 30,00 | 50,00 | 150,00 | |
| 10061462 | SNF508 | 35,00 | 60,00 | 170,00 | |
| 10061463 | SNF509 | 40,00 | 60,00 | 170,00 | |
| 10061464 | SNF510 | 45,00 | 60,00 | 170,00 | |
| 10061465 | SNF511 | 50,00 | 70,00 | 210,00 | |
| 10061466 | SNF512 | 55,00 | 70,00 | 210,00 | |
| 10061467 | SNF513 | 60,00 | 80,00 | 230,00 | |
| 10061469 | SNF515 | 65,00 | 80,00 | 230,00 | |
| 10061470 | SNF516 | 70,00 | 95,00 | 260,00 | |
| 10061471 | SNF517 | 75,00 | 95,00 | 260,00 | |
| 10061472 | SNF518 | 80,00 | 100,00 | 290,00 | |
| 10061473 | SNF519 | 85,00 | 112,00 | 290,00 | |
| 10061474 | SNF520 | 90,00 | 112,00 | 320,00 | |
| 10061475 | SNF522 | 100,00 | 125,00 | 350,00 | |
| 10061476 | SNF524 | 110,00 | 140,00 | 350,00 | |
| 10061477 | SNF526 | 115,00 | 150,00 | 380,00 | |
| 10061478 | SNF528 | 125,00 | 150,00 | 420,00 | |
| 10061479 | SNF530 | 135,00 | 160,00 | 450,00 | |
| 10061480 | SNF532 | 140,00 | 170,00 | 470,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
