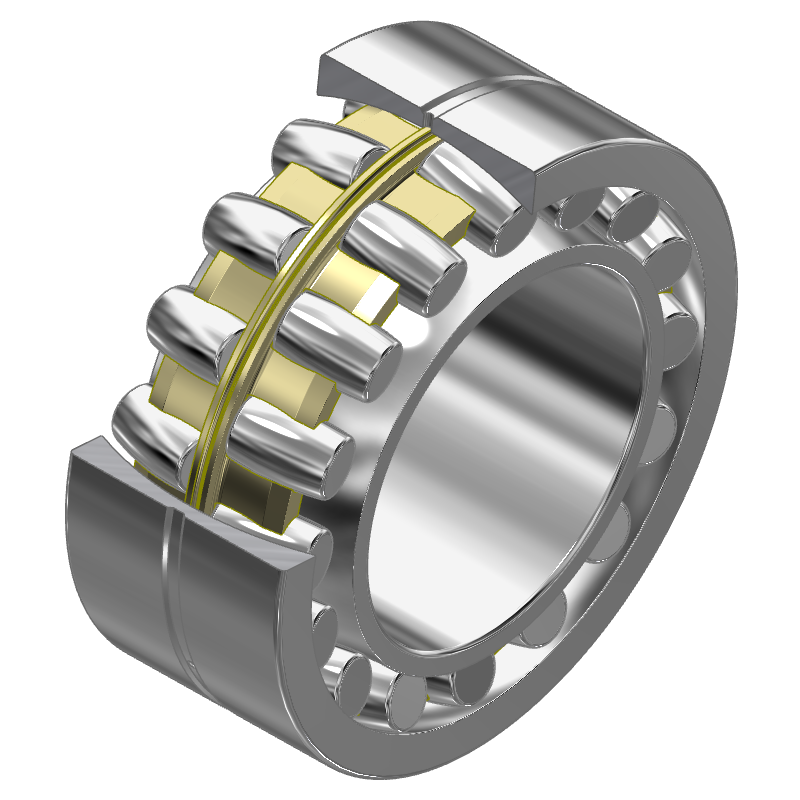

Spherical roller bearing 248, DIN 635-2, DIN 616 ISO 15:1998
Spherical roller bearing 248

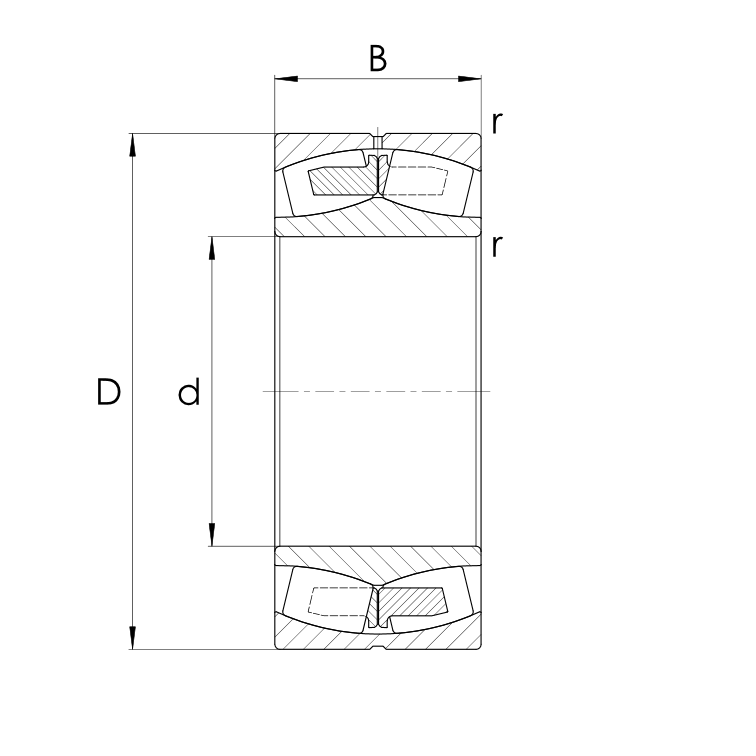

Spherical roller bearing 248 cylindrical

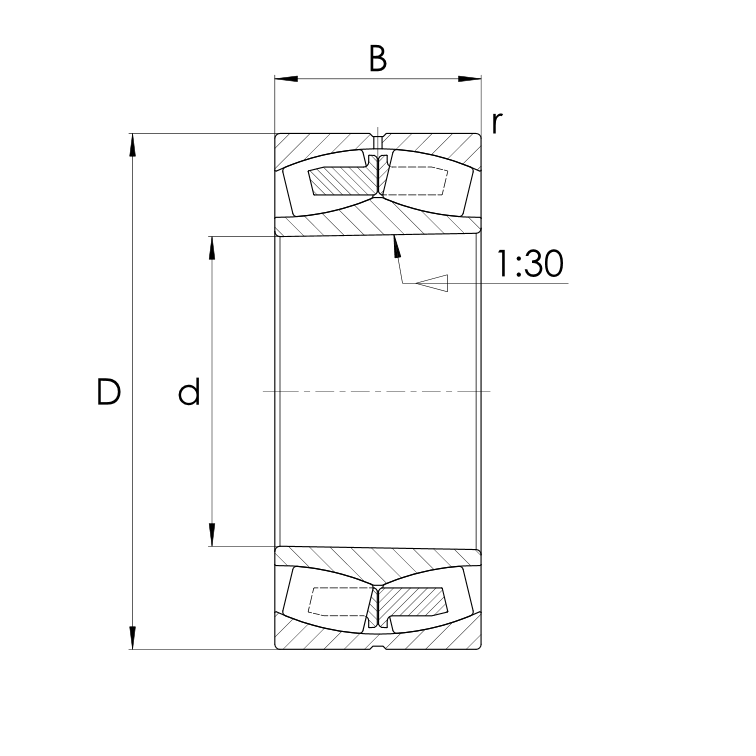

Spherical roller bearing 248 conical
SKU
Description
Main dimensions
Functions
d
D
B
mm
mm
mm
10028115
24892CAMA/W20 460.00
580.00
118.00
10028108
248/530CAMA/W20 530.00
650.00
118.00
10028111
248/800CAMA/W20 800.00
980.00
180.00
10028113
248/900CAMA/W20 900.00
1,090.00
190.00
10028096
248/1060CAMA/W20 1,060.00
1,280.00
218.00
10028097
248/1120CAFA/W20 1,120.00
1,360.00
243.00
10028099
248/1180CAFA/W20 1,180.00
1,420.00
243.00
10028101
248/1320CAFA/W20 1,320.00
1,600.00
280.00
10028103
248/1500CAFA/W20 1,500.00
1,820.00
315.00
10028105
248/1800CAFA/W20 1,800.00
2,180.00
375.00
