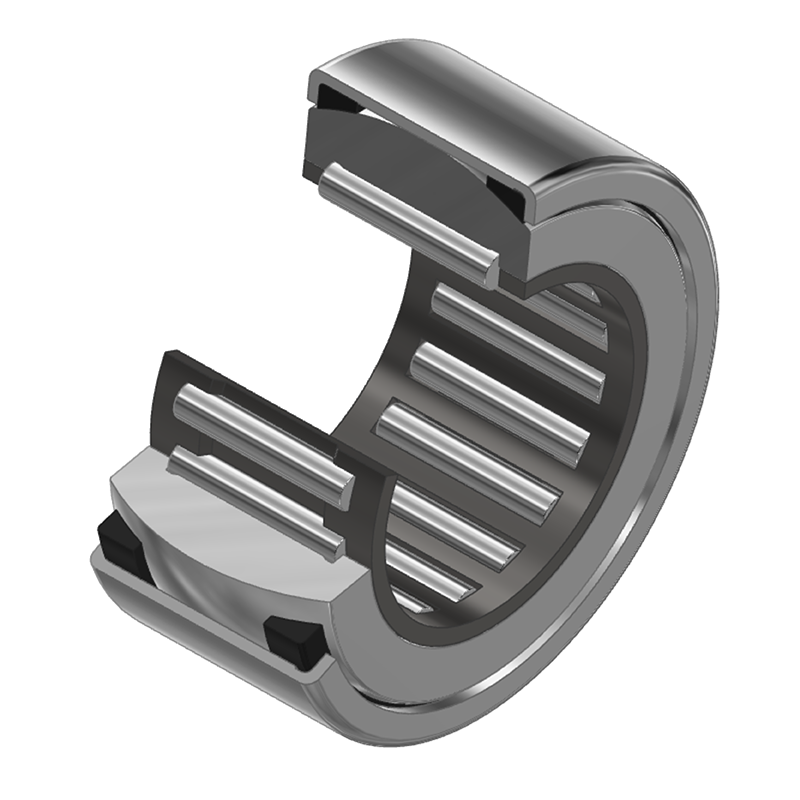

Nadellager RPNA, Abmessungen nach DIN 617-1 / ISO 1206

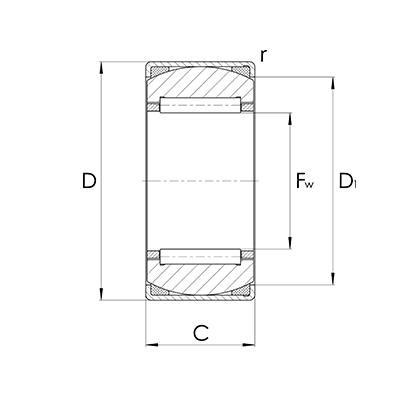

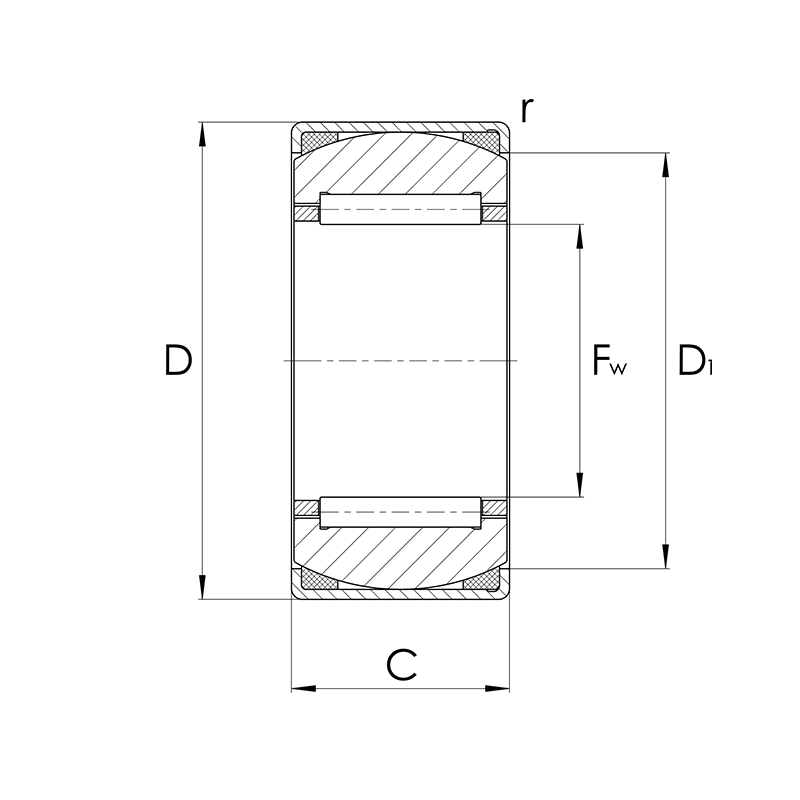

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10096558 | RPNA15/28 | 15,00 | 28,00 | 12,00 | |
| 10097295 | RPNA18/32 | 18,00 | 32,00 | 16,00 | |
| 10097296 | RPNA20/35 | 20,00 | 35,00 | 16,00 | |
| 10097297 | RPNA25/42 | 25,00 | 42,00 | 20,00 | |
| 10097298 | RPNA28/44 | 28,00 | 44,00 | 20,00 | |
| 10097299 | RPNA30/47 | 30,00 | 47,00 | 20,00 | |
| 10097300 | RPNA35/52 | 35,00 | 52,00 | 20,00 | |
| 10097301 | RPNA40/55 | 40,00 | 55,00 | 20,00 | |
| 10097302 | RPNA45/62 | 45,00 | 62,00 | 20,00 | |
