62..-VA201

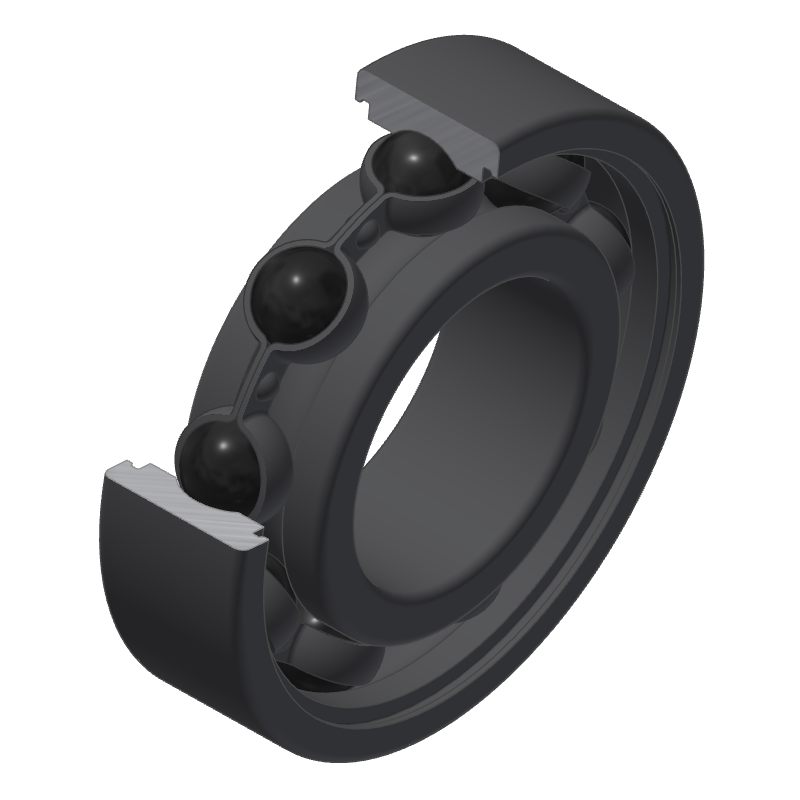

High temp. Deep groove ball bearing 62..VA201 for operating temperatures up to 250 °C
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10148255 6201/VA201 12.00 32.00 10.00 10148264 6202/VA201 15.00 35.00 11.00 10148273 6203/VA201 17.00 40.00 12.00 10148281 6204/VA201 20.00 47.00 14.00 10148290 6205/VA201 25.00 52.00 15.00 10148302 6206/VA201 30.00 62.00 16.00 10148314 6207/VA201 35.00 72.00 17.00 10148326 6208/VA201 40.00 80.00 18.00 10148338 6209/VA201 45.00 85.00 19.00 10148350 6210/VA201 50.00 90.00 20.00 10148362 6211/VA201 55.00 100.00 21.00 10148374 6212/VA201 60.00 110.00 22.00 10148386 6213/VA201 65.00 120.00 23.00 10148398 6214/VA201 70.00 125.00 24.00 10148410 6215/VA201 75.00 130.00 25.00 10148431 6219/VA201 95.00 170.00 32.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
62..-2Z/VA201

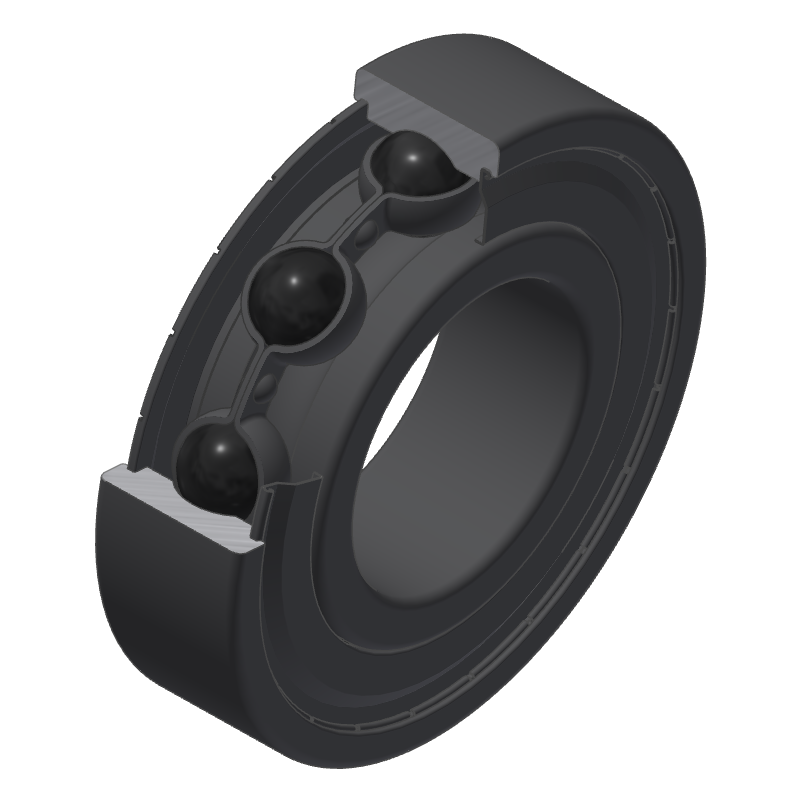

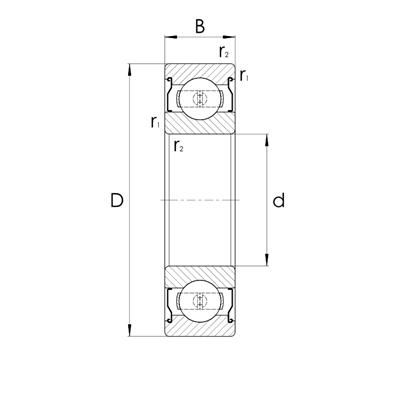

High temp. Deep groove ball bearing 62..-2Z/VA201 for operating temperatures up to 250 °C
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10148258 6201-2Z/VA201 12.00 32.00 10.00 10148267 6202-2Z/VA201 15.00 35.00 11.00 10148276 6203-2Z/VA201 17.00 40.00 12.00 10148284 6204-2Z/VA201 20.00 47.00 14.00 10148293 6205-2Z/VA201 25.00 52.00 15.00 10148305 6206-2Z/VA201 30.00 62.00 16.00 10148317 6207-2Z/VA201 35.00 72.00 17.00 10148329 6208-2Z/VA201 40.00 80.00 18.00 10148341 6209-2Z/VA201 45.00 85.00 19.00 10148353 6210-2Z/VA201 50.00 90.00 20.00 10148365 6211-2Z/VA201 55.00 100.00 21.00 10148377 6212-2Z/VA201 60.00 110.00 22.00 10148389 6213-2Z/VA201 65.00 120.00 23.00 10148401 6214-2Z/VA201 70.00 125.00 24.00 10148413 6215-2Z/VA201 75.00 130.00 25.00 10148434 6219-2Z/VA201 95.00 170.00 32.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
Under the following conditions, the bearings must be run in after installation or lubrication:
- Operating temperature < 200 °C
- Speed < 25% limit speed
The running-in phase should take place at a minimum temperature of 200 °C and last at least 48 hours. Due to the lack of preservative oils, grease or oil lubrication (this applies to all high-temperature bearings), the corrosion protection properties are limited. For this reason, open high-temperature bearings may only be used in dry environments.
