  • C41-V

    Toroidal roller bearing C41-V - full complement roller

    • Toroidal roller bearing
      Toroidal roller bearing
    • Toroidal roller bearing
      Toroidal roller bearing
    • Toroidal roller bearing
      Toroidal roller bearing
      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10225213 C4120-V 100.00 165.00 65.00
      10225215 C4122-V 110.00 180.00 69.00
      10225217 C4124-V 120.00 200.00 80.00
      10225219 C4126-V 130.00 210.00 80.00
      10225221 C4128-V 140.00 225.00 85.00
      10225223 C4130-V 150.00 250.00 100.00
      10225225 C4132-V 160.00 270.00 109.00
      10225227 C4134-V 170.00 280.00 109.00
      10225229 C4136-V 180.00 300.00 118.00
      10225231 C4138-V 190.00 320.00 128.00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

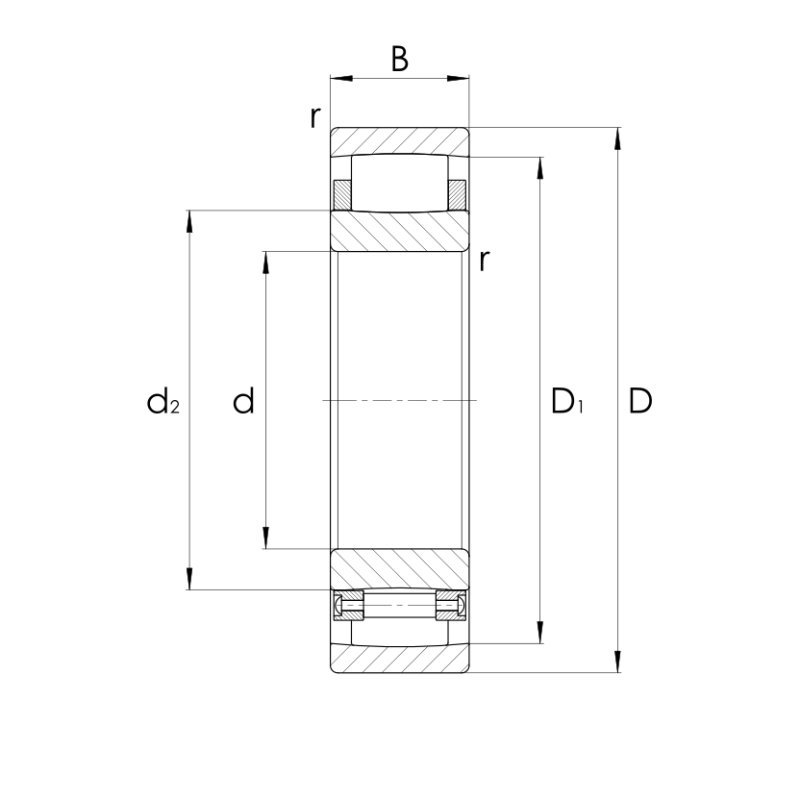

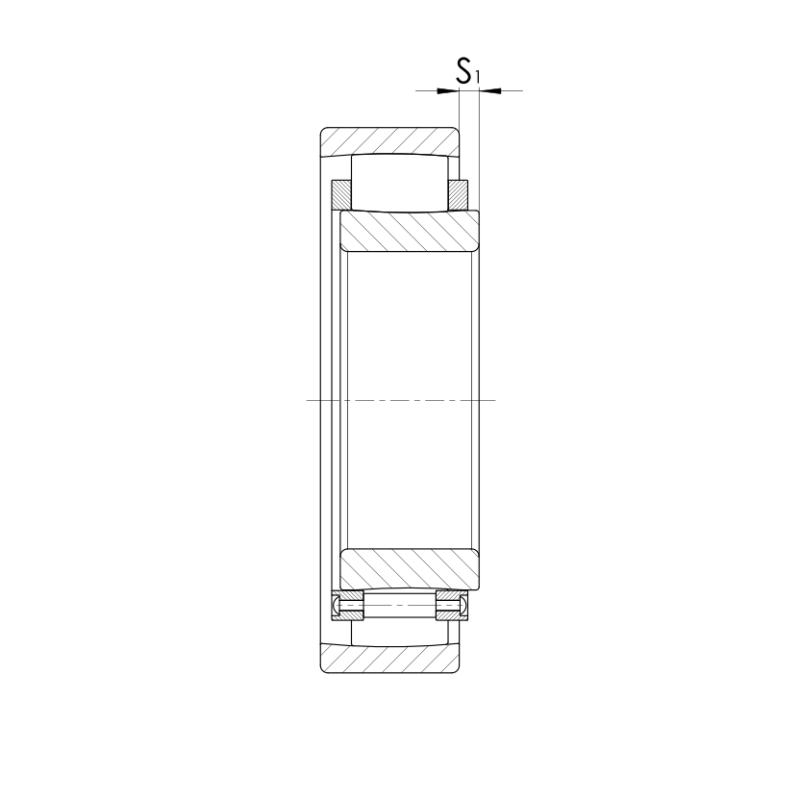

    • C41-M1B

      Toroidal roller bearing C41-M1B - Version with split solid brass cage

      • Toroidal roller bearing
        Toroidal roller bearing
      • Toroidal roller bearing
        Toroidal roller bearing
      • Toroidal roller bearing
        Toroidal roller bearing
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10225235 C4160-M1B 300.00 500.00 200.00
        10225237 C4188-M1B 440.00 720.00 280.00
        10225239 C4192-M1B 460.00 760.00 300.00
        10225209 C41/500-M1B 500.00 830.00 325.00
        10225211 C41/600-M1B 600.00 980.00 375.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

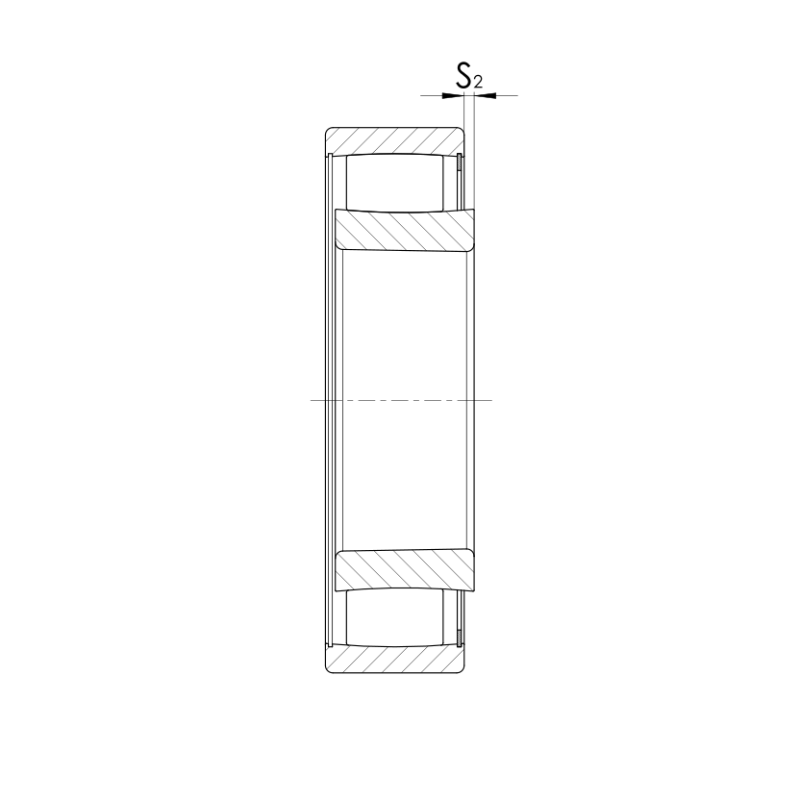

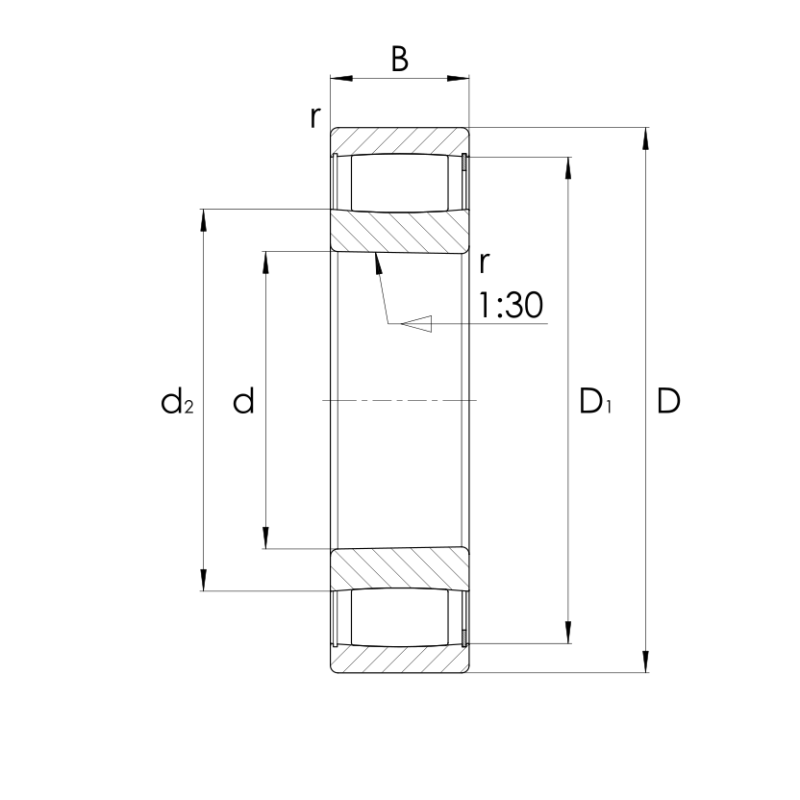

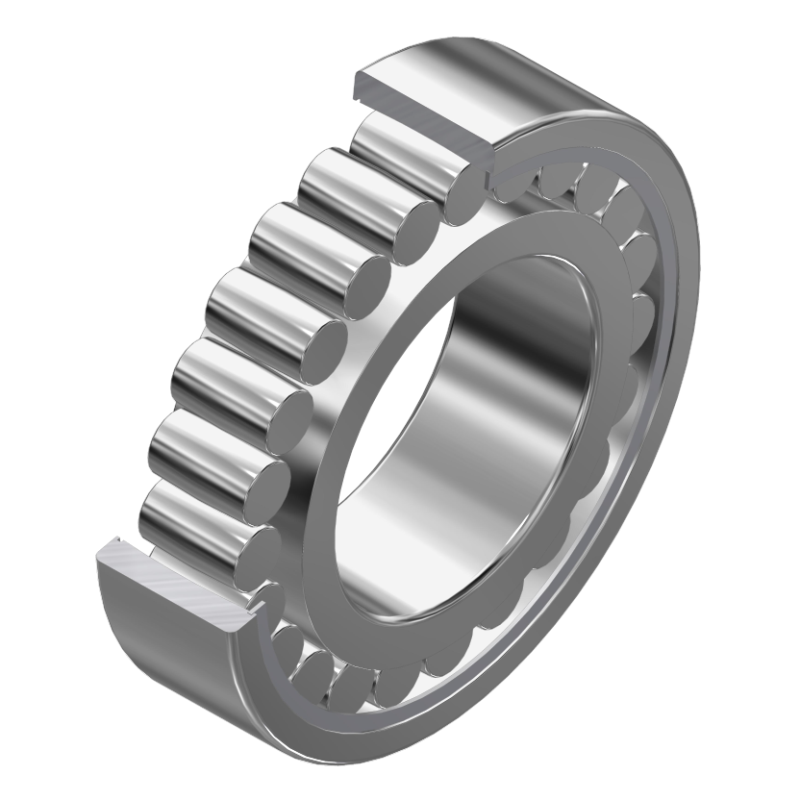

      • C41-K30-V

        Toroidal roller bearing C41-K30-V - full complement roller with conical bore (taper 1:30)

        • Toroidal roller bearing
          Toroidal roller bearing
        • Toroidal roller bearing
          Toroidal roller bearing
        • Toroidal roller bearing
          Toroidal roller bearing
          Description Main dimensions Functions
          d D B
          mm mm mm
          SKU Description Main dimensions Functions
          d D B
          mm mm mm
          Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

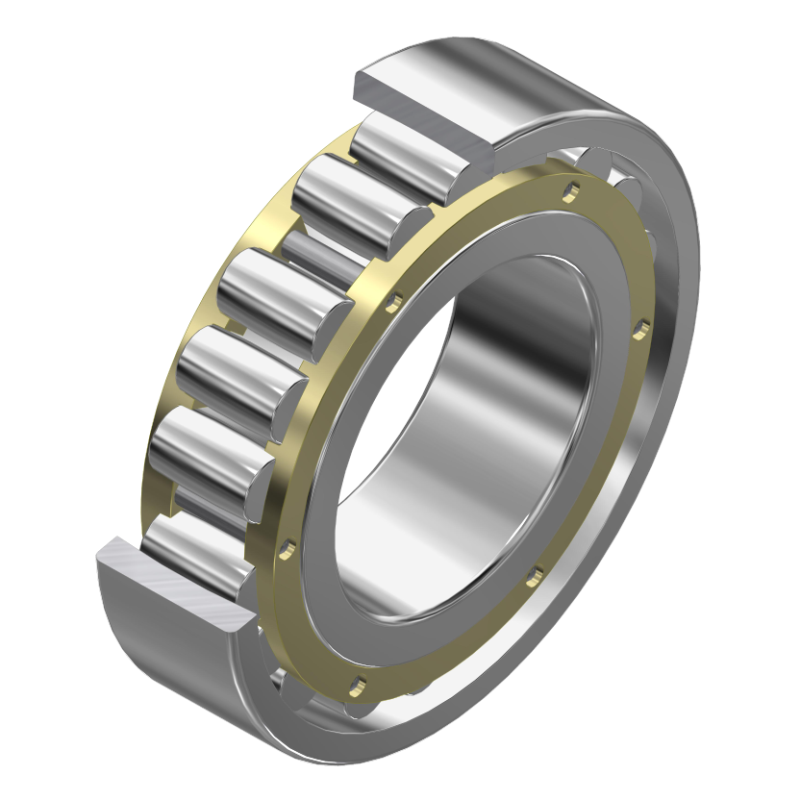

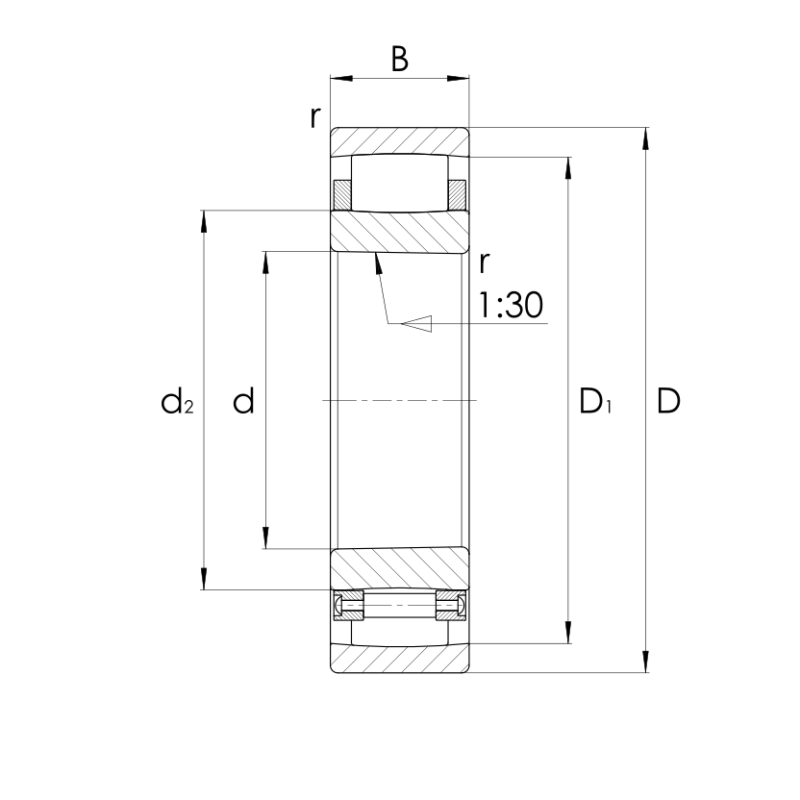

        • C41-K30-M1B

          Toroidalrollenlager C41-K30-M1B - Ausführung mit geteilten Massivkäfig aus Messsing und konischer Bohrung (Kegel 1:30)

          • Toroidalrollenlager
            Toroidalrollenlager
          • Toroidalrollenlager
            Toroidalrollenlager
          • Toroidalrollenlager
            Toroidalrollenlager
            Description Main dimensions Functions
            d D B
            mm mm mm
            SKU Description Main dimensions Functions
            d D B
            mm mm mm
            10225234 C4160-K30-M1B 300,00 500,00 200,00
            10225236 C4188-K30-M1B 440,00 720,00 280,00
            10225238 C4192-K30-M1B 460,00 760,00 300,00
            10225208 C41/500-K30-M1B 500,00 830,00 325,00
            10225210 C41/600-K30-M1B 600,00 980,00 375,00
            Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
