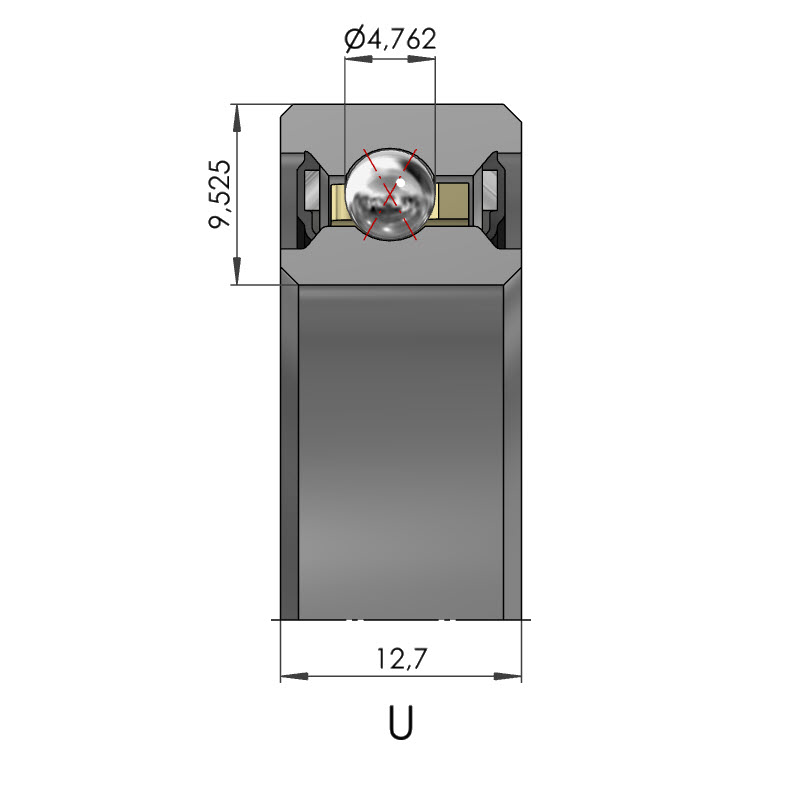

Thin section four-point bearing - CSXU
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10147508 | CSXU040-2RS | 101.60 | 120.65 | 12.70 | |
| 10157303 | CSXU042-2RS | 107.95 | 127.00 | 12.70 | |
| 10147509 | CSXU045-2RS | 114.30 | 133.35 | 12.70 | |
| 10157305 | CSXU047-2RS | 120.65 | 139.70 | 12.70 | |
| 10147510 | CSXU050-2RS | 127.00 | 146.05 | 12.70 | |
| 10147511 | CSXU055-2RS | 139.70 | 158.75 | 12.70 | |
| 10147512 | CSXU060-2RS | 152.40 | 171.45 | 12.70 | |
| 10147513 | CSXU065-2RS | 165.10 | 184.15 | 12.70 | |
| 10147514 | CSXU070-2RS | 177.80 | 196.85 | 12.70 | |
| 10147515 | CSXU075-2RS | 190.50 | 209.55 | 12.70 | |
| 10147516 | CSXU080-2RS | 203.20 | 222.25 | 12.70 | |
| 10157307 | CSXU085-2RS | 215.90 | 234.95 | 12.70 | |
| 10147517 | CSXU090-2RS | 228.60 | 247.65 | 12.70 | |
| 10147518 | CSXU100-2RS | 254.00 | 273.05 | 12.70 | |
| 10147519 | CSXU110-2RS | 279.40 | 298.45 | 12.70 | |
| 10157309 | CSXU120-2RS | 304.80 | 323.85 | 12.70 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
