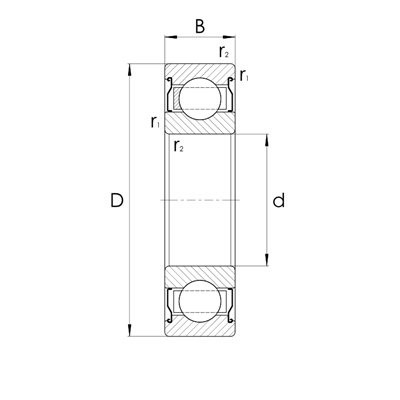

High temp. Deep groove ball bearing 62..-2Z/VA228 for operating temperatures up to 350 °C
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10148261 | 6201-2Z/VA228 | 12.00 | 32.00 | 10.00 | |
| 10148270 | 6202-2Z/VA228 | 15.00 | 35.00 | 11.00 | |
| 10148279 | 6203-2Z/VA228 | 17.00 | 40.00 | 12.00 | |
| 10148287 | 6204-2Z/VA228 | 20.00 | 47.00 | 14.00 | |
| 10148299 | 6205-2Z/VA228 | 25.00 | 52.00 | 15.00 | |
| 10148311 | 6206-2Z/VA228 | 30.00 | 62.00 | 16.00 | |
| 10148323 | 6207-2Z/VA228 | 35.00 | 72.00 | 17.00 | |
| 10148335 | 6208-2Z/VA228 | 40.00 | 80.00 | 18.00 | |
| 10148347 | 6209-2Z/VA228 | 45.00 | 85.00 | 19.00 | |
| 10148359 | 6210-2Z/VA228 | 50.00 | 90.00 | 20.00 | |
| 10148371 | 6211-2Z/VA228 | 55.00 | 100.00 | 21.00 | |
| 10148383 | 6212-2Z/VA228 | 60.00 | 110.00 | 22.00 | |
| 10148395 | 6213-2Z/VA228 | 65.00 | 120.00 | 23.00 | |
| 10148407 | 6214-2Z/VA228 | 70.00 | 125.00 | 24.00 | |
| 10148419 | 6215-2Z/VA228 | 75.00 | 130.00 | 25.00 | |
| 10148428 | 6218-2Z/VA228 | 90.00 | 160.00 | 30.00 | |
| 10148437 | 6219-2Z/VA228 | 95.00 | 170.00 | 32.00 | |
| 10148443 | 6220-2Z/VA228 | 100.00 | 180.00 | 34.00 | |
