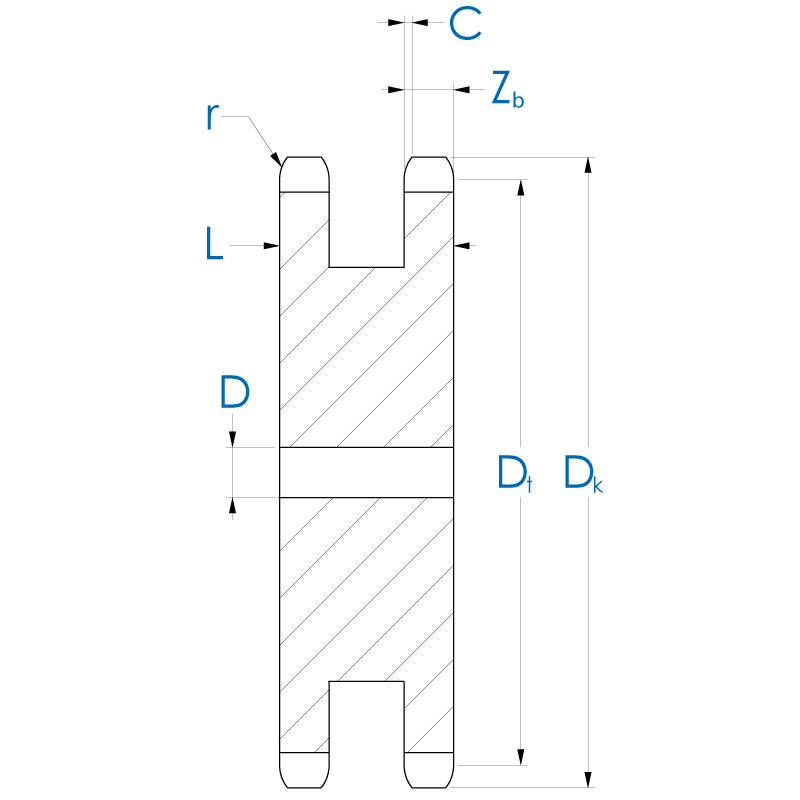

Doppel-Kettenradscheibe 12B ähnlich DIN 8192, für zwei nebeneinander laufende Einfach-Rollenketten 12B DIN 8187 / ISO 606

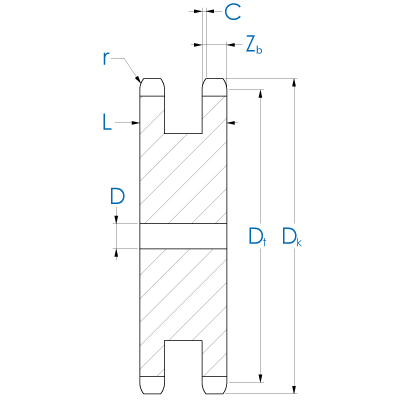

  • Doppelkettenradscheibe DIN 8192
    Doppelkettenradscheibe DIN 8192
  • Doppelkettenradscheibe DIN 8192
    Doppelkettenradscheibe DIN 8192
  • Rollenkette DIN 8187
    Rollenkette DIN 8187
  • Rollenkette DIN 8187
    Rollenkette DIN 8187
    Description Main dimensions Functions
    z Dk Dt
    mm mm
    SKU Description Main dimensions Functions
    z Dk Dt
    mm mm
    10053300 DKRS12B-Z008-008 8 57,60 49,78
    10053301 DKRS12B-Z009-009 9 62,00 55,70
    10053302 DKRS12B-Z010-010 10 69,00 61,64
    10053303 DKRS12B-Z011-011 11 75,00 67,61
    10053304 DKRS12B-Z012-012 12 81,50 73,60
    10053305 DKRS12B-Z013-013 13 87,50 79,59
    10053306 DKRS12B-Z014-014 14 93,60 85,61
    10053307 DKRS12B-Z015-015 15 99,80 91,63
    10053308 DKRS12B-Z016-016 16 105,50 97,65
    10053309 DKRS12B-Z017-017 17 111,50 103,67
    10053310 DKRS12B-Z018-018 18 118,00 109,71
    10053311 DKRS12B-Z019-019 19 124,20 115,75
    10053312 DKRS12B-Z020-020 20 129,70 121,78
    10053313 DKRS12B-Z021-021 21 136,00 127,82
    10053314 DKRS12B-Z022-022 22 141,80 133,86
    10053315 DKRS12B-Z023-023 23 149,00 139,90
    10053316 DKRS12B-Z024-024 24 153,90 145,94
    10053317 DKRS12B-Z025-025 25 160,00 152,00
    10053318 DKRS12B-Z026-026 26 165,90 158,04
    10053319 DKRS12B-Z027-027 27 172,30 164,09
    10053320 DKRS12B-Z028-028 28 178,00 170,13
    10053321 DKRS12B-Z029-029 29 184,10 176,19
    10053322 DKRS12B-Z030-030 30 190,50 182,25
    10053323 DKRS12B-Z031-031 31 196,30 188,31
    10053324 DKRS12B-Z032-032 32 203,30 194,35
    10053325 DKRS12B-Z033-033 33 209,30 200,40
    10053326 DKRS12B-Z034-034 34 214,60 206,46
    10053327 DKRS12B-Z035-035 35 221,00 212,52
    10053328 DKRS12B-Z036-036 36 226,80 218,58
    10053329 DKRS12B-Z037-037 37 232,90 224,64
    10053330 DKRS12B-Z038-038 38 239,00 230,69
    10053331 DKRS12B-Z039-039 39 245,10 236,75
    10053332 DKRS12B-Z040-040 40 251,30 242,81
    10053334 DKRS12B-Z042-042 42 264,50 254,93
    10053337 DKRS12B-Z045-045 45 282,50 273,10
    10053338 DKRS12B-Z046-046 46 287,90 279,16
    10053340 DKRS12B-Z048-048 48 300,10 291,27
    10053342 DKRS12B-Z050-050 50 312,30 303,39
    10053347 DKRS12B-Z055-055 55 342,70 333,70
    10053349 DKRS12B-Z057-057 57 355,40 345,81
    10053351 DKRS12B-Z060-060 60 373,00 363,99
    10053354 DKRS12B-Z076-076 76 469,90 460,99
    10053355 DKRS12B-Z095-095 95 585,10 576,17
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
