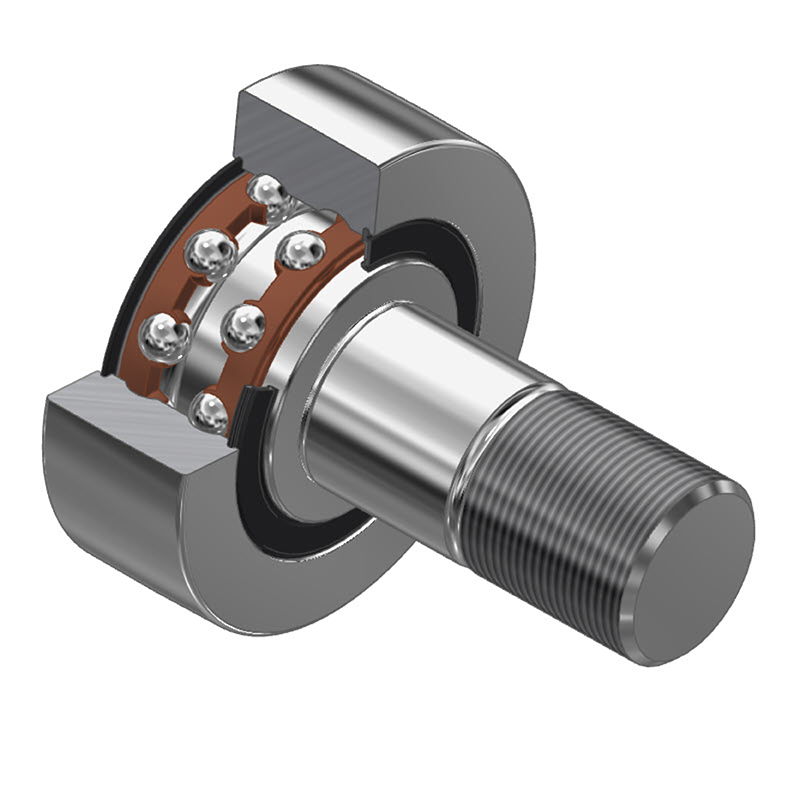

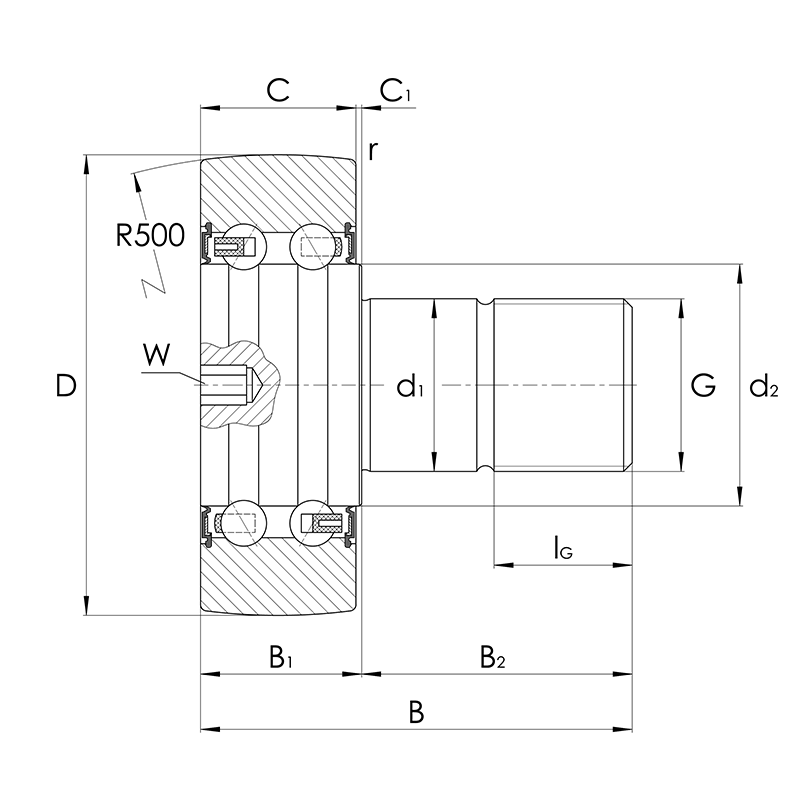

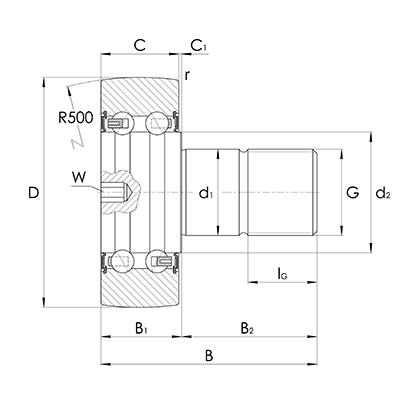

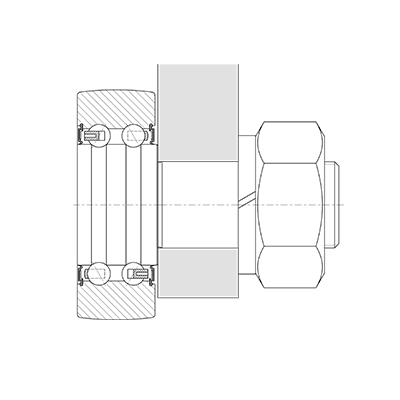

Stud type track roller KR52..-2RS, double-row, outer surface (bearing) spherical
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| D | C | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| D | C | B | |||
| mm | mm | mm | |||
| 10147822 | KR5201-2RS | 35.00 | 15.90 | 49.20 | |
| 10147823 | KR5202-2RS | 40.00 | 15.90 | 53.20 | |
| 10147739 | KR5203-2RS | 47.00 | 17.50 | 58.80 | |
| 10147740 | KR5204-2RS | 52.00 | 20.60 | 63.60 | |
| 10147741 | KR5205-2RS | 62.00 | 20.60 | 70.90 | |
| 10147824 | KR5206-2RS | 72.00 | 23.80 | 74.10 | |
| 10147742 | KR5207-2RS | 80.00 | 27.00 | 91.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
Please keep in mind that the maximum possible speed of the rollers can be affected by the following factors. These are:
- permissible operating temperature for rollers
- Type of bearing (deep groove ball bearing or angular contact ball bearing)
- Burden
- Lubrication conditions
- Cooling conditions
- used seal
The specified limit speeds serve as a guide value for optimum operating conditions, taking all factors into consideration.
