  • HK

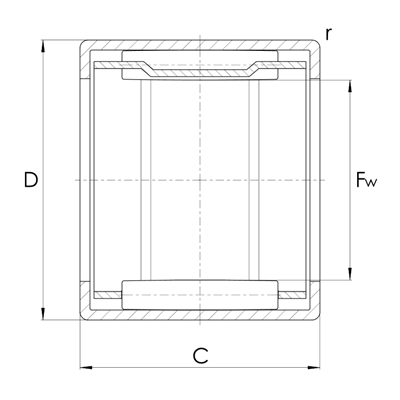

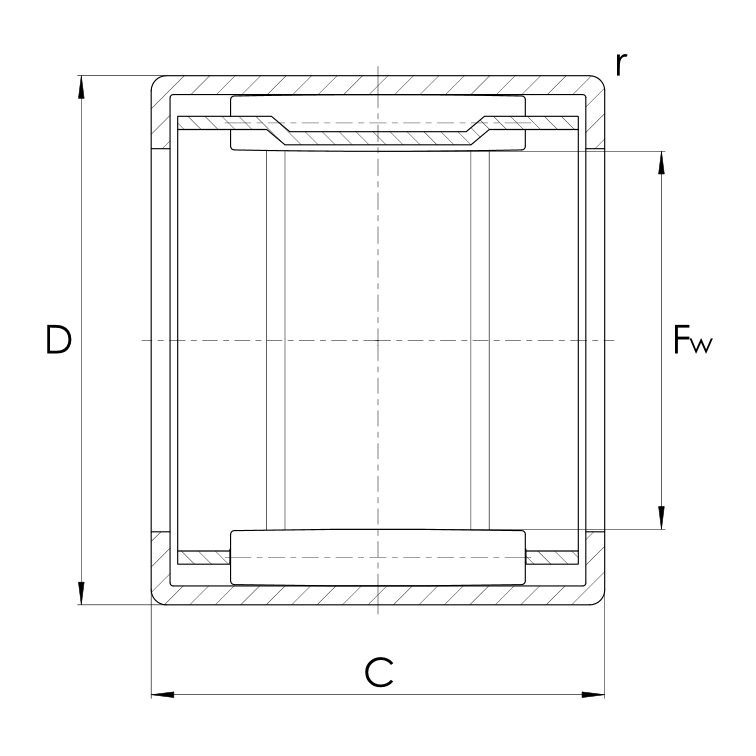

    Nadelhülse HK, Abmessungen nach DIN 618-1 / ISO 3245

    • Nadelhülse HK
      Nadelhülse HK
    • Nadelhülse HK
      Nadelhülse HK
      Description Main dimensions Functions
      Fw D C
      mm mm mm
      SKU Description Main dimensions Functions
      Fw D C
      mm mm mm
      10173354 HK0205-TV 2,00 4,60 5,00
      10050598 HK0306-TV 3,00 6,50 6,00
      10173359 HK0408 4,00 8,00 8,00
      10050600 HK0509 5,00 9,00 9,00
      10173364 HK0606 6,00 10,00 6,00
      10050601 HK0608 6,00 10,00 8,00
      10050602 HK0609 6,00 10,00 9,00
      10050603 HK0709 7,00 11,00 9,00
      10050604 HK0808 8,00 12,00 8,00
      10050605 HK0810 8,00 12,00 10,00
      10050606 HK0908 9,00 13,00 8,00
      10050607 HK0910 9,00 13,00 10,00
      10050608 HK0912 9,00 13,00 12,00
      10050609 HK1010 10,00 14,00 10,00
      10050611 HK1015 10,00 14,00 15,00
      10050610 HK1012 10,00 14,00 12,00
      10050612 HK1210 12,00 16,00 10,00
      10050613 HK1212 12,00 18,00 12,00
      10173393 HK1216 12,00 18,00 16,00
      10050614 HK1312 13,00 19,00 12,00
      10050615 HK1412 14,00 20,00 12,00
      10050616 HK1512 15,00 21,00 12,00
      10050617 HK1516 15,00 21,00 16,00
      10050618 HK1522-ZW 15,00 21,00 22,00
      10050619 HK1612 16,00 22,00 12,00
      10050620 HK1616 16,00 22,00 16,00
      10039433 HK1622-ZW 16,00 22,00 22,00
      10039434 HK1712 17,00 23,00 12,00
      10039435 HK1812 18,00 24,00 12,00
      10039437 HK1816 18,00 24,00 16,00
      10039439 HK2010 20,00 26,00 10,00
      10039440 HK2012 20,00 26,00 12,00
      10064456 HK2030-ZW 20,00 26,00 30,00
      10039441 HK2016 20,00 26,00 16,00
      10039444 HK2020 20,00 26,00 20,00
      10039448 HK2212 22,00 28,00 12,00
      10039453 HK2220 22,00 28,00 20,00
      10039450 HK2216 22,00 28,00 16,00
      10039447 HK2210 22,00 28,00 10,00
      10064457 HK2538-ZW 25,00 32,00 38,00
      10039455 HK2512 25,00 32,00 12,00
      10039456 HK2516 25,00 32,00 16,00
      10039459 HK2520 25,00 32,00 20,00
      10039462 HK2526 25,00 32,00 26,00
      10039465 HK2816 28,00 35,00 16,00
      10039467 HK2820 28,00 35,00 20,00
      10039473 HK3020 30,00 37,00 20,00
      10039469 HK3012 30,00 37,00 12,00
      10039470 HK3016 30,00 37,00 16,00
      10039475 HK3022 30,00 37,00 22,00
      10039477 HK3026 30,00 37,00 26,00
      10039478 HK3038-ZW 30,00 37,00 38,00
      10039479 HK3220 32,00 39,00 20,00
      10039480 HK3224 32,00 39,00 24,00
      10039481 HK3512 35,00 42,00 12,00
      10039482 HK3516 35,00 42,00 16,00
      10039485 HK3520 35,00 42,00 20,00
      10039487 HK4012 40,00 47,00 12,00
      10039488 HK4016 40,00 47,00 16,00
      10039491 HK4020 40,00 47,00 20,00
      10039496 HK4520 45,00 52,00 20,00
      10039494 HK4516 45,00 52,00 16,00
      10039493 HK4512 45,00 52,00 12,00
      10039501 HK5025 50,00 58,00 25,00
      10039498 HK5020 50,00 58,00 20,00
      10039503 HK5528 55,00 63,00 28,00
      10039502 HK5520 55,00 63,00 20,00
      10039504 HK6012 60,00 68,00 12,00
      10039505 HK6020 60,00 68,00 20,00
      10039506 HK6032 60,00 68,00 32,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • HK..-RS

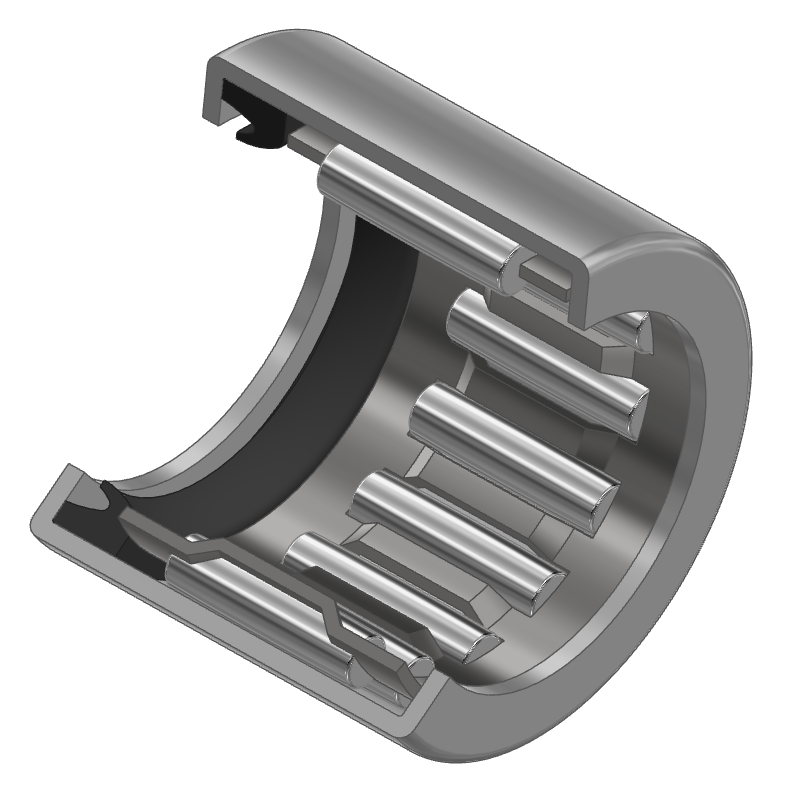

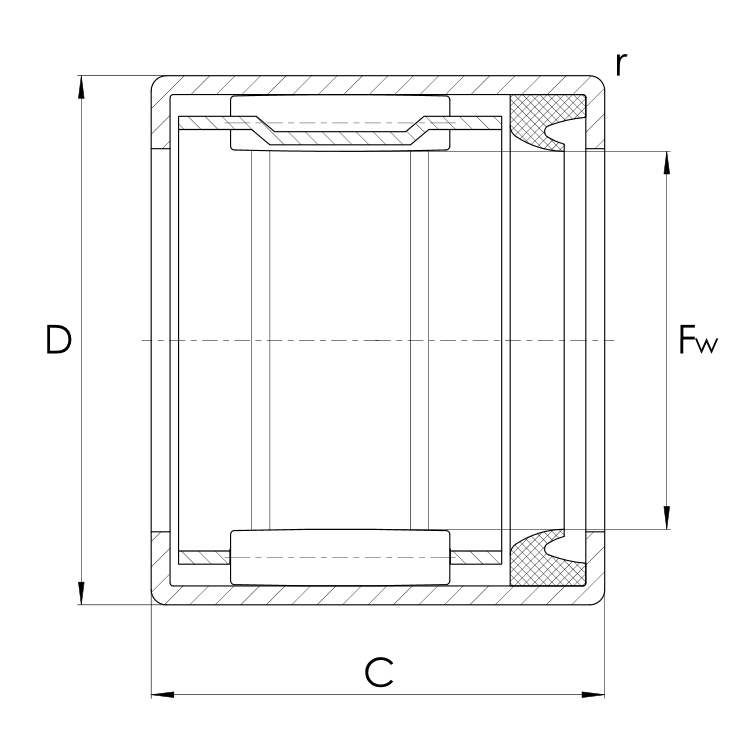

      Nadelhülse HK..-RS, Abmessungen nach DIN 618-1 / ISO 3245

      • Nadelhülse HK..-RS
        Nadelhülse HK..-RS
      • Nadelhülse HK..-RS
        Nadelhülse HK..-RS
        Description Main dimensions Functions
        Fw D C
        mm mm mm
        SKU Description Main dimensions Functions
        Fw D C
        mm mm mm
        10039417 HK0812-RS 8,00 12,00 12,00
        10039415 HK0810-RS 8,00 12,00 10,00
        10039419 HK1012-RS 10,00 14,00 12,00
        10039422 HK1214-RS 12,00 18,00 14,00
        10039424 HK1414-RS 14,00 20,00 14,00
        10039426 HK1514-RS 15,00 21,00 14,00
        10039428 HK1518-RS 15,00 21,00 18,00
        10039430 HK1614-RS 16,00 22,00 14,00
        10039436 HK1814-RS 18,00 24,00 14,00
        10039443 HK2018-RS 20,00 26,00 18,00
        10039449 HK2214-RS 22,00 28,00 14,00
        10039452 HK2218-RS 22,00 28,00 18,00
        10039458 HK2518-RS 25,00 32,00 18,00
        10039466 HK2818-RS 28,00 35,00 18,00
        10039472 HK3018-RS 30,00 37,00 18,00
        10039484 HK3518-RS 35,00 42,00 18,00
        10039490 HK4018-RS 40,00 47,00 18,00
        10039495 HK4518-RS 45,00 52,00 18,00
        10039499 HK5022-RS 50,00 58,00 22,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

      • HK..-2RS

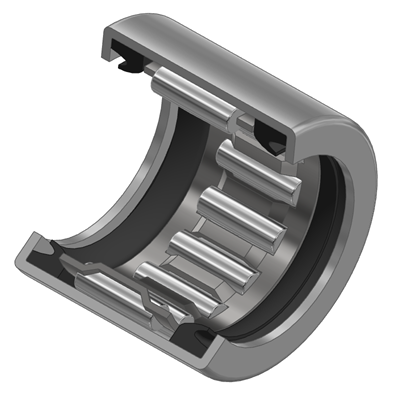

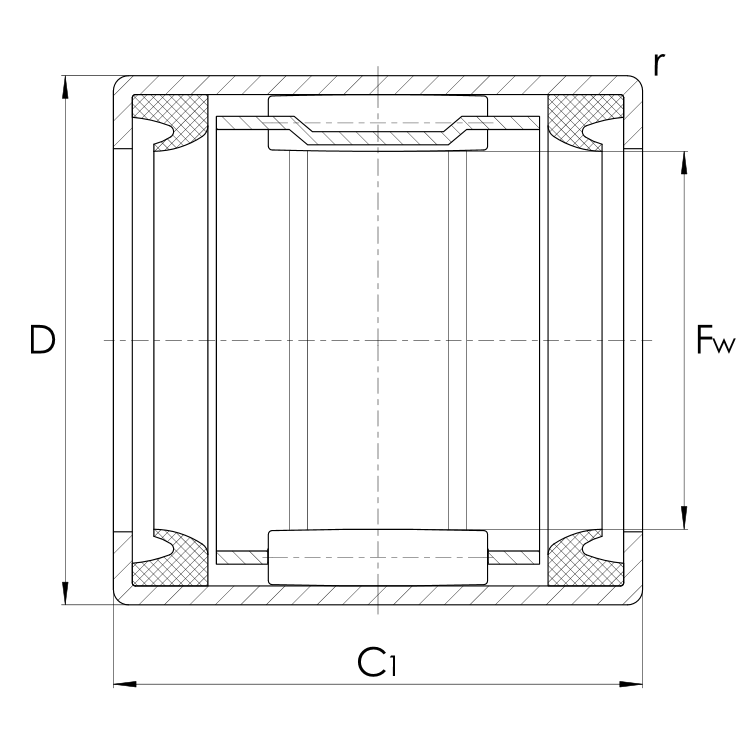

        Nadelhülse HK..-2RS, Abmessungen nach DIN 618-1 / ISO 3245

        • Nadelhülse HK..-2RS
          Nadelhülse HK..-2RS
        • Nadelhülse HK..-2RS
          Nadelhülse HK..-2RS
          Description Main dimensions Functions
          Fw D C
          mm mm mm
          SKU Description Main dimensions Functions
          Fw D C
          mm mm mm
          10039416 HK0812-2RS 8,00 12,00 0
          10039414 HK0810-2RS 8,00 12,00 0
          10173382 HK1010-2RS 10,00 14,00 0
          10039420 HK1014-2RS 10,00 14,00 0
          10039418 HK1012-2RS 10,00 14,00 0
          10039421 HK1214-2RS 12,00 16,00 0
          10039423 HK1216-2RS 12,00 18,00 0
          10039425 HK1416-2RS 14,00 20,00 0
          10039427 HK1516-2RS 15,00 21,00 0
          10039429 HK1520-2RS 15,00 21,00 0
          10039432 HK1620-2RS 16,00 22,00 0
          10039431 HK1616-2RS 16,00 22,00 0
          10039438 HK1816-2RS 18,00 24,00 0
          10039442 HK2016-2RS 20,00 26,00 0
          10039445 HK2020-2RS 20,00 26,00 0
          10039454 HK2220-2RS 22,00 28,00 0
          10039451 HK2216-2RS 22,00 28,00 0
          10039457 HK2516-2RS 25,00 32,00 0
          10039460 HK2520-2RS 25,00 32,00 0
          10039461 HK2524-2RS 25,00 32,00 0
          10039463 HK2530-2RS 25,00 32,00 0
          10039468 HK2820-2RS 28,00 35,00 0
          10039471 HK3016-2RS 30,00 37,00 0
          10039474 HK3020-2RS 30,00 37,00 0
          10039476 HK3024-2RS 30,00 37,00 0
          10039483 HK3516-2RS 35,00 42,00 0
          10039486 HK3520-2RS 35,00 42,00 0
          10039489 HK4016-2RS 40,00 47,00 0
          10039492 HK4020-2RS 40,00 47,00 0
          10039497 HK4520-2RS 45,00 52,00 0
          10039500 HK5024-2RS 50,00 58,00 0
          Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
