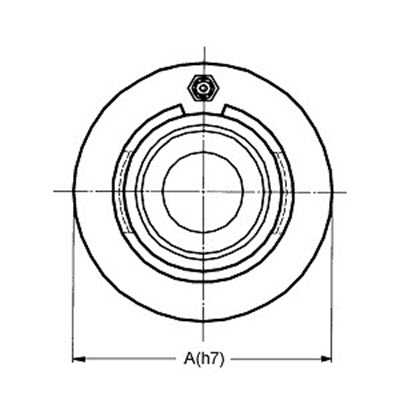

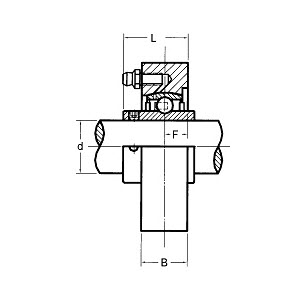

Hülsenlager HLW
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | A | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | A | L | |||
| mm | mm | mm | |||
| 30000785 | HLW20 | 20,00 | 72,00 | 34,50 | |
| 30000786 | HLW25 | 25,00 | 80,00 | 34,50 | |
| 30000787 | HLW30 | 30,00 | 85,00 | 40,20 | |
| 30000788 | HLW35 | 35,00 | 90,00 | 44,40 | |
| 30000789 | HLW40 | 40,00 | 100,00 | 49,70 | |
| 30000790 | HLW45 | 45,00 | 110,00 | 49,70 | |
| 30000791 | HLW50 | 50,00 | 120,00 | 50,20 | |
| 30000792 | HLW55 | 55,00 | 125,00 | 55,40 | |
| 30000793 | HLW60 | 60,00 | 130,00 | 61,10 | |
