231SM-MA

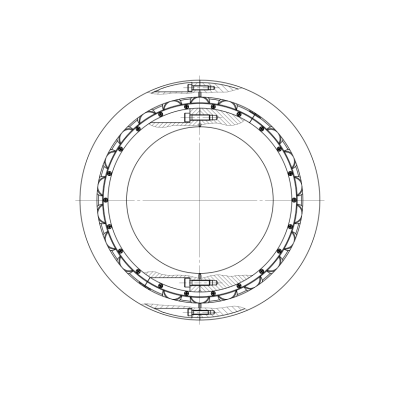

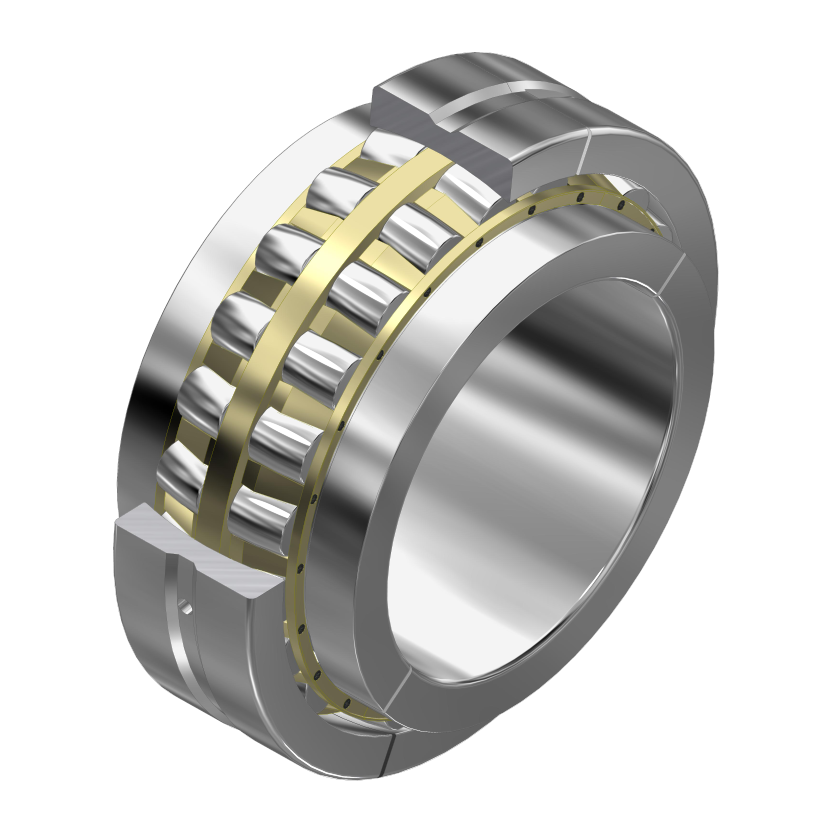

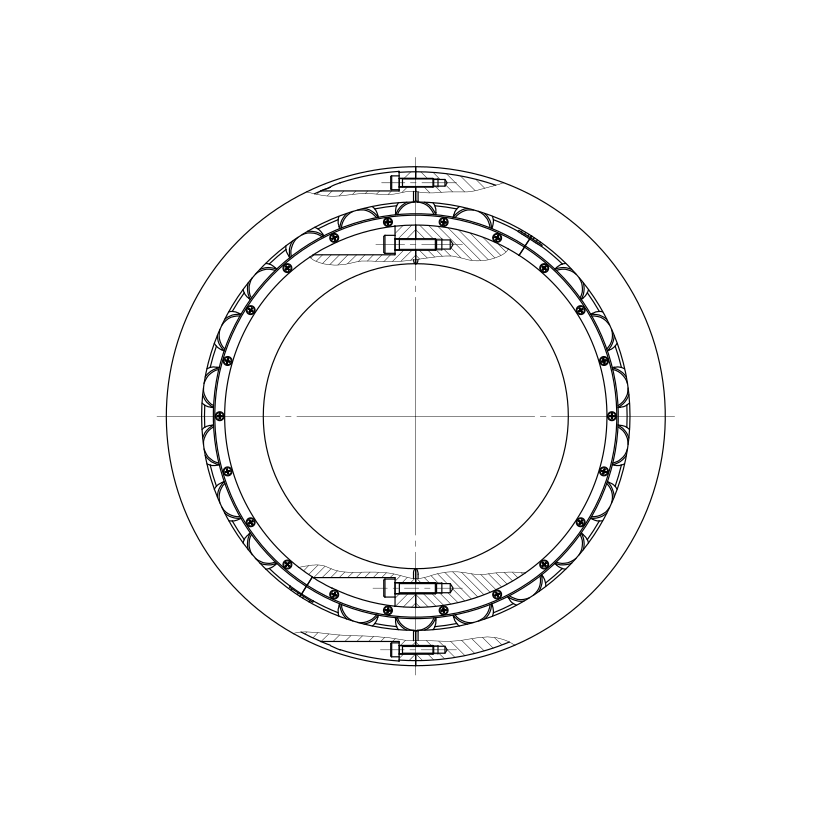

Spherical roller bearing Series 231, Main dimension devaiting DIN 635-2, DIN 616 ISO 15:1998

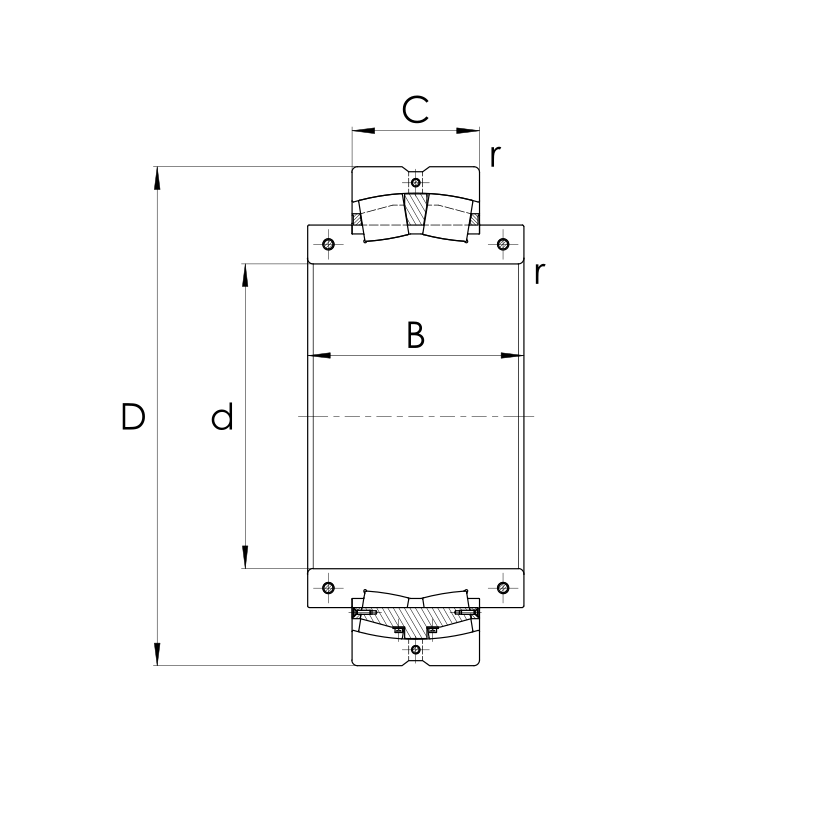

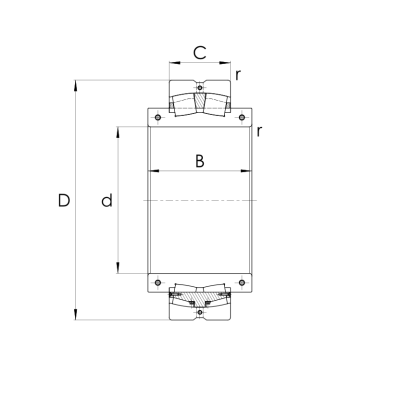

Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10603795 231SM100-MA 100.00 180.00 56.00 10603798 231SM110-MA 110.00 200.00 62.00 10603800 231SM115-MA 115.00 210.00 64.00 10603803 231SM125-MA 125.00 225.00 68.00 10603806 231SM135-MA 135.00 250.00 80.00 10603809 231SM140-MA 140.00 270.00 86.00 10603812 231SM150-MA 150.00 280.00 88.00 10603815 231SM160-MA 160.00 300.00 96.00 10603818 231SM170-MA 170.00 320.00 104.00 10603821 231SM180-MA 180.00 340.00 112.00 10603824 231SM200-MA 200.00 370.00 120.00 10603827 231SM220-MA 220.00 400.00 128.00 10603830 231SM240-MA 240.00 440.00 144.00 10603833 231SM260-MA 260.00 460.00 146.00 10603836 231SM280-MA 280.00 500.00 160.00 10603839 231SM300-MA 300.00 540.00 176.00 10603842 231SM320-MA 320.00 580.00 190.00 10603845 231SM340-MA 340.00 600.00 192.00 10603848 231SM360-MA 360.00 620.00 194.00 10603850 231SM380-MA 380.00 650.00 200.00 10603852 231SM400-MA 400.00 700.00 224.00 10603856 231SM410-MA 410.00 720.00 226.00 10603857 231SM430-MA 430.00 760.00 240.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
230S (Inch)
Spherical roller bearing (divided) Series 231, inch dimensions
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10604374 231S.607 163.510 300.00 96.00 10604375 231S.615 176.210 320.00 104.00 10604376 231S.700 177.800 340.00 112.00 10604377 231S.703 182.560 340.00 112.00 10604378 231S.715 201.610 370.00 120.00 10603910 231S.907 239.710 440.00 144.00 10604379 231S.908 241.300 440.00 144.00 10603912 231S.915 252.410 460.00 146.00 10604380 231S.1000 254.000 460.00 146.00 10604381 231S.1007 265.110 460.00 146.00 10604382 231S.1015 277.810 500.00 160.00 10603916 231S.1100 279.400 500.00 160.00 10603918 231S.1200 304.800 540.00 176.00 10604383 231S.1207 315.910 580.00 190.00 10604384 231S.1208 317.500 580.00 190.00 10603920 231S.1300 330.200 600.00 192.00 10604385 231S.1308 342.900 600.00 192.00 10603922 231S.1400 355.600 620.00 194.00 10603924 231S.1500 381.000 650.00 200.00 10603926 231S.1600 406.400 720.00 226.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
This may also interest you
Catalog
Currently, there isn't a catalog for Spherical roller bearing (divided) available. Please use our online datasheet.
Service Bulletin
There are no documents for Spherical roller bearing (divided) published, yet. Please contact your personal sales representative if you have further questions.
