7602

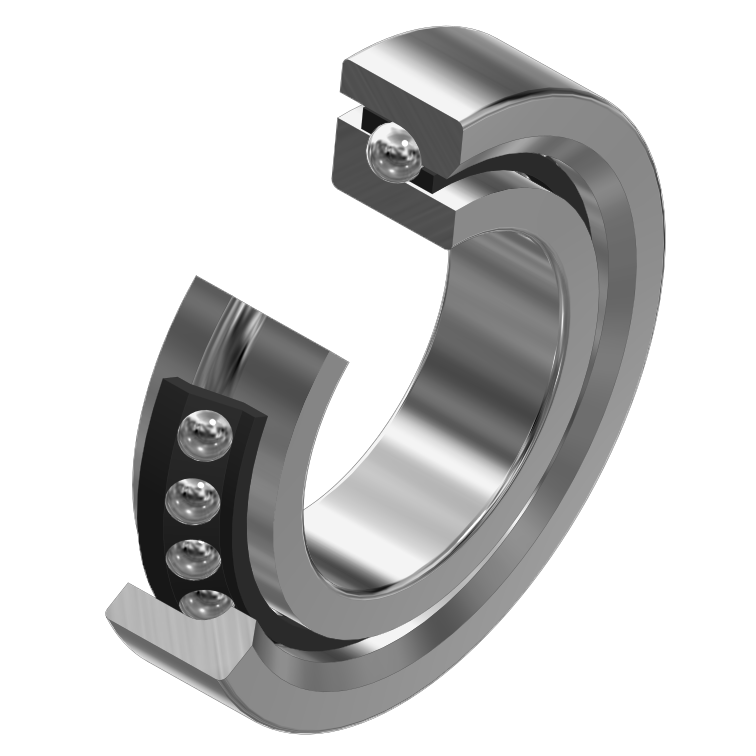

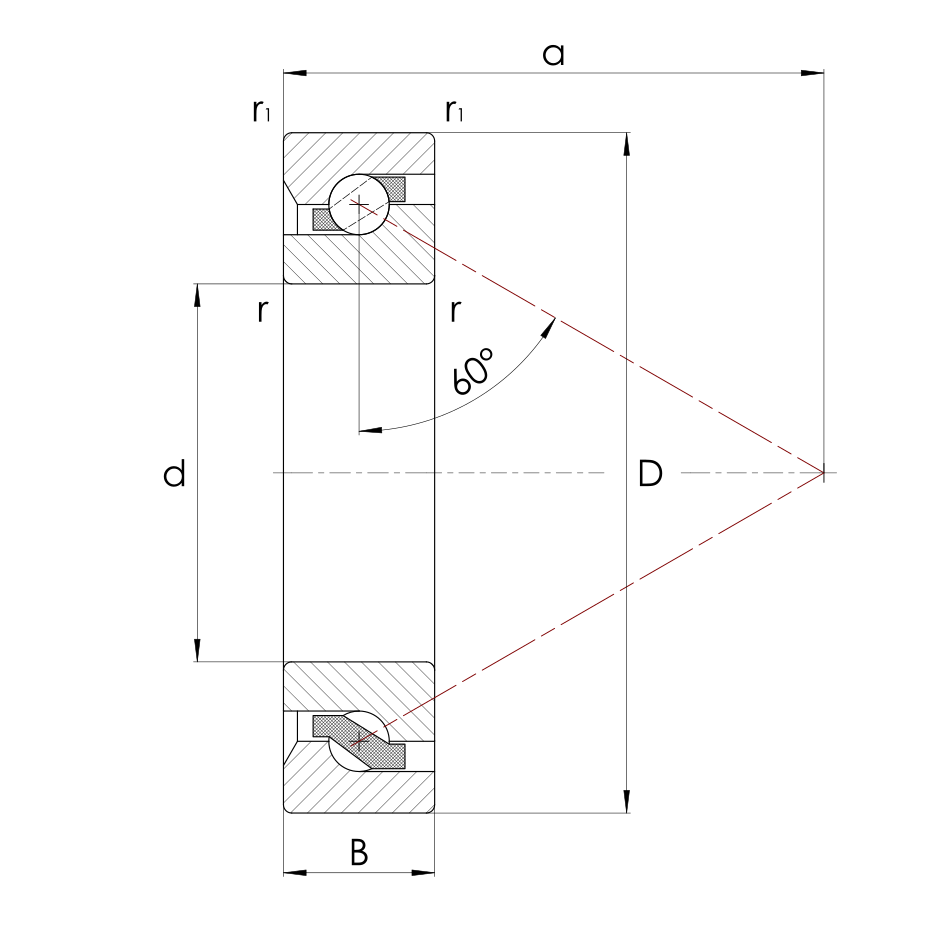

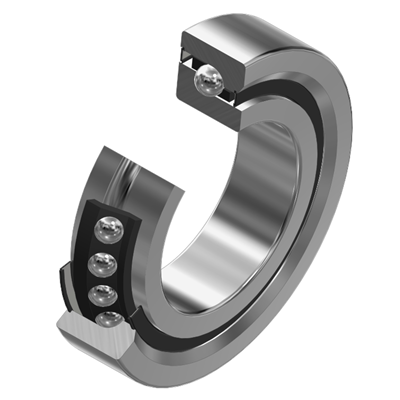

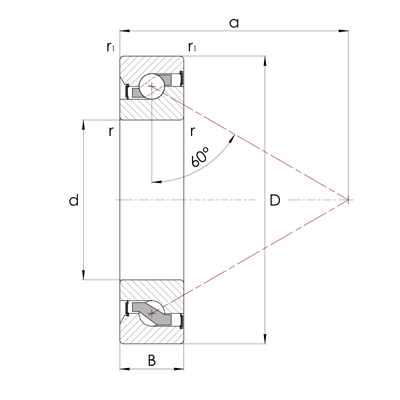

Axial angular contact ball bearing 7602
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10146684 7602012-TVP 12.00 32.00 10.00 10146685 7602015-TVP 15.00 35.00 11.00 10146686 7602017-TVP 17.00 40.00 12.00 10146687 7602020-TVP 20.00 47.00 14.00 10146688 7602025-TVP 25.00 52.00 15.00 10146689 7602030-TVP 30.00 62.00 16.00 10146690 7602035-TVP 35.00 72.00 17.00 10146691 7602040-TVP 40.00 80.00 18.00 10146692 7602045-TVP 45.00 85.00 19.00 10146693 7602050-TVP 50.00 90.00 20.00 10146694 7602055-TVP 55.00 100.00 21.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
7603
Axial angular contact ball bearing 7603
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10171021 7603020-TVP 20.00 52.00 15.00 10171022 7603025-TVP 25.00 62.00 17.00 10171023 7603030-TVP 30.00 72.00 19.00 10171024 7603035-TVP 35.00 80.00 21.00 10171025 7603040-TVP 40.00 90.00 23.00 10171026 7603045-TVP 45.00 100.00 25.00 10171027 7603050-TVP 50.00 110.00 27.00 10171028 7603055-TVP 55.00 120.00 29.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
