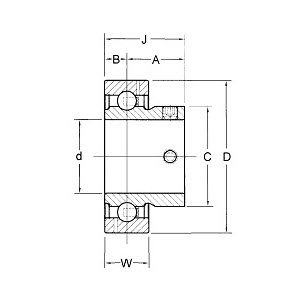

Insert bearing SB 200, Ball bearing insert SB 200
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | (A (h7)) | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | (A (h7)) | L | |||
| mm | mm | mm | |||
| 30000901 | SB201 | 12.00 | 40.00 | 22.00 | |
| 30000902 | SB202 | 15.00 | 40.00 | 22.00 | |
| 30000903 | SB203 | 17.00 | 40.00 | 22.00 | |
| 30000904 | SB204 | 20.00 | 47.00 | 25.00 | |
| 30000905 | SB205 | 25.00 | 52.00 | 27.00 | |
| 30000906 | SB206 | 30.00 | 62.00 | 30.00 | |
| 30000907 | SB207 | 35.00 | 72.00 | 32.00 | |
| 30000908 | SB208 | 40.00 | 80.00 | 34.00 | |
| 30000909 | SB209 | 45.00 | 85.00 | 38.00 | |
| 30000910 | SB210 | 50.00 | 90.00 | 43.50 | |
| 30000911 | SB211 | 55.00 | 100.00 | 45.30 | |
| 30000912 | SB212 | 60.00 | 110.00 | 53.70 | |
