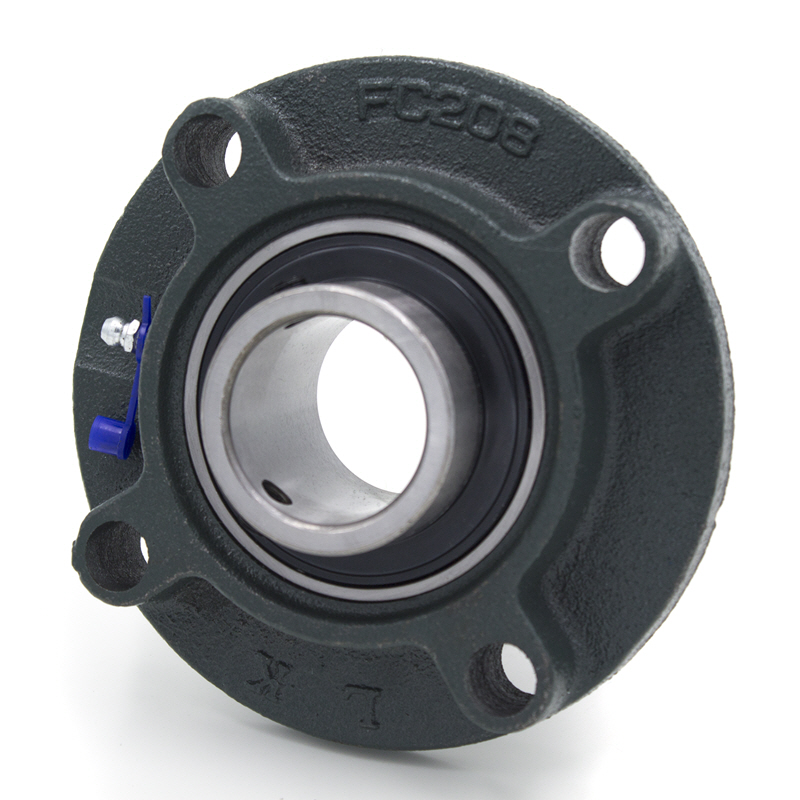

Flanschlagereinheit UKFC 200
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | H3 | L | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | H3 | L | |||
| mm | mm | mm | |||
| 10147304 | UKFC205+H2305 | 20,00 | 70,00 | 115,00 | |
| 10147305 | UKFC206+H2306 | 25,00 | 80,00 | 125,00 | |
| 10147306 | UKFC207+H2307 | 30,00 | 90,00 | 135,00 | |
| 10147307 | UKFC208+H2308 | 35,00 | 100,00 | 145,00 | |
| 10147308 | UKFC209+H2309 | 40,00 | 105,00 | 160,00 | |
| 10147309 | UKFC210+H2310 | 45,00 | 110,00 | 165,00 | |
| 10147310 | UKFC211+H2311 | 50,00 | 125,00 | 185,00 | |
| 10147311 | UKFC212+H2312 | 55,00 | 135,00 | 195,00 | |
| 10147312 | UKFC213+H2313 | 60,00 | 145,00 | 205,00 | |
| 10147313 | UKFC215+H2315 | 65,00 | 160,00 | 220,00 | |
| 10147314 | UKFC216+H2316 | 70,00 | 170,00 | 240,00 | |
| 10147315 | UKFC217+H2317 | 75,00 | 180,00 | 250,00 | |
| 10147316 | UKFC218+H2318 | 80,00 | 190,00 | 265,00 | |
