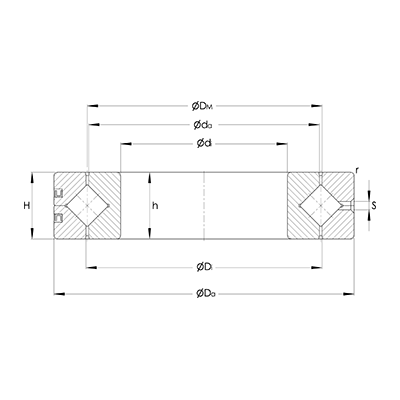

Crossed roller bearing SX
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| di | Da | H | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| di | Da | H | |||
| mm | mm | mm | |||
| 10144732 | SX011814 | 70.00 | 90.00 | 10.00 | |
| 10144733 | SX011818 | 90.00 | 115.00 | 13.00 | |
| 10144734 | SX011820 | 100.00 | 125.00 | 13.00 | |
| 10144735 | SX011824 | 120.00 | 150.00 | 16.00 | |
| 10144736 | SX011828 | 140.00 | 175.00 | 18.00 | |
| 10144737 | SX011832 | 160.00 | 200.00 | 20.00 | |
| 10144738 | SX011836 | 180.00 | 225.00 | 22.00 | |
| 10144739 | SX011840 | 200.00 | 250.00 | 24.00 | |
| 10144740 | SX011848 | 240.00 | 300.00 | 28.00 | |
| 10144741 | SX011860 | 300.00 | 380.00 | 38.00 | |
| 10144742 | SX011868 | 340.00 | 420.00 | 38.00 | |
| 10144743 | SX011880 | 400.00 | 500.00 | 46.00 | |
| 10144744 | SX0118/500 | 500.00 | 620.00 | 56.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
